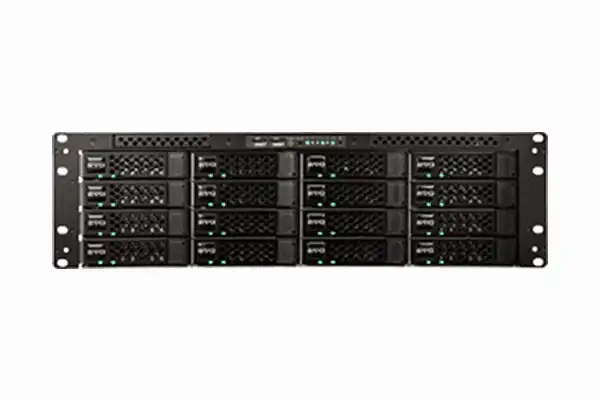

Studio Network Solutions EVO 16TB 16-Bay NAS Server (4 x 4TB) - 16BASE4X4TB-15A

Product Overview

The Studio Network Solutions EVO 16TB 16-Bay NAS Server (4 x 4TB) is the entry-level configuration of the EVO 16 platform, shipping with four 4TB drives installed in a 16-bay 4U rack-mount chassis for 16TB of raw shared storage. Designed for post-production teams and broadcast facilities getting started with professional shared media storage, this SNS EVO shared storage server provides access to the full EVO 16 feature set — software suite, networking, and expansion path — at the lowest initial capacity point in the product line. The 12 remaining open bays offer substantial in-place upgrade headroom, and the system is built on the same platform as the fully-loaded configurations. As a 16-bay NAS server for video editing, this is a purpose-built shared storage platform rather than a repurposed general-purpose NAS.

Product Description

The SNS EVO 16-Bay 4 x 4TB configuration is the most accessible entry point into the EVO 16 platform, offering 16TB of raw capacity across four drives in a chassis designed to hold sixteen. With 12 bays open from day one, this SNS EVO NAS server gives teams the full upgrade path of the EVO 16 line — drives can be added to open bays without replacing the system or migrating data, and up to four external expansion units can eventually scale the total system to 80 drives and 2.4PB raw. The system runs on SNS’s custom Linux EVO OS and ships with the complete EVO Suite: ShareBrowser MAM for media asset management, Slingshot for workflow automation and file delivery, and Nomad for remote access — all licensed for unlimited users with no per-seat fees. This multi-user shared storage platform connects to the facility LAN via dual on-board 10GbE ports, with upgrade options to 25GbE or 100GbE. RAID 5 and RAID 6 are supported, and a spare drive is included. For teams that are new to SNS or testing the EVO platform before scaling up, this configuration provides a full-fidelity SNS EVO experience at the lowest entry cost. Enterprise features including Active Directory, LDAP integration, and an open REST API are all included. Verified NLE compatibility covers Adobe Premiere Pro, After Effects, DaVinci Resolve, Final Cut Pro, Avid Media Composer, Nuke, Blender, and Pro Tools — making this a genuine video editing shared storage server for professional media workflows from day one.

Key Features

• 4 x 4TB Drive Configuration — Ships with four 4TB drives (16TB raw); 12 open bays provide extensive in-place expansion capacity.
• 12 Open Bays for Future Drives — The largest available upgrade headroom in the EVO 16 line without any chassis replacement.
• Dual 10GbE On-Board Networking — Two integrated 10GbE ports; expandable to 25GbE or 100GbE via additional adapters.
• EVO Suite Included (Unlimited Users) — ShareBrowser MAM, Slingshot, and Nomad bundled at no per-seat cost.
• RAID 5 and RAID 6 Support — Full RAID protection options available as drives are added; includes one spare drive.
• Expandable to 2.4PB — Fill all 16 bays and add up to four 16-bay external expansion units to reach 80 total drives.
• Redundant 1300W Power Supply — Three 650W modules in a fault-tolerant configuration; 455W typical / 924W peak.
• AD/LDAP Integration — Active Directory and LDAP support included for enterprise user management.
• Open REST API — Supports integration with automation systems, custom workflows, and third-party MAM platforms.
• 4U Rack-Mount Form Factor — Standard chassis; mounting rails included for 25.75″ to 32.25″ rack depths.

Typical Applications

• Post-production studio deploying shared storage for the first time
• Broadcast facility establishing a dedicated shared media storage platform
• Film and television team evaluating the EVO platform before scaling
• Education media department with smaller team and phased build-out plans
• Corporate AV team beginning centralized video asset management

Technical Specifications

Frequently Asked Questions

Q: Why choose a 16-bay chassis with only 4 drives installed?

Starting with fewer drives in a 16-bay chassis means you are buying into the full EVO 16 platform at the lowest initial cost. When your storage needs grow, you add drives to the 12 open bays rather than replacing the system entirely — which is both less disruptive and more cost-effective over time.

Q: How many additional drives can I add?

There are 12 open bays in the chassis ready for additional drives. Beyond that, up to four external 16-bay expansion units can bring the total system to 80 drives and 2.4PB raw.

Q: Is RAID available with only 4 drives?

Yes. RAID 5 and RAID 6 are supported. With four drives, RAID 5 provides one-drive fault tolerance. A spare drive is also included. Adding more drives expands both usable capacity and RAID options.

Q: What NLEs work with this system?

Adobe Premiere Pro, After Effects, DaVinci Resolve, Final Cut Pro, Avid Media Composer, Nuke, Blender, and Pro Tools are all verified compatible with the EVO platform.

Q: Is the EVO Suite included with this base configuration?

Yes. ShareBrowser MAM, Slingshot, and Nomad are included with unlimited user licensing on every EVO 16 configuration, including this entry-level model.

Q: Can editors access this system remotely?

Yes. The included Nomad application supports secure remote access to media stored on the EVO, enabling hybrid workflows where editors access centralized storage from off-site locations.

Q: What network infrastructure is needed to connect this server?

The system ships with dual 10GbE on-board ports. A 10GbE network switch is recommended for multi-user shared workflows. The system also supports 25GbE and 100GbE adapters for higher-bandwidth environments.

Q: What warranty and support options are available?

Contact Creation Networks for current warranty terms and SNS support plan options. We can recommend the right support tier based on your facility’s production schedule and uptime requirements.
