Eaton PDU3XEVSRHWB – 3-Phase Switched PDU, Hardwire, 0U

Product Overview

The Eaton PDU3XEVSRHWB is a 3-phase switched rack PDU built on Eaton's LX Platform, designed for data center and server room racks that need remote outlet switching and hardwired 380-415V input. This 0U vertical PDU is a strong fit for commercial AV/IT environments that require individual outlet on/off/reboot control alongside real-time load monitoring. Integrators specifying high-density racks with hardwired feeds will find this switched PDU well suited to centralized power management across six separately breakered load banks.

Product Description

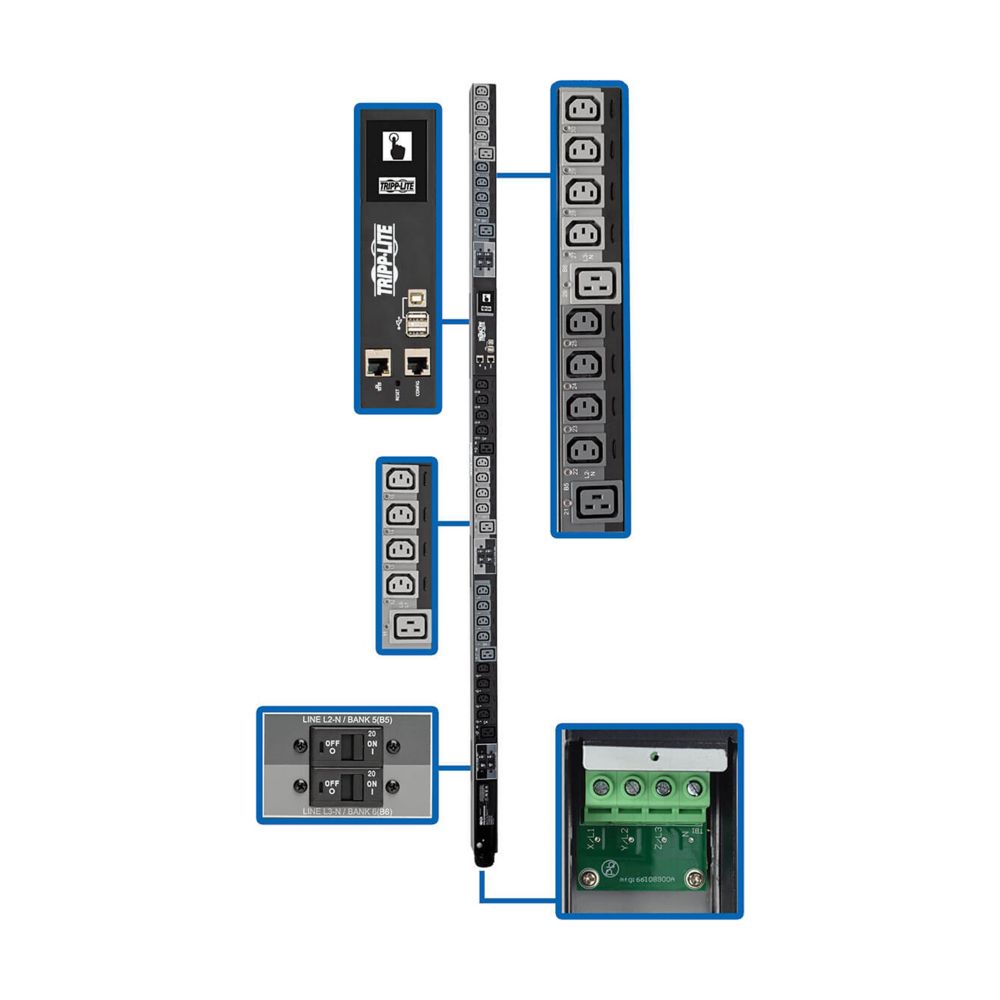

This 3-phase switched PDU delivers up to 28.8kW of input power capacity at 415/240V (27.7kW at 400/230V, 26.3kW at 380/220V), distributed to 24 C13 and 6 C19 outlets split across six individually breakered load banks. Each outlet can be switched remotely, letting IT staff power-cycle individual servers or AV processors without a site visit — a common requirement in unmanned server rooms and remote equipment closets.

A color touchscreen LCD reports phase, load-bank, and outlet-level current and power in real time, and the built-in 10/100 Mbps network interface supports remote access alongside a QR code for quick mobile configuration. Optional environmental sensors extend monitoring to temperature and humidity at the rack. The hardwire input (no plug) suits permanent installations feeding directly from a 380-415V 3-phase branch circuit, which is typical in larger data center and colocation deployments rather than smaller server rooms using plug-in PDUs. With a slim 2.17 x 2.52 inch footprint and 70-inch vertical length, this switched PDU mounts in the side channel of most open and enclosed racks without consuming usable rack unit (U) space, keeping full front access for servers, switches, and AV equipment.

Key Features

• 3-Phase Switched Outlets — Provides remote on/off/reboot control of individual outlets for AV/IT equipment without a site visit.
• Six Breakered Load Banks — Splits 24 C13 and 6 C19 outlets into six load banks for fault isolation and easier load balancing.
• Color Touchscreen LCD — Displays phase, bank, and outlet-level current and power data directly on the unit.
• Hardwire 380-415V Input — Uses a direct-wired 3-phase input suited to permanent data center and colocation installs.
• 0U Vertical Mounting — Installs at the side of the rack, preserving front rack unit space.
• Network Management — Includes a 10/100 Mbps network interface with QR code mobile access for remote configuration.
• Environmental Sensor Support — Extends rack-level monitoring with optional temperature/humidity sensors.
