Eaton PDU3XEVSR6G30A – 3-Phase Switched Rack PDU

Product Overview

The Eaton PDU3XEVSR6G30A is a 3-phase switched rack PDU built for data centers and server rooms that need per-outlet power control in a 0U vertical footprint. As a managed rack PDU with individual outlet switching, it lets IT and facilities teams remotely cycle power to hung equipment, schedule outlet-level reboots, and monitor load without leaving the network operations center. This 3-phase rack PDU is a strong fit for colocation cabinets and high-density server racks that need remote power management alongside physical outlet security.

Product Description

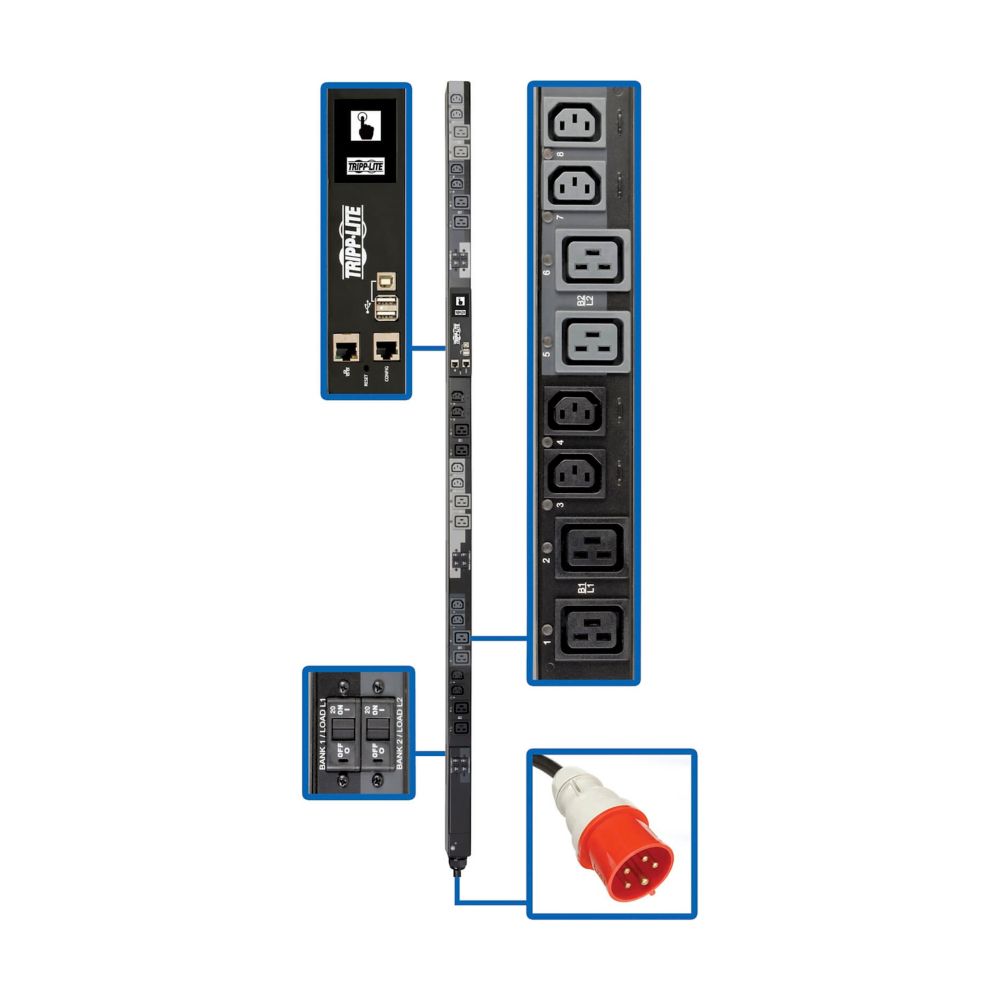

Built on Eaton's Java-free LX Platform interface, the PDU3XEVSR6G30A pairs a 3-phase IEC 60309 30A input with 24 outlets, 12 C13 and 12 C19, rated for 17.3kW of total output capacity. The 0U vertical mounting profile keeps the PDU out of usable rack unit space, which matters in dense server cabinets where every rack unit is committed to compute or networking gear. Refer to the product photo for the vertical outlet layout and mounting bracket points along the PDU body.

Because outlets are individually switched, integrators can power-cycle a single hung server or network appliance without shutting down the rest of the rack, a common requirement in remote or lights-out data center environments. The PDU is managed through a built-in HTML5 interface reachable over a 10/100 auto-sensing Ethernet port, with SNMP v1/v2c/v3, SSH, Telnet, and HTTP/HTTPS support for integration into existing network monitoring stacks. Eaton's PowerAlert Device Manager (PADM) software adds centralized fleet-wide visibility for sites running multiple PDUs.

The 6-foot input cord and hardwire-style IEC 60309 connection suit fixed 3-phase circuits typical of data center power whips. This model works well for IT managers standardizing on a single managed rack PDU platform across mixed single- and 3-phase racks.

Key Features

• Individual Outlet Switching — Remotely power-cycle or turn off single outlets without affecting other connected equipment.
• 3-Phase 17.3kW Output — Delivers substantial power capacity for dense server and network racks from a single PDU.
• 0U Vertical Mounting — Installs along the rack rail without consuming usable U space.
• 24 Mixed Outlets — 12 C13 and 12 C19 receptacles accommodate servers, switches, and higher-draw equipment on one PDU.
• Java-Free LX Platform Interface — Browser-based management dashboard with no Java plug-in dependency.
• SNMP and Remote Protocol Support — Integrates with SNMP v1/v2c/v3, SSH, Telnet, and HTTPS-based monitoring tools.
• PowerAlert Device Manager Compatible — Centralized management across multiple PDUs from one console.
