Eaton PDU3XEVSR6G20 – 3-Phase Switched Rack PDU
Product Overview
The Eaton PDU3XEVSR6G20 is a 3-phase switched rack PDU built for data centers and server rooms that need outlet-level switching alongside a color touchscreen display for at-a-glance status checks. Rated at 11.5kW across 30 outlets, this switched PDU suits mid-density server and network racks where administrators want to remotely reboot equipment without walking the floor. Its combination of remote switching and on-unit environmental readouts makes it a practical choice for colocation cabinets and enterprise server rooms running 208-240V 3-phase power.
Product Description

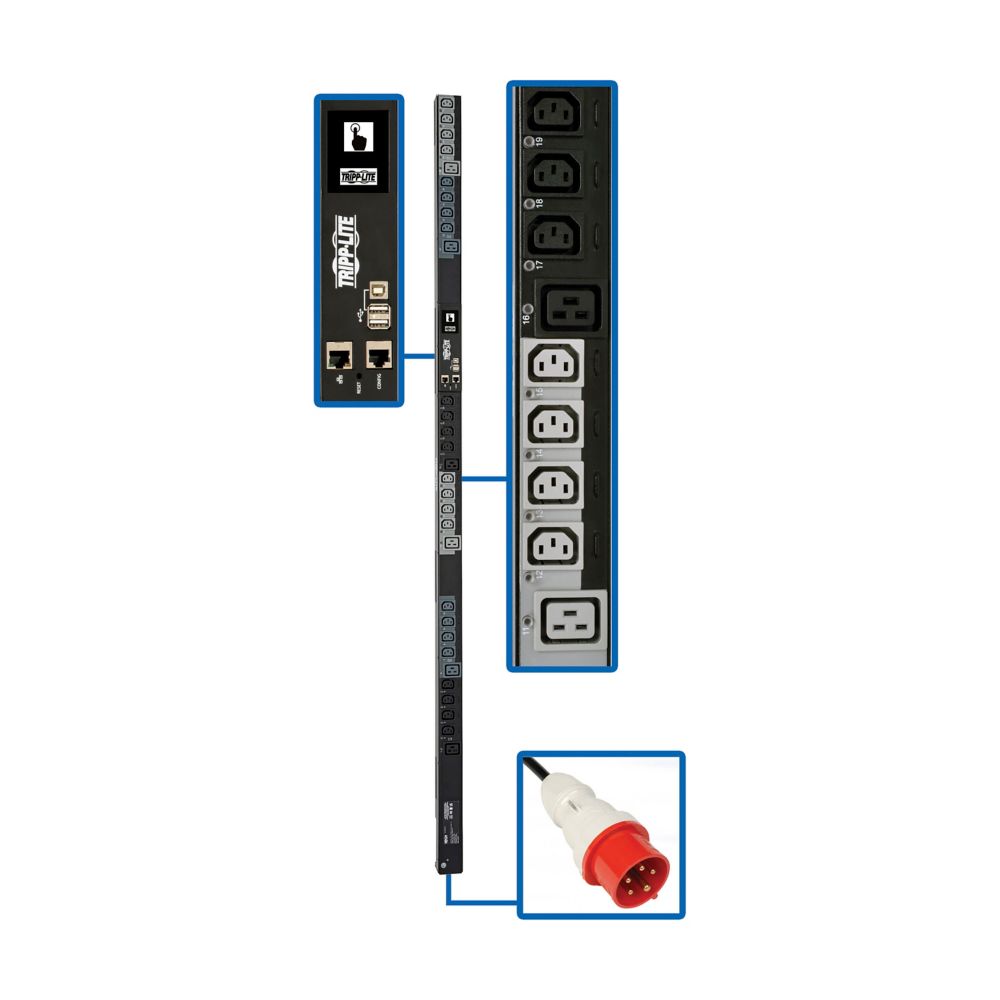

The PDU3XEVSR6G20 accepts 208-240V 3-phase input at 16A through an IEC-60309 16/20A red (3P+N+E) plug, with a 6 ft. cord for close-proximity power connections in the rack row. Output is delivered across 30 total outlets — 24 IEC 60320 C13 and 6 C19 receptacles — supporting a typical mix of standard servers and higher-draw network switches or storage units. The 0U vertical chassis stands roughly 70 inches tall and mounts along the rear rack rail, keeping front-facing rack space open for equipment.
This switched PDU ships with a pre-installed GbE-capable WEBCARDLX running the latest version of PADM20 software, giving administrators remote power monitoring and control from a standard network connection. A color touchscreen LCD on the unit itself displays current levels, environmental data, and network information directly at the rack, which is useful for quick on-site checks without logging into the management software. Rated for operation between 32°F and 122°F (0°C to 50°C), the PDU3XEVSR6G20 is built for standard data center and server room environmental conditions.
Key Features
- 3-Phase Switched Outlets — Remotely power-cycles equipment across 30 total outlets.
- 11.5kW Capacity — Suits mid-density server and network racks on 208-240V 3-phase power.
- Color Touchscreen LCD — Displays current levels, environmental data, and network info directly on the unit.
- Pre-Installed WEBCARDLX — Provides GbE-capable network card running PADM20 for remote management.
- Mixed C13/C19 Outlets — Covers varied equipment needs with 24 C13 and 6 C19 receptacles.
- 0U Vertical Mount — Preserves front rack unit space through rear-rail installation.
- Wide Operating Range — Rated 32°F to 122°F for standard data center environments.
Technical Specifications
| Input Voltage | 208-240V, 3-phase |
| Input Current | 16A |
| Input Plug | IEC-60309 16/20A RED (3P+N+E) |
| Cord Length | 6 ft. |
| Max Output Power | 11.5 kW |
| Total Outlets | 30 (24x IEC 60320 C13, 6x C19) |
| Form Factor | 0U, vertical |
| Dimensions | 70" H x 2.17" W x 2.86" D |
| Weight | 14.48 lbs |
| Management | Pre-installed GbE WEBCARDLX with PADM20; color touchscreen LCD |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
