Eaton PDU3EVSR1L1530 – 3-Phase IsoBreaker Managed PDU, 8.6kW

Product Overview

The Eaton PDU3EVSR1L1530 is a 3-phase managed rack PDU with IsoBreaker technology, delivering 8.6kW to 36 outlets for commercial server room and data center racks. This managed PDU is built for facilities running NEMA L15-30P 3-phase feeds that need individually controllable outlets plus per-outlet current and power monitoring. Its IsoBreaker design isolates a faulted outlet rather than tripping an entire load bank, reducing unplanned downtime in mixed-equipment AV/IT racks.

Product Description

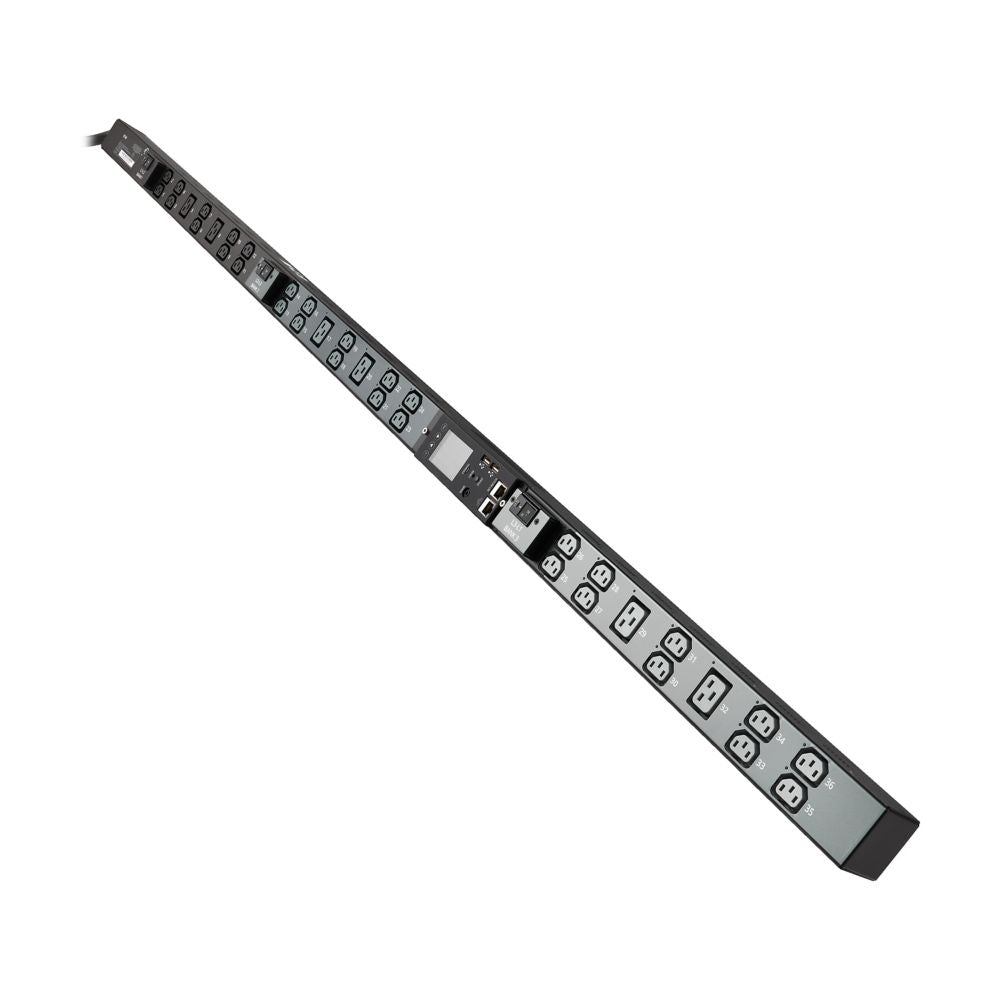

This 3-phase managed PDU accepts a 200-240V input via NEMA L15-30P plug (10-foot 10AWG cord) and outputs 8.6kW to 30 C13 and 6 C19 outlets — 36 total — enough capacity for a densely populated server or network rack. Each outlet is individually controllable through the PDU's remote interface, letting IT staff power-cycle a single device without affecting neighboring equipment. Reference the product photo for the 0U vertical chassis and touchscreen placement when planning rack elevation.

A color touchscreen LCD displays real-time power data per phase, load bank, and outlet, with measurement accuracy rated at plus/minus 1% for current, voltage, and power. The PDU's IsoBreaker technology is a key differentiator versus standard breakered PDUs: instead of a whole bank going offline on overload, only the affected outlet is isolated, keeping the rest of the rack powered. A built-in gigabit network interface with PowerAlert Device Manager supports remote monitoring and alerting, and the unit also captures THDv waveform data for voltage distortion analysis — useful for diagnosing power quality issues in commercial AV and IT environments.

At 70 inches tall with a slim 2.17 x 3.11 inch footprint, this PDU mounts vertically in the side channel of most open-frame and enclosed server racks, keeping front rack unit space available for servers, switches, and AV gear.

Key Features

• IsoBreaker Technology — Isolates a single overloaded outlet instead of tripping the entire load bank, reducing downtime.
• 36 Outlets: 30 C13 + 6 C19 — High outlet density suited to fully populated server and network racks.
• Individually Controllable Outlets — Remote power-cycling of single devices without affecting the rest of the rack.
• Color Touchscreen LCD — On-unit display of per-phase, per-bank, and per-outlet power data.
• Gigabit Network Interface — PowerAlert Device Manager integration for remote monitoring and alerting.
• ±1% Measurement Accuracy — High-precision current, voltage, and power readings for capacity planning.
• THDv Waveform Capture — Captures voltage distortion data to help diagnose power quality issues.
• 0U Vertical Mount — Side-channel rack installation preserves front rack unit space.
