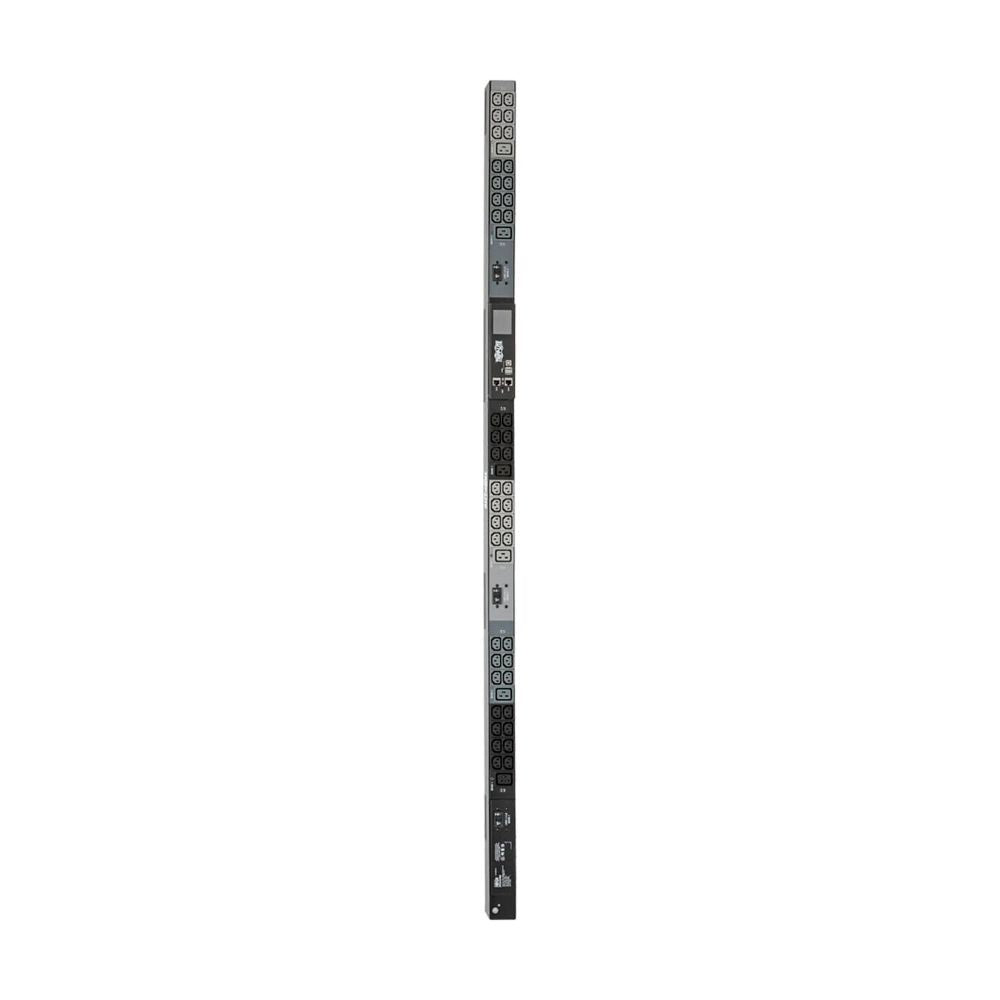

Eaton PDU3EVN6L2130B – 10kW 3-Phase Metered Rack PDU

Product Overview

The Eaton PDU3EVN6L2130B is a 0U vertical, 3-phase metered rack PDU for data center and server room cabinets that need dependable, monitored power distribution across a large outlet count. As a metered rack PDU, it reports real-time load at the PDU level so IT and facilities staff can track amperage draw and avoid overloading a 3-phase branch circuit. The 48-outlet layout suits colocation cabinets, network closets, and dense server racks where a commercial-grade PDU with high outlet capacity is required. Integrators specifying a 3-phase PDU with an L21-30P input for a data center rack will find this model fits standard 0U vertical rail mounting.

Product Description

The PDU3EVN6L2130B distributes power from a single 3-phase, 200-240V circuit rated at 24A to 48 output receptacles, giving integrators a high-density power distribution option for racks packed with servers, switches, and storage. It is rated for up to 10kW of load and terminates in a NEMA L21-30P input plug on a 6 ft. cord. The output side provides 42 IEC C13 and 6 IEC C19 receptacles, covering standard servers alongside higher-draw switches or blade enclosures in the same cabinet. A built-in LX platform touchscreen LCD displays PDU-level metering data, including load and phase information, without a separate monitoring appliance. This makes the unit a practical fit for data center racks, server rooms, and AV/IT equipment cabinets that need dependable 3-phase power distribution with basic visibility into consumption. Because it is metered rather than switched, it suits environments where circuit load visibility matters more than remote outlet-level control. The 0U vertical form factor keeps rack unit space free for compute and networking gear.

Key Features

• 3-Phase, 10kW Capacity — Distributes up to 10kW across 48 outlets from a single 3-phase circuit, supporting dense rack loads.

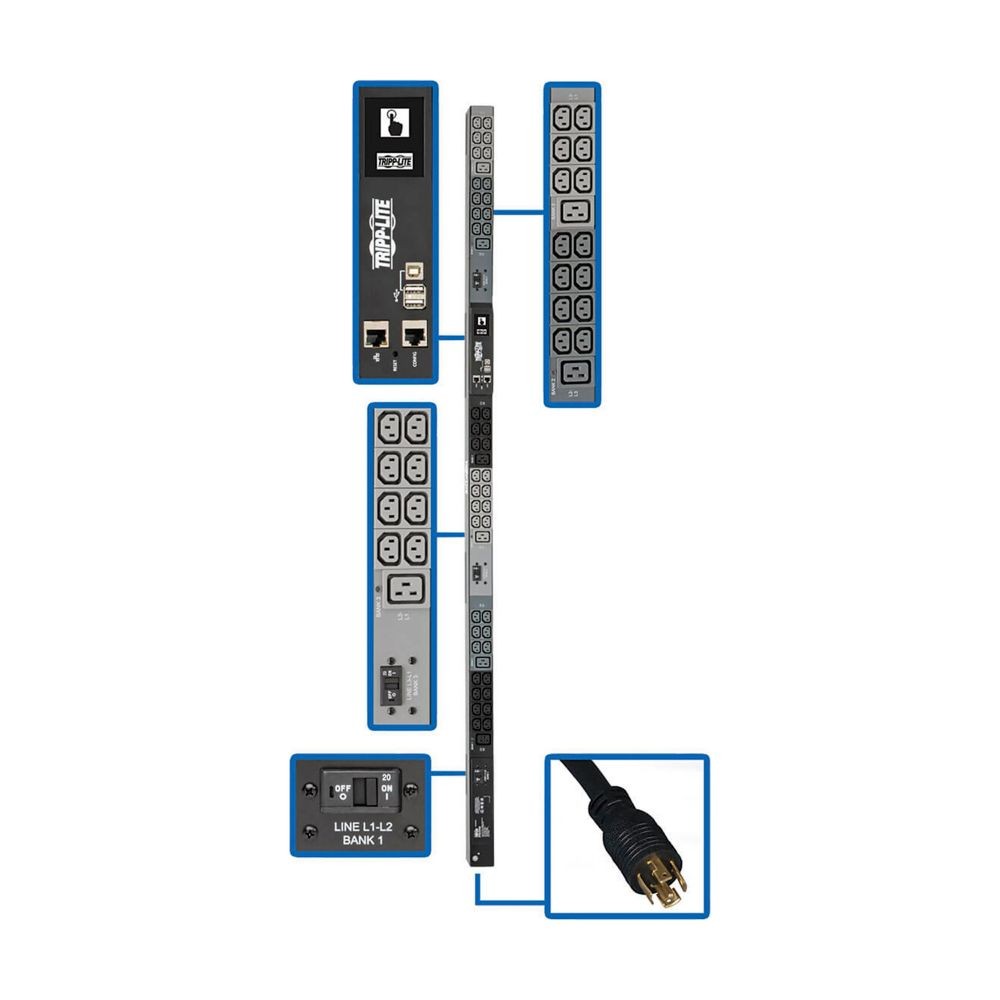

• 48 Total Outlets (42 C13 / 6 C19) — Mixed receptacle count accommodates standard servers and higher-draw C19-corded equipment in one PDU.
• 0U Vertical Mounting — Mounts along the rear rail of the rack, preserving usable rack unit space for equipment.

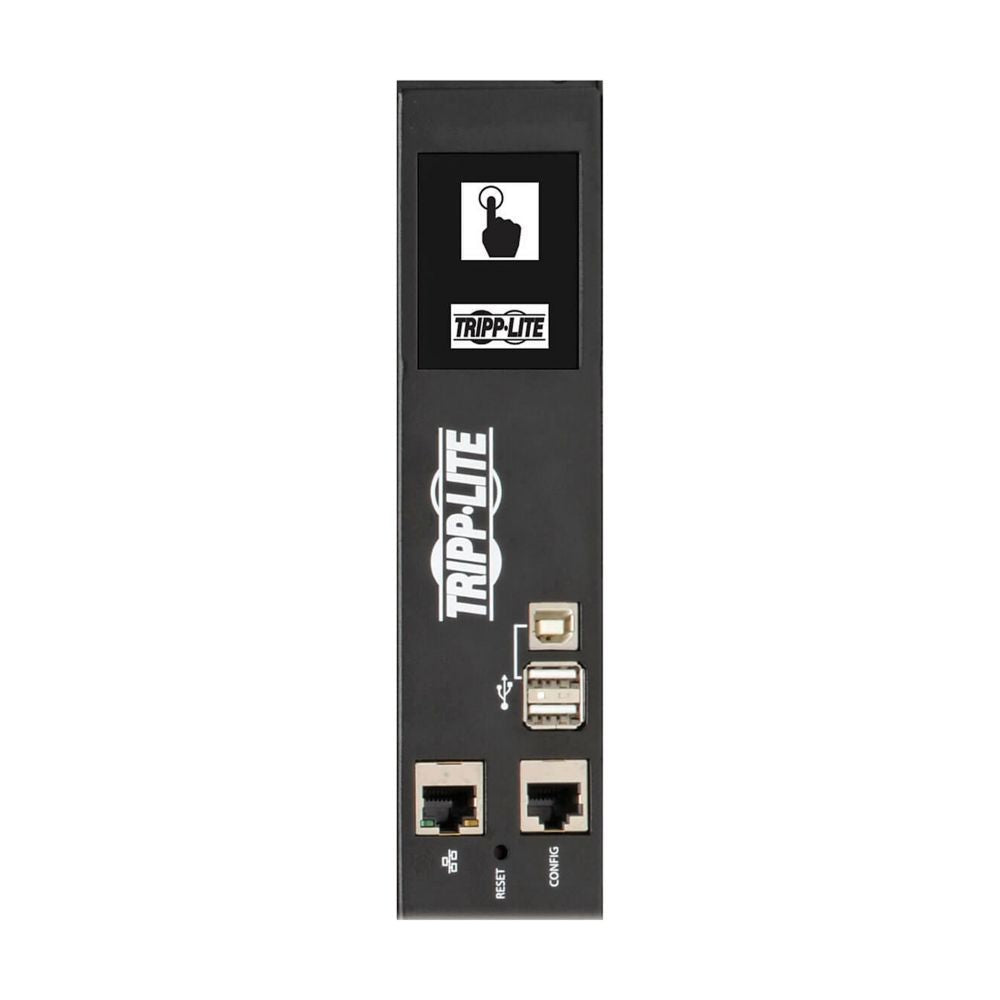

• Metered Input with LX Touchscreen LCD — Local display reports load and phase data for real-time visibility into circuit draw.
• NEMA L21-30P Input, 6 ft. Cord — Standard locking plug for straightforward connection to a 3-phase 200-240V branch circuit.
• Commercial-Grade Build — Designed for continuous-duty operation in data center and server room environments.
