Eaton PDU3EVN6G60C – 18.7kW 3-Phase Monitored PDU

Product Overview

The Eaton PDU3EVN6G60C is a 0U vertical, 3-phase monitored rack PDU rated for up to 18.7kW, built for high-density data center racks and server rooms with heavy compute loads. It uses Eaton's LX platform with a touchscreen LCD for local visibility into phase currents and load. Integrators specifying a high-capacity 3-phase PDU with an IEC 60309 input for data center deployments will find this model sized for large server and network racks. It suits colocation, enterprise data center, and high-density server room installations.

Product Description

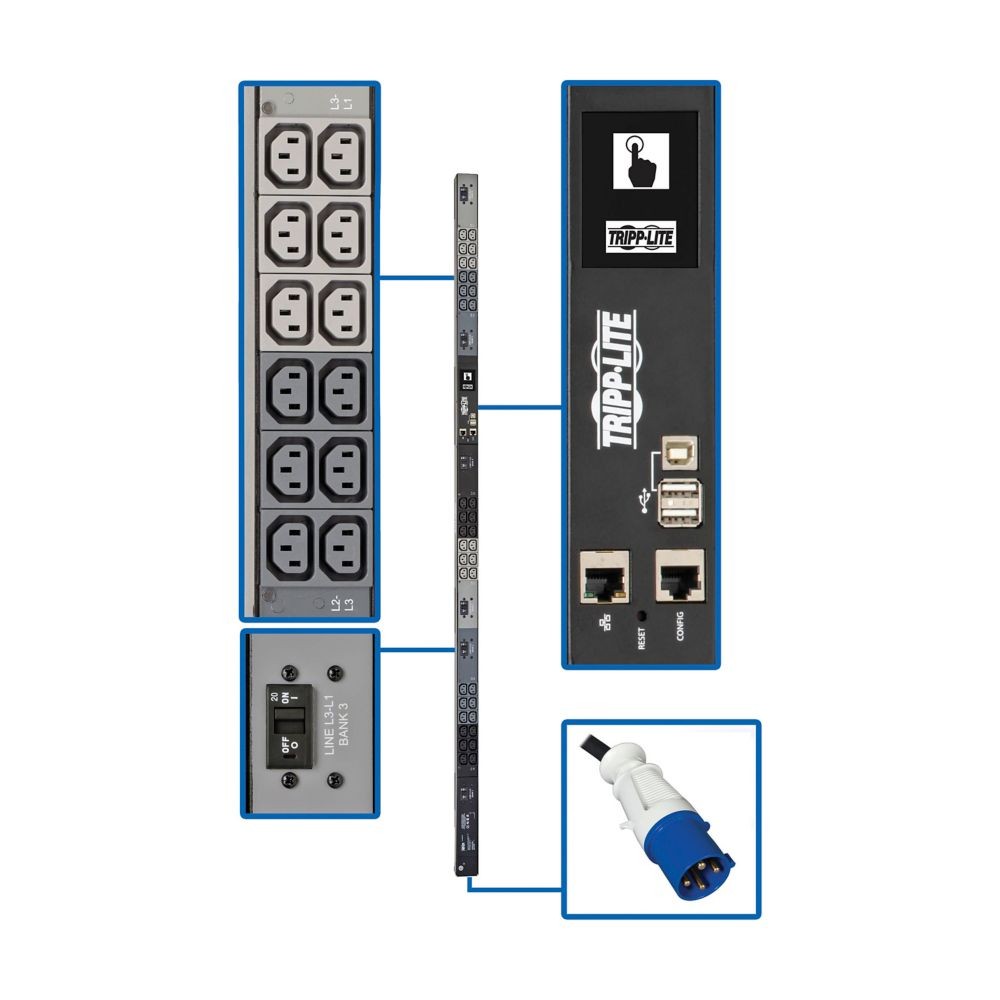

The PDU3EVN6G60C draws from a 3-phase 200-240V circuit through an IEC-60309 60A blue (3P+E) input plug on a 6 ft. cord, delivering up to 18.7kW at 240V across 36 IEC C13 outlets. Output is limited to 26A per phase and 20A per breakered bank, with a 12A maximum per individual C13 outlet, giving rack designers clear headroom guidelines when balancing server and network loads. The onboard WEBCARDLX network management card paired with PowerAlert Device Manager firmware provides a color touchscreen LCD that reports IP address, phase currents, and load bank data at the rack, with billing-grade ±1% current, voltage, and power measurement accuracy. A QR code on the display enables quick mobile access to PDU status, and the unit supports Eaton's EnviroSense2 environmental sensor modules for temperature and humidity monitoring in the same rack. The 0U vertical, 70-inch form factor mounts along the rear rail, keeping all 36 outlets accessible without consuming horizontal rack space. This PDU suits data center racks, server rooms, and large AV/IT equipment racks running dense, all-C13 device loads such as blade servers, 1U servers, and network switches.

Key Features

• 18.7kW 3-Phase Capacity — Supports high-density racks drawing significant continuous load across 36 outlets.
• 36x C13 Outlets — Uniform receptacle count suited to racks of standard servers and switches.

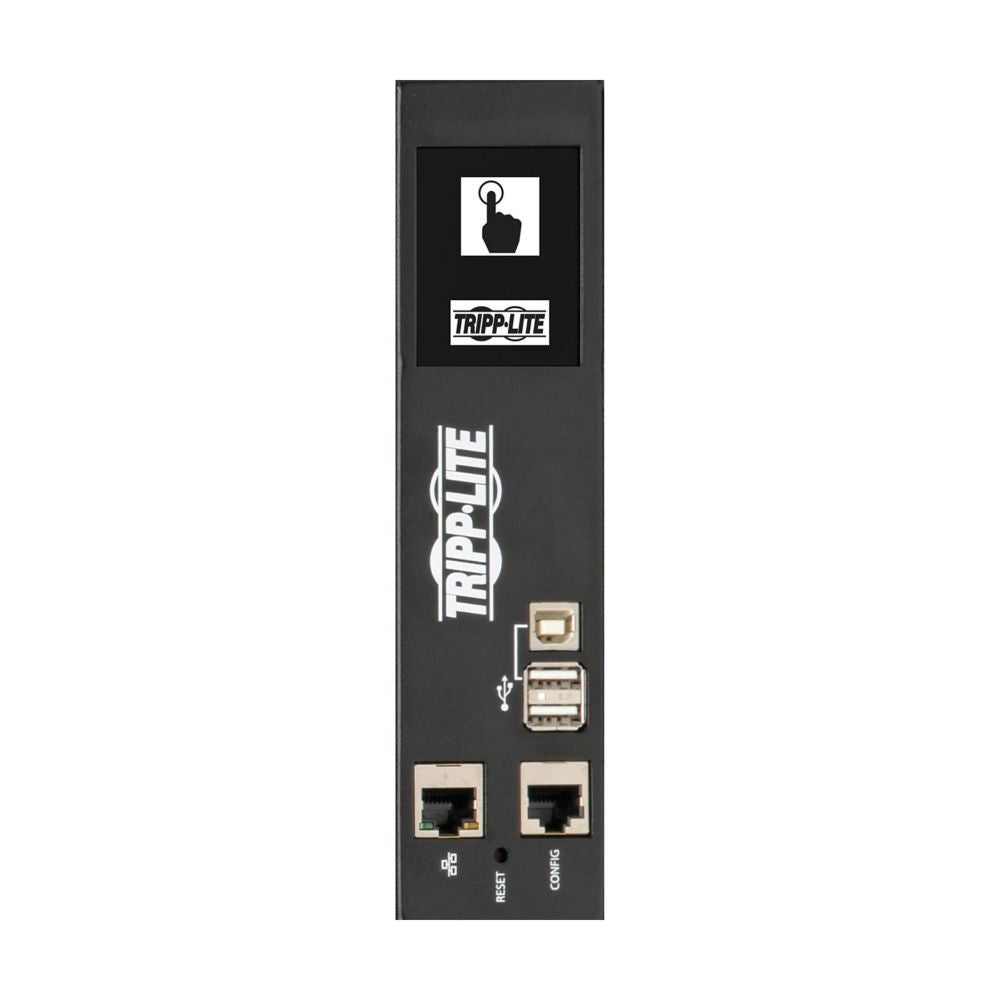

• Color Touchscreen LCD (WEBCARDLX/PADM) — Local display of IP address, phase currents, and load data for at-rack visibility.
• Billing-Grade ±1% Metering Accuracy — Precise current, voltage, and power measurement for capacity planning and chargeback.
• IEC-60309 60A Blue Input — Industrial-grade locking input plug rated for high-amperage 3-phase circuits.
• EnviroSense2 Compatible — Supports optional environmental sensor modules for rack temperature/humidity monitoring.
• QR Code Mobile Access — Quick access to PDU status data from a mobile device.

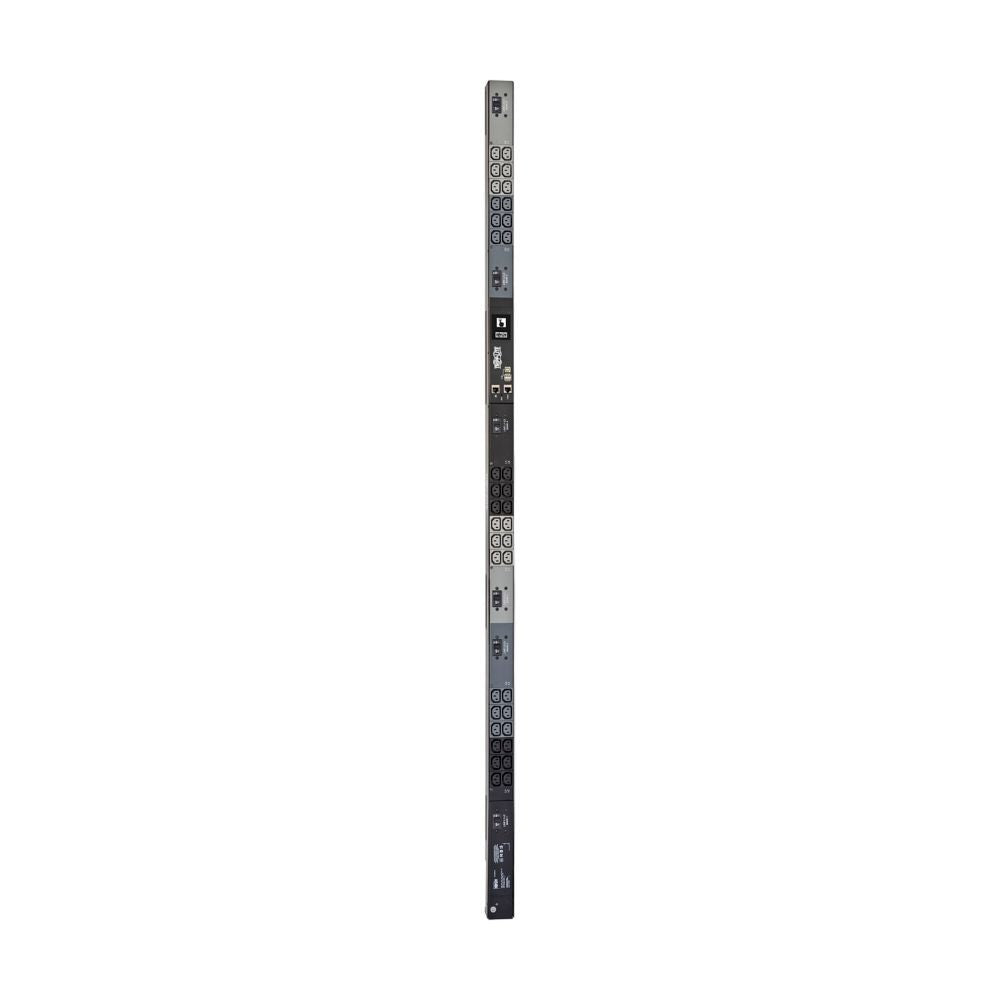

• 0U Vertical Mounting — Preserves rack unit space for compute and network equipment.
