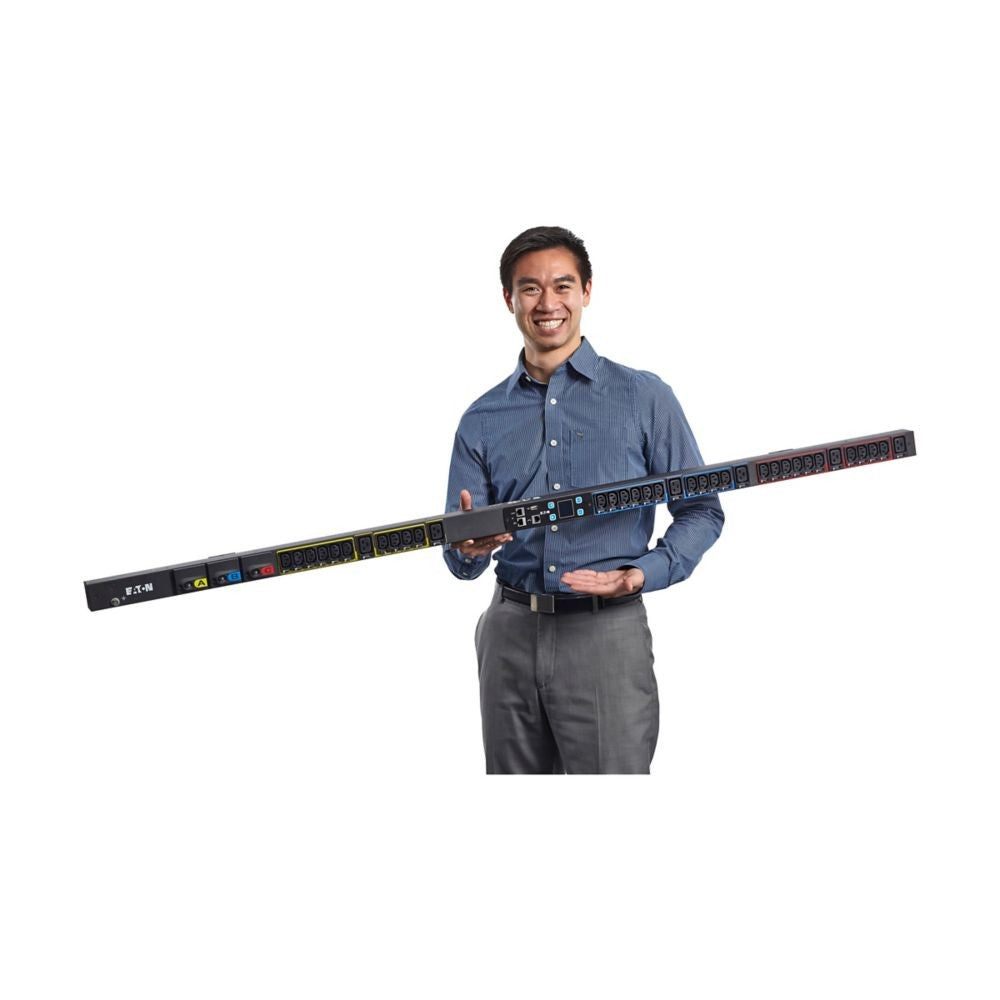

Eaton EMI314-10 – 8.64kW 3-Phase Metered Input Rack PDU, 0U

Product Overview

The Eaton EMI314-10 is a 3-phase metered input rack PDU designed for server rooms and network racks that need reliable power distribution with input-level monitoring. Rated for 120/208V at 24A, this metered rack PDU delivers up to 8.64kW through 42 IEC C13 outlets, making it well suited for dense server cabinets and AV/IT equipment racks. It is a solid option for integrators and IT managers who need a 0U metered input rack PDU without the added cost of per-outlet switching.

Product Description

The EMI314-10 mounts in the 0U vertical rail space of a standard equipment rack, keeping all 1U/2U rack space available for servers, switches, and AV gear. Power comes in through an L21-30P three-phase plug on a 10 ft. cord, then distributes across 42 IEC C13 outlets — a configuration well suited for racks loaded with multiple low-draw devices such as switches, servers, KVMs, and AV control processors. Built-in input metering reports real-time load data via an Ethernet network interface and RS-232 serial connection, giving IT and facilities staff a way to monitor circuit-level power consumption and plan capacity before adding new equipment to a rack. Because this is a metered-input (not outlet-metered or switched) PDU, it reports overall PDU draw rather than per-outlet data — an appropriate tradeoff for racks where the priority is knowing total load rather than controlling or measuring individual devices. The rugged commercial-grade design carries a 3-year warranty and UL listing, and the unit operates across a wide 0° to 60°C temperature range, suitable for data centers, network closets, and less-conditioned AV equipment rooms alike.

Key Features

• 3-Phase Metered Input — Provides input-level voltage, current, and power monitoring over Ethernet or RS-232.
• 42 IEC C13 Outlets — High outlet density suited to racks with many lower-draw servers, switches, or AV devices.
• 0U Vertical Form Factor — Mounts along the rear rail, preserving horizontal rack space for active equipment.
• 120/208V, 24A Input — Matches standard 3-phase data center and server room circuits.
• L21-30P Input Plug, 10 ft. Cord — Compatible with common 3-phase receptacles used in commercial IT installations.
• RS-232 and Ethernet Connectivity — Supports both local serial monitoring and remote network-based power monitoring.
• 3-Year Manufacturer Warranty — Backed by Eaton standard commercial PDU warranty coverage.
