Eaton EMAU19-15 – 3-Phase Managed 2U Rack PDU, 24 Outlets

Product Overview

The Eaton EMAU19-15 is a horizontal 2U managed rack PDU built for server rooms and data centers where administrators want outlet-level monitoring in a compact, standard rack-mount form factor rather than a 0U vertical unit. Running on 120/208V 3-phase power, this managed PDU is designed for racks with 24 connected devices needing standard C13 power connections. It fits well in smaller server rooms, network closets, and edge deployments where horizontal PDU mounting is preferred over rear-rail vertical units.

Product Description

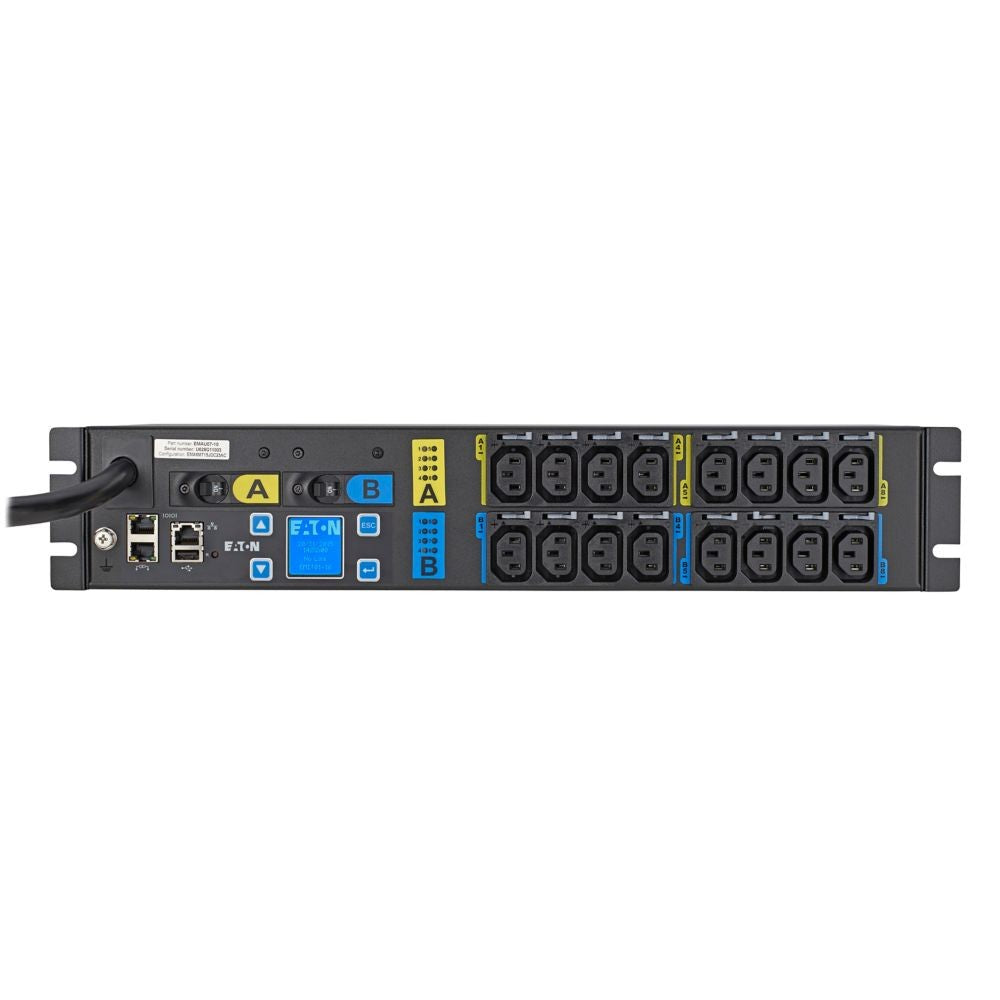

The EMAU19-15 mounts as a 2U horizontal rack PDU, occupying two rack units at the front or rear of a standard 19-inch rack rather than running vertically along the rear posts. It accepts 120/208V 3-phase input at 24A through a NEMA L21-30P plug, with a generous 15 ft. power cord that gives installers flexibility when routing power from an overhead whip or floor-mounted receptacle to the rack. Output is provided through 24 IEC 60320 C13 outlets, suited to standard servers, switches, and other C13-compatible IT equipment in small to mid-size server rooms.

As a managed PDU, the EMAU19-15 provides remote monitoring and outlet control, giving IT staff visibility into power draw and the ability to cycle individual outlets without physically accessing the rack. This is useful in remote or unstaffed locations, such as branch office server rooms or edge computing sites, where a technician cannot always reach the equipment quickly. The 2U horizontal design is also a practical option for open-frame racks or shallow enclosures where 0U vertical PDUs are not a good fit, giving integrators a compact, standard-rack-space alternative for smaller network closet and edge deployments.

Key Features

• 2U Horizontal Mount — Fits standard 19-inch racks without requiring rear-rail vertical PDU space.
• 3-Phase 120/208V Input — Balances load across three phases for consistent power delivery.
• 24 C13 Outlets — Uses standard IEC 60320 C13 receptacles for common server and network equipment.
• 15 ft. Power Cord — Provides extended cord length for flexible routing to overhead or floor power sources.
• Remote Monitoring & Control — Managed PDU functionality allows outlet cycling without a site visit.
• NEMA L21-30P Input Plug — Uses a standard locking connector for a reliable 3-phase power connection.

Technical Specifications
