Eaton EMAPFXXTA3A3A3L – 3-Phase HDX Rack PDU G4
Product Overview
The Eaton EMAPFXXTA3A3A3L is a 3-phase managed rack PDU from Eaton's HDX Rack PDU G4 platform, built for high-density data center racks that need both heavy power capacity and outlet-level remote control. Rated at up to 35kW, this managed PDU is sized for enterprise server rooms and colocation cabinets running dense compute or network gear on a shared 3-phase circuit. Buyers researching a high-density 3-phase rack PDU with a Gigabit Network Module and environmental monitoring will find this model built for that exact use case.
Product Description

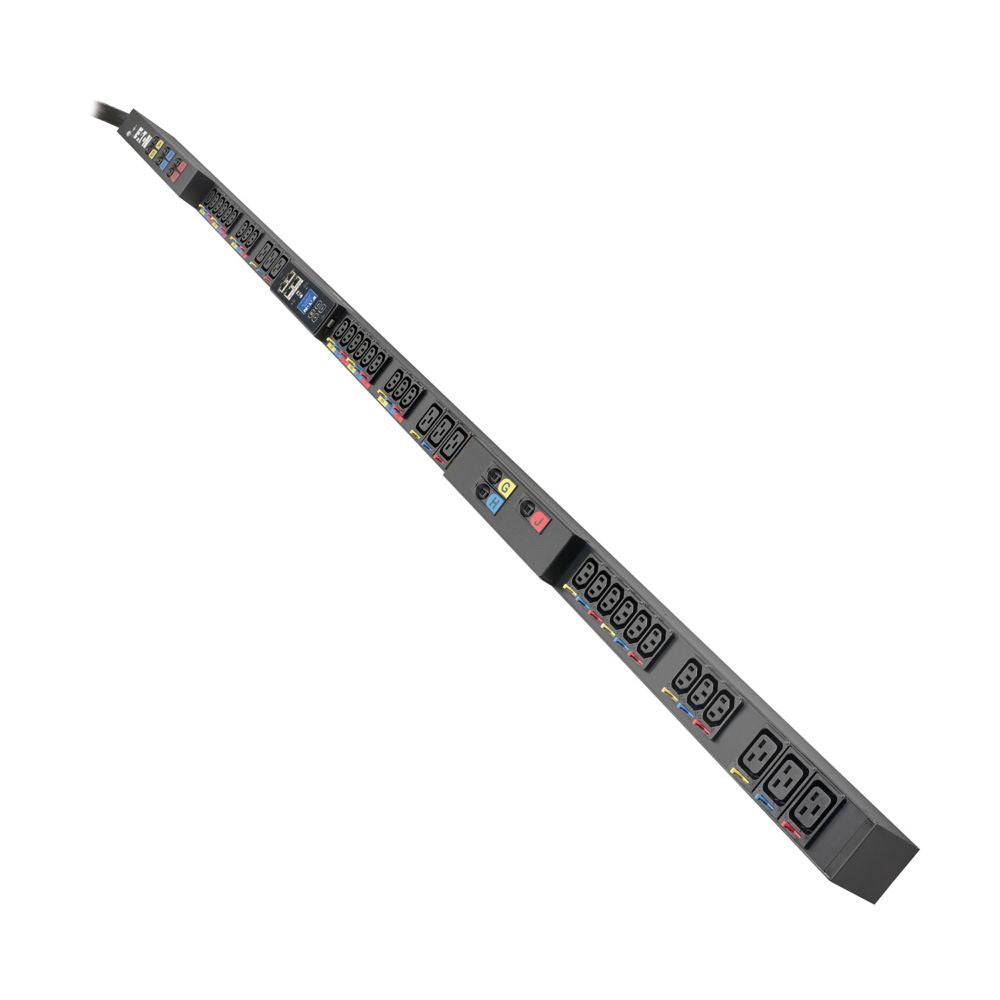

Part of Eaton's current-generation HDX Rack PDU G4 lineup, the EMAPFXXTA3A3A3L accepts a 240/415V 3-phase input (with 220/380V and 230/400V configuration support) through a 560P6W plug on a 10-foot cord, and distributes power across 36 outlets, 27 C13 and 9 C19 receptacles, protected by nine 20A low-profile circuit breakers. Check the product photo to see the aluminum vertical chassis and outlet-bank layout before finalizing rack cable routing.
The PDU is managed through Eaton's Gigabit Network Module, giving IT teams SNMP- and MQTT-based integration with Eaton's Brightlayer data center software, alongside an onboard LCD pixel display for outlet-level current, voltage, and power readings accurate to plus or minus 1 percent. Up to three optional environmental probes can be added for temperature and humidity monitoring at the rack, a common requirement in server rooms without dedicated building management systems.
The lightweight aluminum construction keeps the 0U vertical PDU manageable at install despite its 84-inch length, and factory-installed shoulder-style mounting buttons speed rack installation over drilling or bracket fabrication.
Key Features
- 35kW 3-Phase Capacity — Supports high-density racks with substantial combined equipment load.
- 36 Mixed Outlets — 27 C13 and 9 C19 receptacles cover servers, switches, and higher-draw devices on one PDU.
- Gigabit Network Module — Provides SNMP and MQTT connectivity for remote monitoring through Eaton Brightlayer software.
- ±1% Metering Accuracy — Outlet-level current, voltage, and power readings for precise load tracking.
- Optional Environmental Probes — Supports up to three add-on sensors for temperature and humidity monitoring.
- Aluminum 0U Construction — Lightweight vertical chassis keeps handling manageable at nearly 7 feet in length.
- Factory-Installed Mounting Buttons — Speeds rack installation without additional brackets or hardware.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 240/415V 3-phase (also supports 220/380V, 230/400V) |
| Input Current | 60A maximum |
| Input Plug | 560P6W, 10 ft cord |
| Output Capacity | 35kW (34.56 kVA); 48A max per output phase |
| Outlets | 36 total: 27x C13, 9x C19 |
| Circuit Protection | 9x 20A low-profile circuit breakers |
| Form Factor | 0U vertical, aluminum construction |
| Dimensions | 84 in H x 2.05 in W x 2.2 in D |
| Weight | 36.21 lb (16.42 kg) |
| Management | Eaton Gigabit Network Module, SNMP/MQTT, Brightlayer software, LCD pixel display, up to 3 optional environmental probes |
| Metering Accuracy | ±1% for current, voltage, and power |
