Eaton EMA334-10 – 3-Phase Managed Rack PDU, 24 Outlets
Product Overview
The Eaton EMA334-10 is a 3-phase managed rack PDU from Eaton's G3 ePDU platform, sized for server rooms and data center racks that need remote outlet-level control without the higher capacity of Eaton's larger HDX-series units. Rated at 5.76kW with 24 outlets, it is a practical fit for mid-density racks running mixed servers, switches, and storage on a single 3-phase feed. IT teams comparing a 3-phase managed PDU with remote outlet control, or a compact 0U vertical rack PDU with RS-232 serial management, will find this model built for that tier of deployment.
Product Description

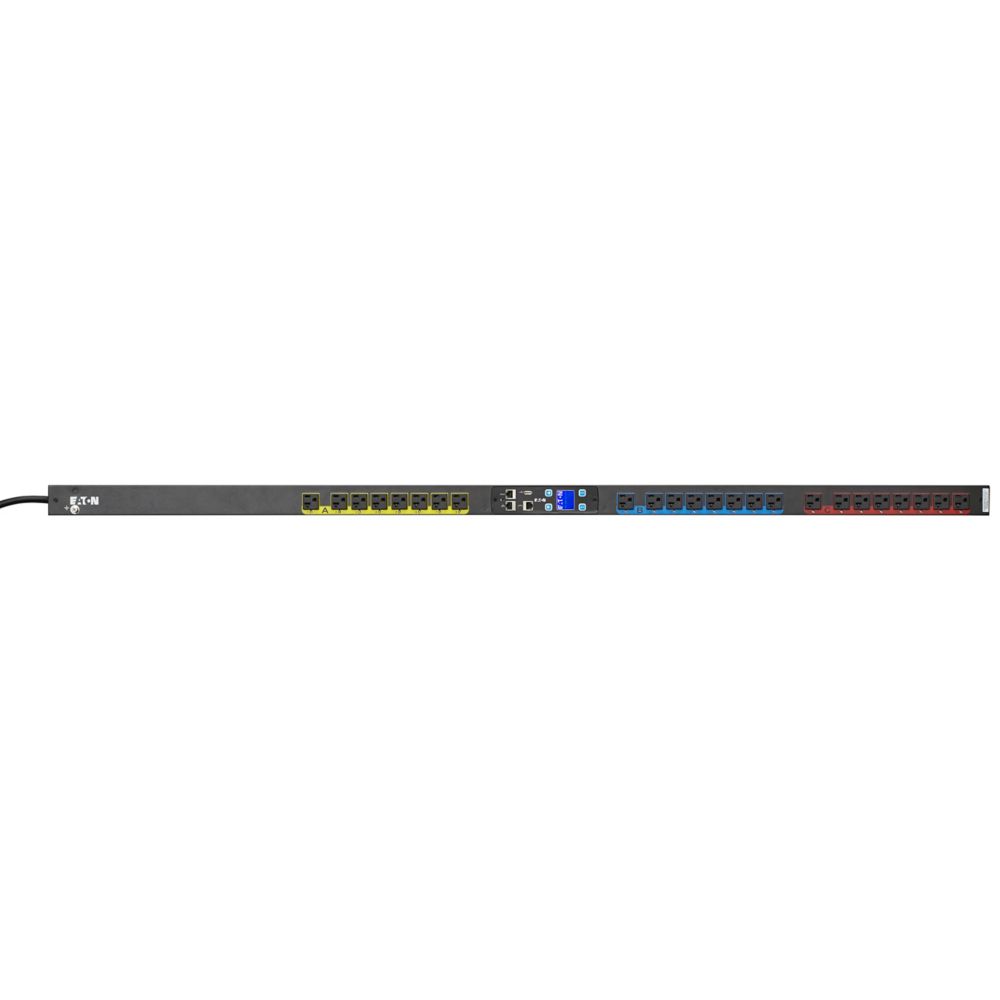

The EMA334-10 takes a 120/208V 3-phase input through an L21-20P plug rated at 16A, and distributes power to 24 individually controllable 5-20R outlets across a 0U vertical, aluminum-style chassis. Reference the product photo to see the outlet spacing and mounting profile along the vertical rail before planning cable runs.
Outlet-level control lets IT staff remotely power-cycle a single hung device, a switch, server, or AV encoder, without interrupting power to the rest of the rack, a capability especially useful in remote or unattended server rooms. The PDU includes an RS-232 serial interface for direct local management or integration with legacy monitoring systems, in addition to its managed PDU control features.
Backed by a 3-year warranty and UL Listed certification, the EMA334-10 is commonly specified where a facility needs dependable, moderate-capacity 3-phase power distribution with remote control rather than maximum outlet density. Its 63.1-inch length and 10.5 lb weight make it easy to handle during installation compared to larger HDX-series PDUs.
Key Features
- 3-Phase Managed Outlet Control — Remotely power-cycle individual outlets without affecting the rest of the rack.
- 24 Outlets (5-20R) — Sized for mid-density racks with a mix of servers, switches, and storage.
- RS-232 Serial Interface — Supports direct local management or integration with legacy monitoring tools.
- 0U Vertical Mounting — Keeps power distribution off usable rack unit space.
- 3-Year Warranty — Backed by Eaton's standard managed PDU warranty coverage.
- UL Listed — Meets recognized safety certification standards for commercial installation.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 120/208V, 3-phase |
| Input Current | 16A |
| Input Plug | L21-20P |
| Output Capacity | 5.76kW max |
| Outlets | 24x 5-20R |
| Form Factor | 0U, vertical rack mount |
| Dimensions | 63.1 in L x 2.56 in W x 2.05 in H |
| Weight | 10.5 lb |
| Management | RS-232 serial interface, outlet-level remote control |
| Frequency | 50-60 Hz |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Warranty / Certification | 3-year warranty, UL Listed |
