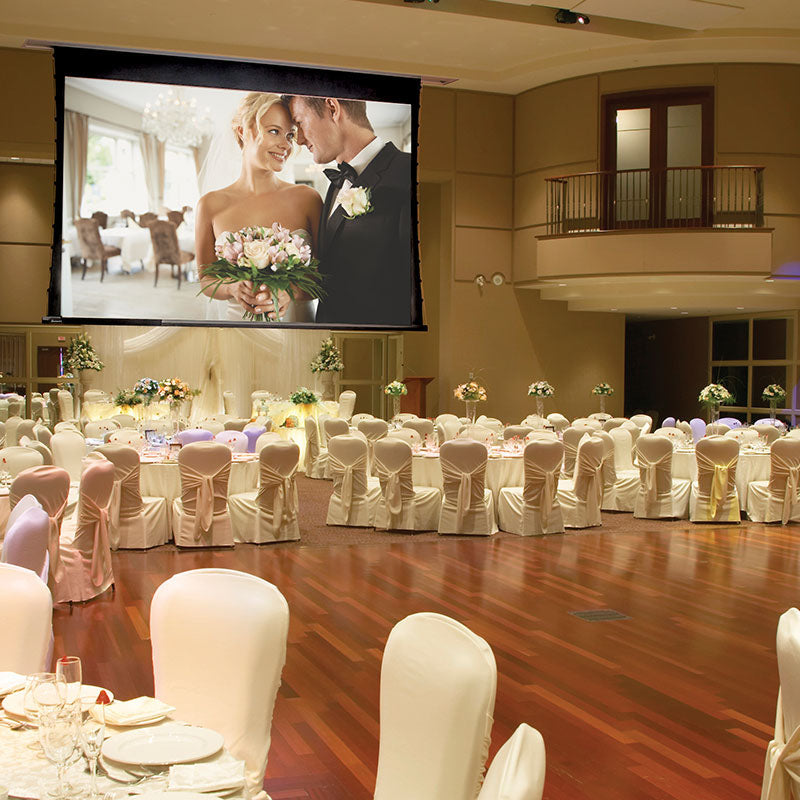

Draper Ultimate Access XL V, 234", 16:10 Motorized Projection Screen

Product Overview

The Draper Ultimate Access XL V is a large-format, ceiling-recessed, tab-tensioned motorized projection screen with an independently motorized trap door that opens upward into the case and closes flush when the screen is retracted, giving a fully concealed ceiling appearance even at extra-large sizes. This 234" 16:10 model combines Access V's taut, ripple-free tensioned surface with Ultimate Access's serviceable trap-door case, built for major venues such as conference centers and auditoriums. Choose your surface and motor configuration using the selectors above.

Product Description

The Draper Ultimate Access XL V electric projection screen pairs a tab-tensioned roller/fabric assembly — which keeps the viewing surface flat and wrinkle-free at any point in its travel — with a motorized trap door and access door that hinge downward on concealed hinges, giving installers full access to the case for service while presenting a completely finished, flush ceiling opening when closed. The steel case is finished white as standard. A standard 110-120V motor lets an operator stop or reverse the screen at any point in its travel, with an LVC-IV low-voltage controller available as an upgrade — selectable above. Viewing surfaces are masked by a black drop.

Key Features

• Tab-tensioned viewing surface — Stays flat and ripple-free at any point in its travel, unlike non-tensioned electric screens, even at extra-large format.
• Motorized trap door — Opens upward into the case and closes flush, giving a fully concealed ceiling appearance when the screen is retracted.
• 16:10 widescreen format — This 234" model matches the native aspect ratio of modern widescreen content.
• Four viewing surface options — Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, or CineFlex White XT700V to suit room lighting and contrast needs.
• LVC-IV option — Upgrade from the standard motor for low-voltage room-control integration.
• Plenum-rated case — UL Listed "Suitable for Use in Environmental Air Space."

Typical Applications

• Convention centers and large-venue conference spaces
• Auditoriums and lecture halls requiring a fully concealed ceiling finish at large format
• Houses of worship
• Corporate boardrooms and government meeting spaces

Technical Specifications

Frequently Asked Questions

What surfaces are available for this size?
Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, and CineFlex White XT700V. Select your preferred surface above.

What motor options are available?
Standard 110-120V motor, or with an LVC-IV Low Voltage Controller. At this large-format size, Quiet Motor is not offered. Select your configuration above.

What makes Ultimate Access XL V different from standard Ultimate Access V?
It scales the same tab-tensioned, trap-door design up to extra-large screen sizes for convention centers and major venues, while keeping the ripple-free viewing surface and serviceable, fully concealed case.

What warranty and support are included?
Ultimate Access XL V is UL Listed for the U.S. and Canada, with a plenum-rated case, supplied through Creation Networks as an authorized dealer.
