Draper Ultimate Access E, 109", 16:10 Motorized Projection Screen

Product Overview

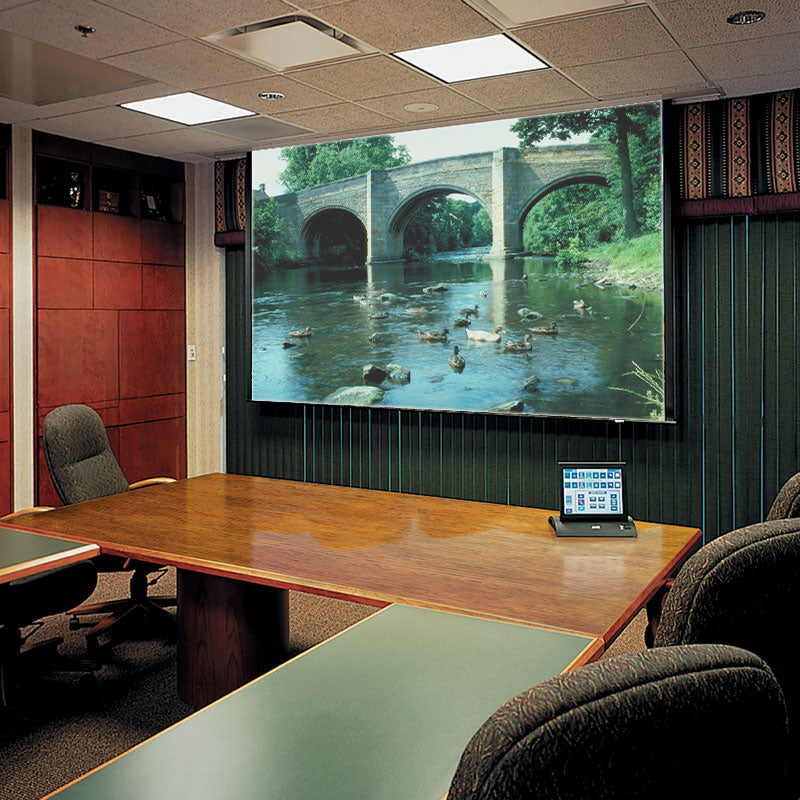

The Draper Ultimate Access E is a ceiling-recessed, motorized projection screen with a distinctive independently motorized trap door that opens upward into the case, then closes flush for a clean architectural finish when the screen is retracted. This 109" 16:10 model is built for permanent commercial AV installations where a fully concealed ceiling appearance matters. Choose your surface, voltage, and motor configuration using the selectors above.

Product Description

The Draper Ultimate Access E electric projection screen distinguishes itself from standard ceiling-recessed screens with a motorized trap door and access door that hinge downward on concealed full-length hinges, giving installers full access to the screen case for service while keeping the ceiling opening completely trimmed when the unit is closed. The steel case is finished white with aluminum trim flanges and access doors. The fire-retardant, mildew-resistant viewing surface is available in Matt White XT1000E, Contrast Grey XH800E, or ClearSound White Weave XT900E to match the room's lighting and application. A standard 110-120V or 220V motor lets an operator stop or reverse the screen at any point in its travel, with a Quiet Motor and/or LVC-IV low-voltage controller available as upgrades — selectable above.

Key Features

• Motorized trap door — Opens upward into the case and closes flush, giving a fully concealed ceiling appearance when the screen is retracted.
• 16:10 widescreen format — This 109" model matches the native aspect ratio of modern widescreen content.
• Configurable viewing surface — Choose Matt White XT1000E, Contrast Grey XH800E, or ClearSound White Weave XT900E to suit room lighting and application.
• Quiet Motor and LVC-IV options — Upgrade from the standard motor for lower operating noise and/or low-voltage room-control integration.
• Serviceable case design — Concealed hinges and prop arms let the door assembly stay open during service without detaching from the case.
• UL Listed with plenum-rated case — The unit is UL Listed for the U.S. and Canada, with a case rated for use in environmental air space, and supplied by Creation Networks with Draper's warranty.

Typical Applications

• Conference rooms and commercial meeting spaces with fixed front projection
• Corporate boardrooms requiring a fully concealed ceiling finish
• Houses of worship and government meeting spaces
• Hotel and hospitality presentation rooms

Technical Specifications

Frequently Asked Questions

What surfaces are available for this size?
Matt White XT1000E, Contrast Grey XH800E, and ClearSound White Weave XT900E (acoustically transparent). Select your preferred surface above.

What voltage and motor options are available?
110V and 220V, with Standard, Quiet Motor, LVC-IV Low Voltage Controller, or Quiet Motor & LVC-IV combined. Select your configuration above; the motor is not field-convertible between voltages.

What makes the Ultimate Access E different from a standard ceiling-recessed screen?
Its trap door and access door are independently motorized and hinge downward on concealed hinges, so the case stays serviceable without ever detaching, while presenting a fully finished, flush ceiling appearance.

How is the case installed?
The case mounts with 3/8" threaded rod through slide-in mounting brackets in an 18" channel on top of the case, allowing brackets to be repositioned around building structure.

What warranty and support are included?
The Ultimate Access E is UL Listed for the U.S. and Canada, with a plenum-rated case, supplied through Creation Networks as an authorized dealer.
