Draper StageScreen, 113", 16:10, Matt White XT1000VB, Complete System - 383504

Product Overview

The Draper StageScreen is a modular, portable projection screen built for AV rental fleets, touring productions, and venues that need a single flexible inventory to cover many screen sizes. Its 8" (20cm) truss frame is built from six standard, color-coded sections that combine to build any available size — no separate frame purchase needed per size. This 113" diagonal 16:10 complete system ships with the Matt White XT1000VB surface and all frame components included.

Product Description

StageScreen was designed specifically to solve a rental-industry problem: stocking a separate folding frame for every screen size a client might request. Because every available StageScreen size is built from combinations of the same six color-coded frame sections, a rental house or integrator can cover a wide range of diagonal sizes and aspect ratios from one shared parts inventory, reducing warehouse space and simplifying logistics between jobs.

The 8" truss construction is substantially more rigid than traditional folding-truss screens — Draper's own in-house testing measured it as more than 60% stronger, with no broken parts after extensive cycle testing where a comparable folding truss failed at its weak points. Frame sections connect with permanently attached threaded links and guide pins, so there are no loose hardware pieces to misplace between setups. The viewing surface attaches using Draper's DuraLoop bungee cord loops with nylon pull-tabs, which apply even, self-centering tension across the surface — delivering a flatter image than snap-based tensioning and holding up to repeated setup and teardown far longer than snaps typically do.

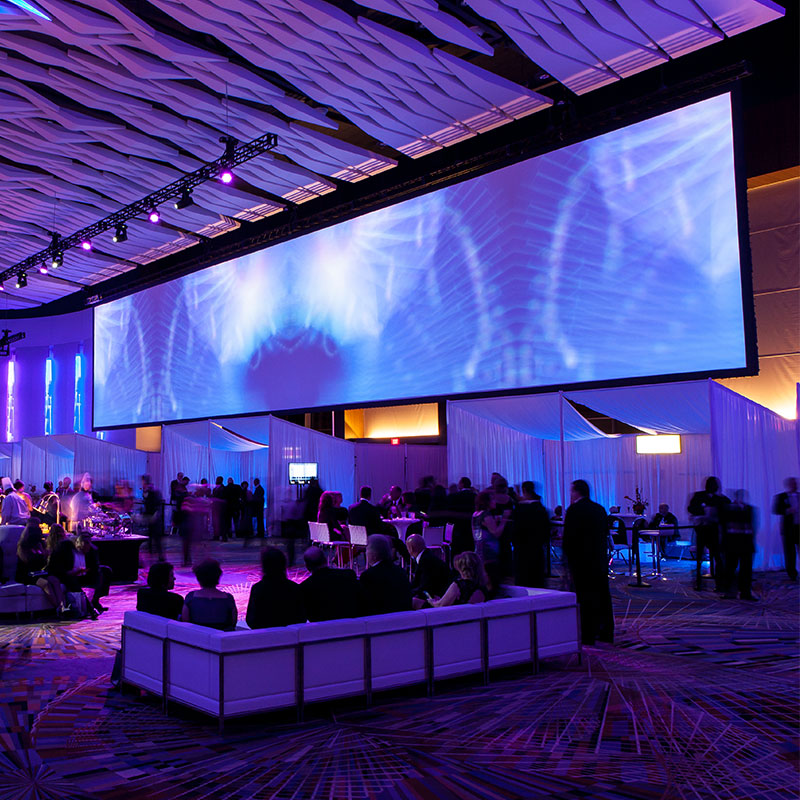

StageScreen can be wall-mounted, suspended (flown), or set up free-standing with optional leg supports, making it equally suited to a fixed install in a large venue or a screen that travels from job to job. Maximum standard size reaches 18' x 60'; TecVision surfaces are supported up to 18' x 30'. An optional black IFR velour dress kit is available to mask the frame edges for a cleaner look in front-of-house applications, and the complete system ships with a heavy-duty molded polyethylene wheeled case for transport.

Key Features

• 8" Modular Truss Frame — Tested over 60% stronger than traditional folding truss screens, with no broken parts after extensive cycle testing.
• Shared Parts Inventory — All available sizes build from six standard, color-coded frame sections — no per-size frame purchase required.
• DuraLoop Bungee Attachment — Self-centering, even tension across the viewing surface for a consistently flat image.
• No Hinges, Snaps, or Cranks — Threaded links and guide pins for fast, tool-minimal assembly.
• Wall-Mount, Flown, or Free-Standing — Optional leg supports add free-standing setup to the same frame system.
• Wheeled Molded Case Included — Heavy-duty polyethylene case for transport between venues.
• Optional IFR Velour Dress Kit — Masks frame edges for front-of-house presentation.
• Broad Surface Compatibility — Matt White, CineFlex, CineFlex White, and multiple TecVision performance surfaces.

Typical Applications

• AV equipment rental fleets
• Touring productions and live events
• Auditoriums and lecture halls
• Gymnasiums and multi-purpose venues
• Corporate all-hands and general session staging
• Broadcast studio and stage backdrops

Technical Specifications

Specifications sourced from Draper, Inc. and subject to change without notice.

Frequently Asked Questions

Can one StageScreen inventory cover multiple screen sizes?
Yes — that's the core design premise. All available StageScreen sizes are built from the same six standard, color-coded frame sections, so a rental fleet or integrator can build different sizes from a shared parts inventory rather than stocking a dedicated frame per size.

How much stronger is the StageScreen truss than a folding-truss screen?
Draper's in-house testing measured StageScreen as more than 60% stronger than a traditional folding truss screen, with no broken parts after extensive cycle testing where the folding truss failed at its weakest points.

Can StageScreen be flown instead of set up with legs?
Yes. StageScreen can be wall-mounted, suspended (flown), or set up free-standing with optional leg supports.

What's included in the complete system versus surface-only or legs-only options?
The complete system includes the full frame, viewing surface, and wheeled carrying case. Surface-only and legs-only configurations are also available separately for rental fleets that already stock the other components.

Does StageScreen support high-performance TecVision surfaces?
Yes, though TecVision surfaces are supported up to a maximum of 18' x 30', smaller than the 18' x 60' maximum available with standard surfaces like Matt White and CineFlex.
