Draper Premier XL, 220", HDTV Motorized Projection Screen
Product Overview

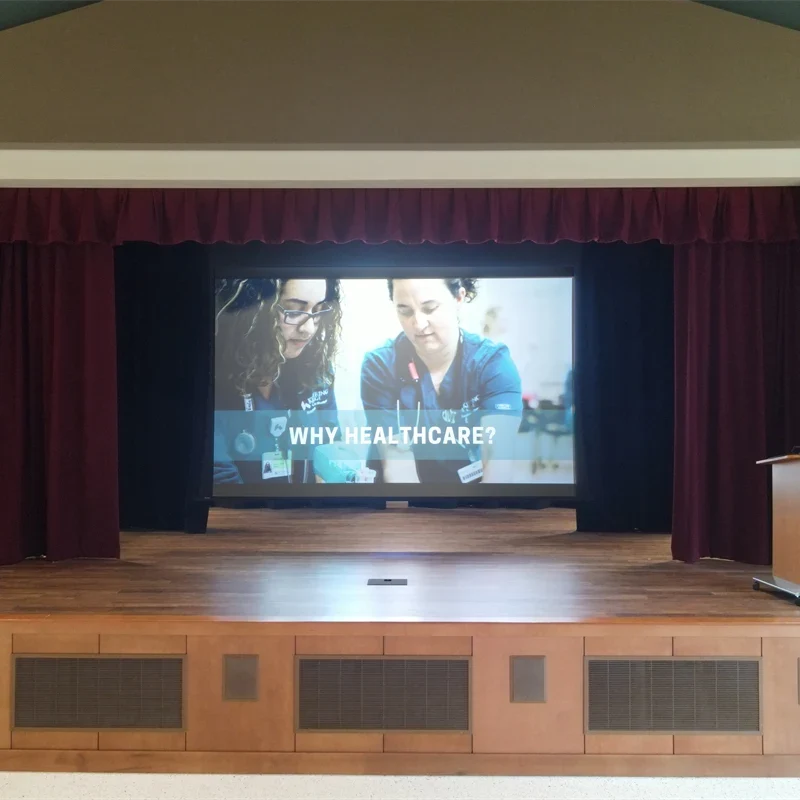

The Draper Premier XL is a large-format wall- or ceiling-mounted motorized projection screen built on Draper's Tab-Tensioning System, sized for auditoriums, houses of worship, and other large-venue installations beyond standard Premier's size range. This 220" diagonal HDTV unit is available in your choice of surface, voltage, and motor configuration using the selectors above.
Product Description
Premier XL extends the Premier tab-tensioned platform to large-venue diagonal sizes, using the same RF-welded, tab-tensioned surface construction for a flat, wrinkle-free image at scale. The case is finished in black baked-on plastisol as standard and includes matching endcaps with universal mounting brackets for wall or ceiling installation.
Every Premier XL ships with a standard 110-120V or 220V, 3-position wall switch as the baseline control, with an LVC-IV low-voltage controller available as an upgrade for room-control integration — selectable above alongside surface and voltage.
This particular configuration covers the 220" diagonal size in HDTV format. As a large-format motorized screen, Premier XL suits auditoriums, large conference and training rooms, and houses of worship where standard Premier sizing tops out.
Key Features
- Tab-Tensioning System — RF-welded tabs and a lateral tab-guide cable system hold the surface flat and wrinkle-free at large-venue scale.
- Large-format sizing — extends the Premier platform beyond standard size limits for auditoriums and large rooms.
- Universal mounting brackets — matching endcaps let the same screen mount to a wall or ceiling without separate hardware.
- Standard 3-position wall switch — 110V or 220V control included on every unit; LVC-IV Low Voltage Controller available as an upgrade.
- LVC-IV Low Voltage Controller option — built-in low-voltage control for integration with room-control systems.
- 110V or 220V motor — specified for the voltage a project requires.
- Full Draper surface line available — selected per project requirement.
Typical Applications
- Auditoriums and large-venue conference spaces
- Houses of worship
- All-hands rooms and town-hall spaces
- Higher-education lecture halls
Technical Specifications
| Specification | Value |
|---|---|
| Diagonal Size | 220" |
| Format | HDTV |
| Image Area | 108" x 192" |
| Mounting | Wall or ceiling (universal brackets included) |
| Motor | 110V or 220V; standard 3-position switch, with optional LVC-IV Low Voltage Controller |
| Available Surfaces | CineFlex CH1200V, CineFlex White XT700V, Grey XH600V, Matt White XT1000VB |
| Origin | USA (Spiceland, Indiana) |
Frequently Asked Questions
What surfaces are available for this size?
CineFlex CH1200V, CineFlex White XT700V, Grey XH600V, Matt White XT1000VB. Select your preferred surface above.
How is Premier XL different from standard Premier?
Premier XL uses the same tab-tensioned platform scaled to large-venue diagonal sizes beyond what standard Premier offers.
What motor options are available?
Standard ships with a 3-position wall switch. LVC-IV Low Voltage Controller adds built-in low-voltage control for room-control integration.
What voltage options are available?
110V and 220V, depending on surface. Select the voltage your project requires above; the motor is not field-convertible between voltages.
Is a warranty included?
Contact Creation Networks for full unit warranty details.
