Draper KS-1/SS-1R – Stainless – 121032

Product Overview

The Draper KS-1/SS-1R is a low-voltage wall projection screen control switch kit that pairs a key-operated power supply switch with a single-station three-position rocker switch. It is designed for commercial installations where an integrator needs to restrict who can operate a motorized Draper screen while retaining simple up/stop/down control. This stainless-finish kit is a practical control accessory for boardrooms, classrooms, and public spaces that require secure screen operation.

Product Description

The Draper KS-1/SS-1R control switch combines two components into one kit. The KS-1 is a single-pole, single-throw (SPST) on-off key switch with a stainless steel cover plate that fits a standard single-gang box and uses maintained action, allowing an operator to lock out power to the screen so unauthorized users cannot raise or lower it. The SS-1R is a black three-position rocker switch with center-off (on-off-on) operation, a double-pole, double-throw (DPDT) configuration, and maintained action, supplied with an aluminum cover plate in a silver satin finish. The SS-1R is the standard single-station control included with Draper 110V electric screens, so this kit adds a key-controlled security layer on top of familiar rocker operation. Both switches operate on 110V current, with a 220V version also available. The kit is UL listed. This control accessory is intended for Draper motorized projection screens; browse the full Draper projection screen lineup for compatible motorized models, or contact Creation Networks at creationnetworks.net to confirm compatibility with your screen and control system.

Key Features

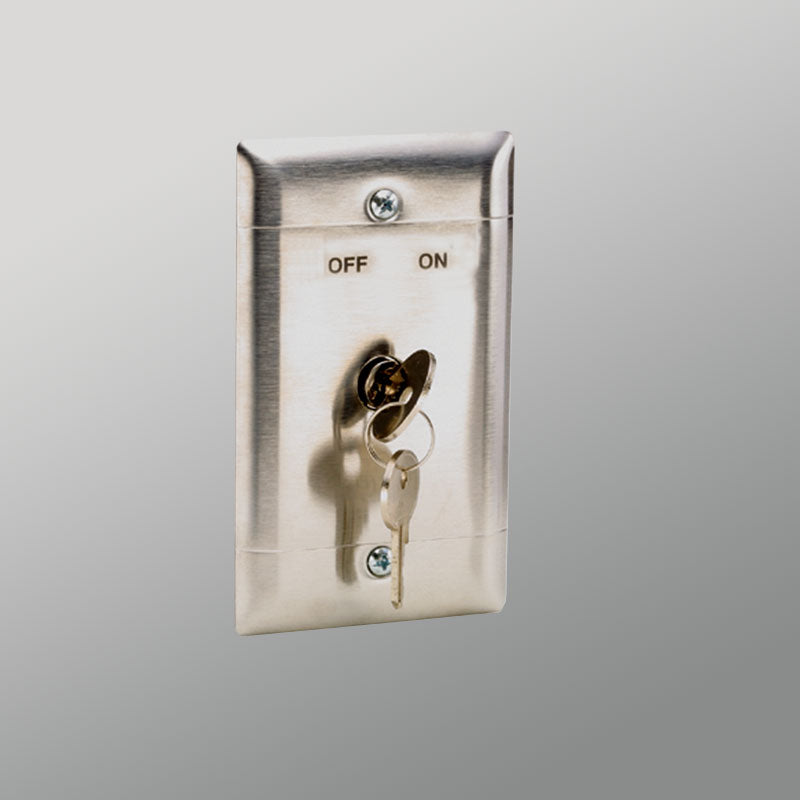

• Key-operated security switch — The KS-1 is an SPST maintained-action key switch that locks out power to the screen, limiting operation to authorized users.
• Three-position rocker control — The SS-1R is a DPDT rocker switch with center-off (on-off-on) operation for straightforward up, stop, and down control.
• Stainless and aluminum cover plates — The KS-1 ships with a stainless steel single-gang cover plate; the SS-1R includes an aluminum cover plate with a silver satin finish.
• Standard single-gang mounting — Both switches fit standard single-gang boxes for straightforward installation in commercial walls.
• 110V operation, 220V available — The kit operates on 110V current, with a 220V version offered for international or specialty deployments.
• UL listed — The kit is UL listed for code-compliant commercial installation.

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm screen and control-system compatibility with Creation Networks before ordering.
