Draper Access V, 161", HDTV Motorized Projection Screen
Product Overview

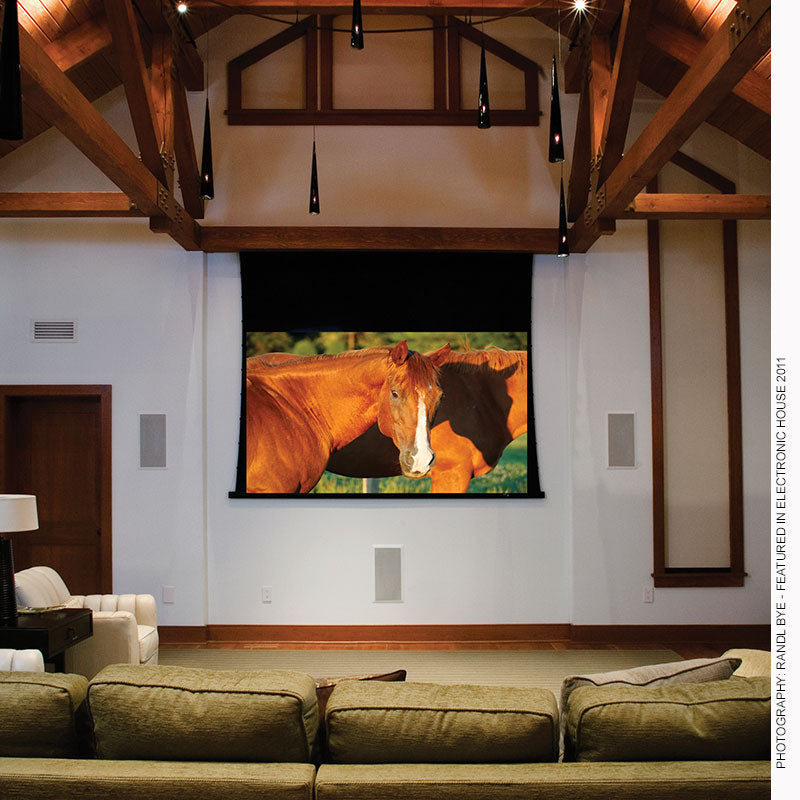

The Draper Access V is a ceiling-recessed, tab-tensioned electric projection screen built for permanent commercial AV installations that need a flat, ripple-free viewing surface. This 161" HDTV (16:9) model matches widescreen video and cinema content. Choose your surface and motor configuration using the selectors above.
Product Description
The Draper Access V electric projection screen uses a tab-tensioned roller/fabric assembly that keeps the viewing surface flat at any point in its travel, unlike non-tensioned electric screens that can develop waves or bagging over time. The steel case is finished white as standard, and installs flush into the ceiling for a clean, low-profile appearance. A standard 110-120V motor lets an operator stop or reverse the screen at any point in its travel. Quiet Motor and LVC-IV low-voltage control are available as upgrades, individually or combined — selectable above.
Key Features
- Tab-tensioned viewing surface — Stays flat and ripple-free at any point in its travel, unlike non-tensioned electric screens.
- HDTV (16:9) format — This 161" model matches widescreen video and cinema content.
- Four viewing surface options — Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, or CineFlex White XT700V.
- Quiet Motor and LVC-IV options — Available individually or combined, for sound-sensitive rooms or low-voltage control integration.
- Plenum-rated case — UL Listed "Suitable for Use in Environmental Air Space."
Typical Applications
- Corporate conference rooms and boardrooms
- Higher education classrooms and lecture halls
- Government meeting spaces
- Houses of worship
Technical Specifications
| Specification | Value |
|---|---|
| Size | 161" |
| Format | HDTV (16:9) |
| Image Area | 79" x 140" |
| Screen Type | Ceiling-recessed electric, tab-tensioned |
| Motor | 110-120V AC; standard motor, with optional Quiet Motor and/or LVC-IV Low Voltage Controller |
| Available Surfaces | Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, CineFlex White XT700V |
| Certification | UL Listed (U.S. and Canada); plenum-rated case |
Frequently Asked Questions
What surfaces are available for this size?
Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, and CineFlex White XT700V. Select your preferred surface above.
What motor options are available?
Standard 110-120V motor, or with Quiet Motor, LVC-IV Low Voltage Controller, or both combined. Select your configuration above.
What warranty and support are included?
Access V is UL Listed for the U.S. and Canada, with a plenum-rated case, supplied through Creation Networks as an authorized dealer.
