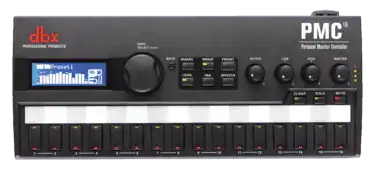

DBX PMC16 16-Channel Personal Monitor Controller - DBXPMCM-04

Product Overview

The DBX PMC16 personal monitor controller gives each performer on stage independent control over their own 16-channel mix in real time, eliminating the need for the front-of-house engineer to manage individual monitor mixes during live performance. Designed for use with the dbx TR1616 or any BLU Link-compatible audio device, the PMC16 connects via CAT5e cable and supports up to 60 units daisy-chained on a single BLU Link ring, making it a practical solution for large-scale live events, house of worship productions, and broadcast studio applications. With onboard Lexicon reverb, dbx PeakStopPlus limiting, and 16 preset recall locations, the PMC16 delivers professional monitoring capability at the performer position without a dedicated monitor engineer.

Product Description

The DBX PMC16 16-channel personal monitor controller provides each performer with a comprehensive mixing environment that includes level, pan, mute, solo, and reverb send control on all 16 channels simultaneously. The LCD display with 16-channel level metering gives a clear visual overview of all sources at a glance, while channel linking, grouping, and multi-select capabilities allow rapid adjustments to related sources such as drum subgroups or backing vocal stems.

The output processing section of the PMC16 addresses the practical differences between monitoring formats: stereo width control for in-ear monitoring environments, wedge monitor compensation EQ to correct the proximity effect of floor wedges, and global high and low master EQ for room and preference adjustments. The dbx PeakStopPlus limiter protects hearing and in-ear monitor drivers by preventing transient overloads at the output stage. Both 48 kHz and 96 kHz sampling rates are supported over the BLU Link connection, preserving the full resolution of the digital audio source.

The built-in mic stand mount allows the PMC16 to be positioned at a performer's stand without additional hardware, while the USB port enables field firmware updates without returning the unit to a service center. The Setup Wizard simplifies initial configuration for audio technicians deploying multiple PMC16 units across a stage, and 16 preset locations provide fast recall of saved mixes between songs or between multiple users sharing a single unit. The PMC16 is stocked at Creation Networks and is appropriate for house of worship, auditorium, broadcast studio, and touring live sound applications.

Key Features

• 16-Channel Personal Monitor Mixer — Full level, pan, mute, solo, and reverb send control on all 16 channels, giving performers complete mix autonomy.
• BLU Link Digital Audio Bus — High-bandwidth, fault-tolerant digital connection via CAT5e supports up to 60 PMC16 units on a single ring.
• 48 kHz and 96 kHz Support — Full high-resolution audio at both standard sampling rates, preserving the quality of the source signal to the performer.
• Built-In Lexicon Reverb — Onboard reverb with send control per channel adds natural ambience for performers who rely on room sound for pitch reference.
• dbx PeakStopPlus Limiting — Output limiter protects in-ear monitor drivers and performer hearing from transient overloads.
• 16 Preset Locations — Full mix and configuration recall for fast changeovers between performers or songs.
• LCD Display with 16-Channel Metering — Full visual overview of all channel levels on a single screen.
• Stereo Width and Master EQ — Global output controls including stereo width, wedge compensation EQ, and high/low EQ for monitoring optimization.

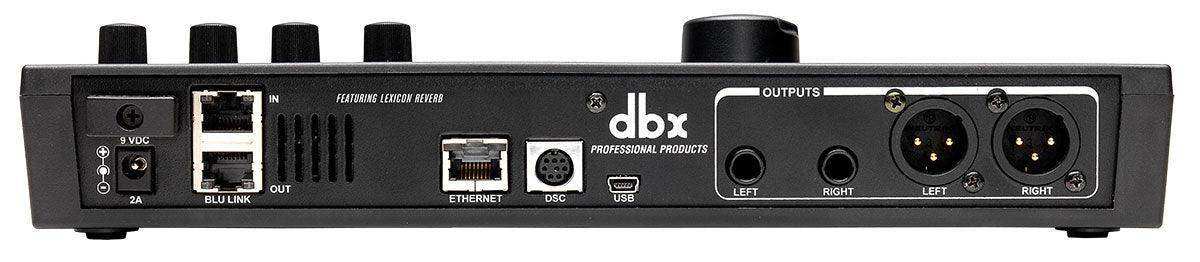

• Multiple Output Formats — XLR and 1/4-inch stereo or mono outputs plus 1/8-inch and 1/4-inch headphone outputs for any monitoring setup.
• Mic Stand Mount — Integrated sturdy mount positions the controller at the performer's stand without requiring a separate adapter.
• USB Firmware Updates — Field-updatable firmware via USB port keeps units current without service center involvement.
• Setup Wizard — Guided configuration process simplifies deployment of single or multi-unit installations.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: Does the PMC16 require the dbx TR1616 to function?

No. The PMC16 works with any BLU Link-compatible device. The TR1616 is a common pairing because it provides 16 channels of analog I/O over BLU Link, but other BLU Link sources are compatible.

Q: How many PMC16 units can be connected on one stage?

Up to 60 PMC16 units can be daisy-chained on a single BLU Link ring using standard CAT5e cable, each receiving all 16 channels of audio independently.

Q: What cable is required between PMC16 units?

Standard CAT5e cable is used for the BLU Link connection between the source device and the PMC16 units in the daisy-chain ring.

Q: Can the PMC16 be used with in-ear monitors?

Yes. The PMC16 includes stereo width control and PeakStopPlus limiting specifically to optimize the output for in-ear monitor use, in addition to standard headphone and line outputs.

Q: Does the PMC16 have a built-in reverb?

Yes. Lexicon reverb is built in with per-channel send control, allowing performers to add reverb to their monitor mix without an external effects unit.
