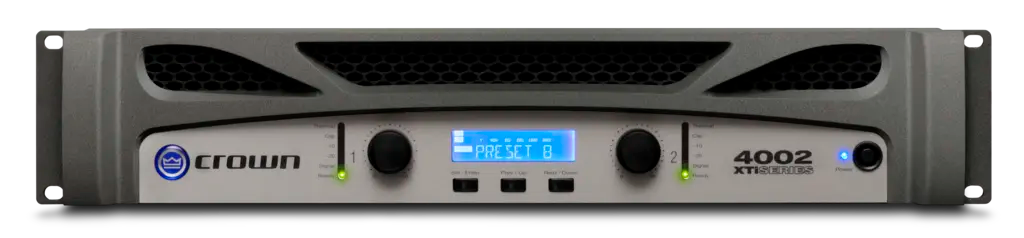

Crown XTi 4002 1200W 2-channel Power Amplifier
Crown XTI4002 – 2-Channel 1200W XTi 2 Series Power Amplifier
Product Overview
The Crown XTI4002 is a two-channel, 1200-watt-per-channel professional power amplifier from Crown's XTi 2 Series, built for high-output commercial AV installations and sound reinforcement applications. The XTI4002 combines substantial amplification headroom with integrated DSP processing, making it suited for main speaker systems in auditoriums, houses of worship, large conference rooms, and commercial venues where performance and onboard signal processing are both required in a single 2U rack-mount chassis.
Product Description
The XTI4002 delivers 1200 watts per channel into 4 ohms with built-in DSP including crossover, parametric EQ, limiting, and delay accessible via the front-panel LCD or Crown Band Manager software over USB. In bridge mono mode, the XTI4002 delivers 2400 watts into 8 ohms for high-power subwoofer or main speaker applications. The amplifier supports 2-ohm, 4-ohm, and 8-ohm stereo loads. Crown's Class I topology provides high efficiency for continuous-duty commercial rack operation with reduced heat generation.
Key Features
- 1200W per channel at 4Ω — High continuous output for main speaker systems in large commercial venues.
- 2400W bridge mono at 8Ω — High single-channel output for subwoofer and main speaker amplification.
- Built-in DSP — Crossover, parametric EQ, limiting, and delay without external processing.
- Front-panel LCD — Real-time display of system status, input levels, and DSP parameters.
- USB connectivity — Computer control via Crown Band Manager software.
- 2Ω load stability — Stable operation at demanding low-impedance loads.
- Crown Class I topology — High efficiency design for high-power commercial rack operation.
- Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
Typical Applications
- Auditorium and performing arts center main speaker amplification
- House of worship main and subwoofer speaker systems
- Large conference room and boardroom main speaker systems
- Government and municipal facility public address
- Multi-purpose room and all-hands room high-output audio
- Commercial venue sound reinforcement
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (4Ω stereo) | 1200W per channel |
| Power Output (8Ω stereo) | 700W per channel |
| Power Output (bridge mono, 8Ω) | 2400W |
| Minimum Load Impedance | 2Ω stereo / 4Ω bridge |
| DSP | Built-in (crossover, PEQ, limiting, delay) |
| Control Interface | USB, front-panel LCD |
| THD+N | <0.5% at rated power |
| Frequency Response | 20Hz–20kHz ±1dB |
| Rack Spaces | 2U |
| SKU | XTI4002 |
Competitor Comparison
| Criteria | Crown XTI4002 | QSC RMX 2450a | Lab.gruppen E 8:2 | Crown DCI2X1250 |
|---|---|---|---|---|
| Channels | 2 | 2 | 2 | 2 |
| Power per ch (4Ω) | 1200W | 1200W | See datasheet | 1250W |
| Built-in DSP | Yes — crossover, PEQ, limiting, delay | Yes — basic DSP | Limited | Full DriveCore DSP |
| Control | USB / front panel | USB / front panel | Front panel | HiQnet / front panel |
| 70V/100V | No | No | No | Yes |
| Primary Use | Installation / SR | Installation / SR | Installation | Installation with 70V |
Frequently Asked Questions
- Can the XTI4002 be used for 70V distributed speaker systems?
- The XTI4002 does not include a built-in 70V output transformer. For 70V distributed audio, the Crown DCi or CDi series amplifiers with native 70V support are recommended. The XTI4002 is suited for low-impedance speaker system applications.
- What DSP functions are included?
- The XTI4002 includes crossover filtering, parametric EQ, limiting, and delay per channel, accessible via the front panel or Crown Band Manager software over USB.
- Does the XTI4002 support bridge mono operation?
- Yes. In bridge mono mode the XTI4002 delivers 2400 watts into 8 ohms.
- What is the warranty?
- Crown XTi 2 Series amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
