Crestron UCA-PWE-UC-2/UC-P8/P10 PoE Injector for UC-2, UC-P8, and UC-P10 Series Devices
Crestron UCA-PWE-UC-2/UC-P8/P10 PoE Injector for UC-2, UC-P8, and UC-P10 Series Devices is backordered and will ship as soon as it is back in stock.
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron UCA-PWE-UC-2/UC-P8/P10 PoE Injector for UC-2, UC-P8, and ...
Product Overview

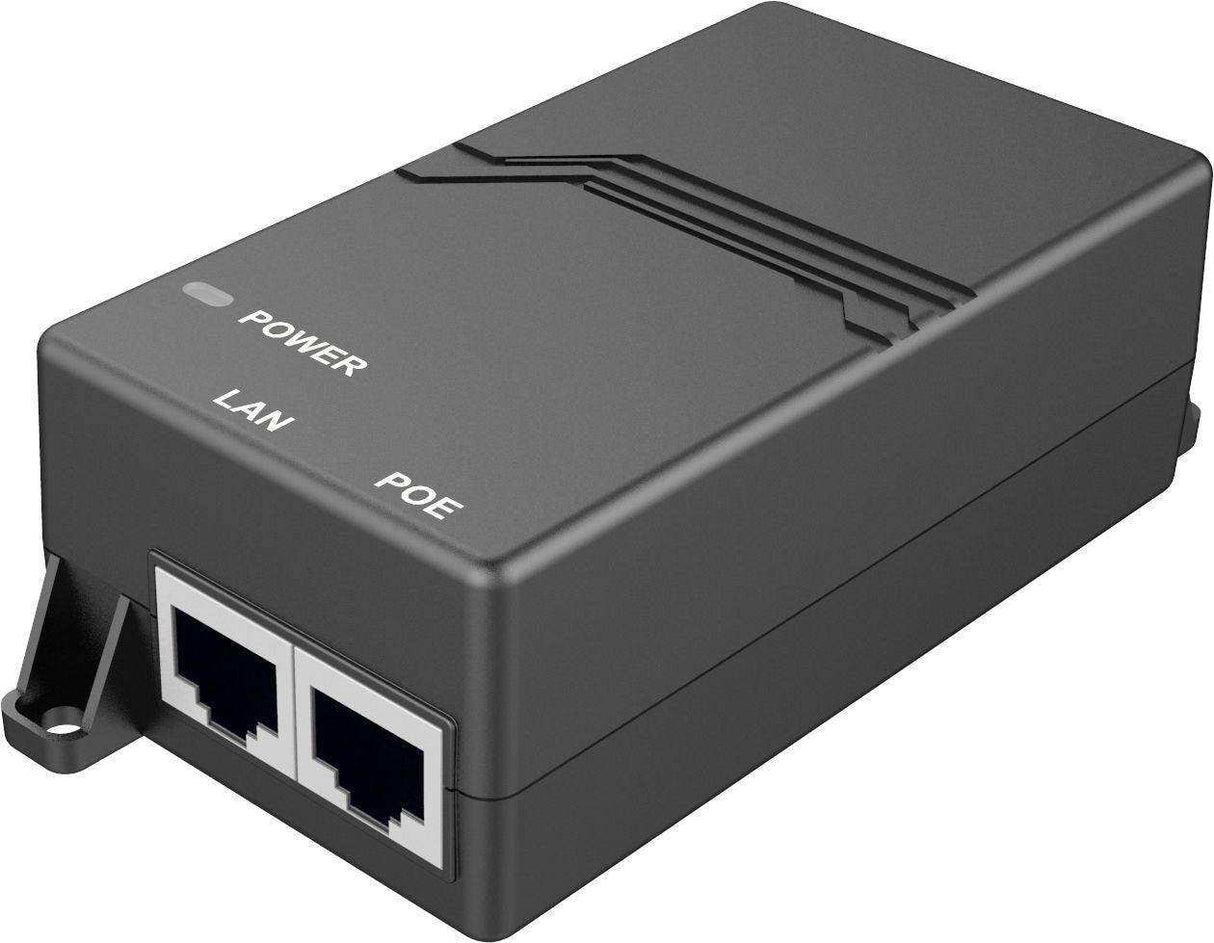

The Crestron UCA-PWE-UC-2/UC-P8/P10 is a Power over Ethernet (PoE) power source for optional use with Crestron UC-2, UC-P8, and UC-P10 series devices in environments where a PoE infrastructure is not available. It delivers up to 500 mA at 48VDC nominal over a standard RJ-45 Ethernet connection. The surface-mount injector can be located up to 100 meters (328 feet) from the device. A blue power LED provides at-a-glance confirmation that power is available.
Product Description
The UCA-PWE-UC-2/UC-P8/P10 lets integrators deploy Crestron UC-2, UC-P8, and UC-P10 series devices in spaces that lack PoE-capable network switches. The injector accepts 100-240VAC input through an IEC 60320 C6 socket and supplies PoE to a single device over the LAN PoE RJ-45 port, while a separate LAN RJ-45 port supports 10BaseT/100BaseTX/1000BaseTX Ethernet pass-through. Only one PoE-enabled device at a time can be powered by the unit. The compact black plastic housing is designed for surface mounting and can be placed at any convenient location within 100 meters of the device, providing flexibility in cable routing. Operating temperature and humidity ranges suit typical equipment closets and workspaces. For help confirming compatibility with your Crestron Flex deployment, contact Creation Networks.
Key Features
- PoE power source — Supplies Power over Ethernet where no PoE infrastructure exists.
- UC series compatible — Designed for Crestron UC-2, UC-P8, and UC-P10 series devices.
- 500 mA at 48VDC output — Delivers up to 500 mA maximum at 48VDC nominal.
- 100 m placement — Can be mounted up to 100 meters (328 feet) from the powered device.
- Dual RJ-45 ports — Separate LAN and LAN PoE 8-wire RJ-45 connectors.
- Power LED indicator — Blue LED confirms power is available.
- Surface-mount housing — Compact black plastic enclosure for flexible placement.
- Single-device output — Powers one PoE-enabled device at a time.
Technical Specifications
| Output Rating | 500 mA maximum @ 48VDC nominal |
| Power Requirements | 100-240VAC, 50/60 Hz |
| LAN Connector | (1) 8-wire RJ-45 female; 10BaseT/100BaseTX/1000BaseTX Ethernet port |
| LAN PoE Connector | (1) 8-wire RJ-45 female |
| Main Power Input | (1) IEC 60320 C6 socket |
| LED Indicator | POWER (1) Blue LED indicates power is available |
| Operating Temperature | -4° to 122°F (-20° to 50°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Construction | Black plastic, surface mount |
| Dimensions (H x W x D) | 1.38 x 2.10 x 4.44 in (35.05 x 53.34 x 112.77 mm) |
| Weight | 4.7 oz (133 g) |
