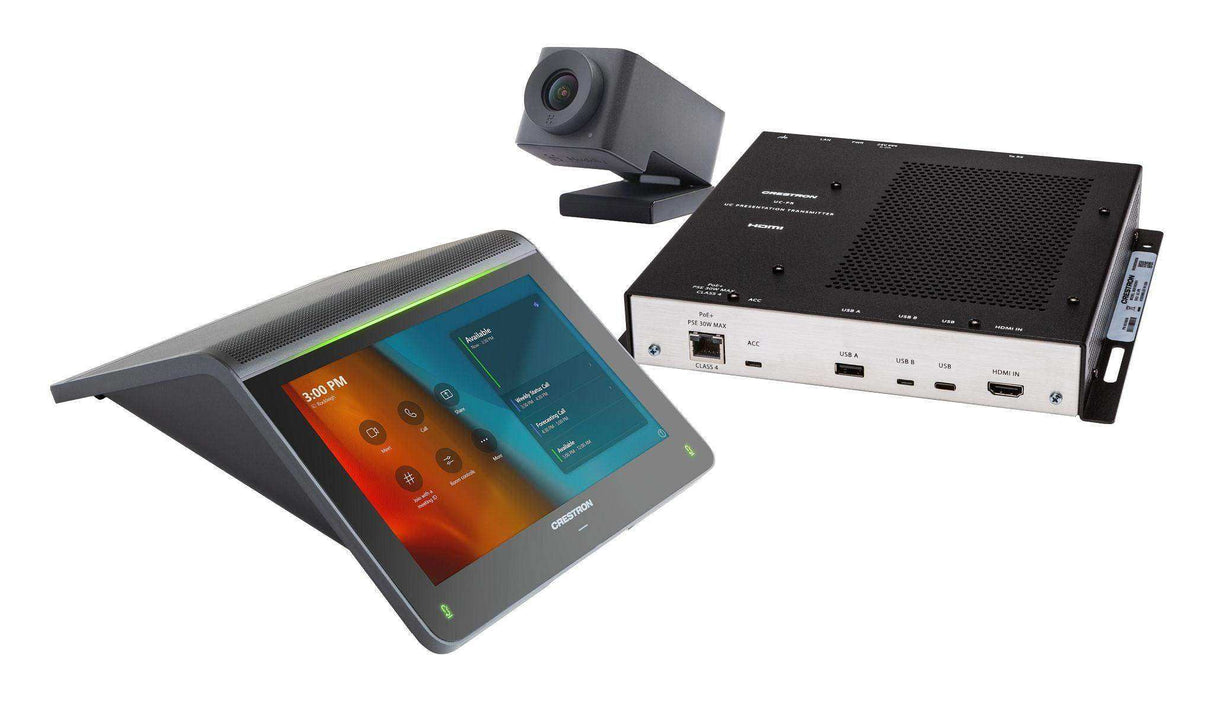

Crestron UC-MMX30-T Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

Save 40%
Crestron SKU: UC-MMX30-T
No reviews

Price:
Sale price$3,696.00 Regular price$6,160.00

Description

The UC-MMX30-T Crestron Flex advanced tabletop conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, UC presentation transmitter, PoE Injector, and cables.

Native Microsoft Teams® Rooms Experience
The UC-MMX30-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-T-V) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device to the UC Bracket Assembly.2

High‑Definition Video Conferencing
The included collaboration camera (CCS-CAM-USB-F-400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.

Crestron Control System Integration
The UC-MMX30-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.3

Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected.4 For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Visit www.crestron.com/xiocloud for additional information.

Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Visit www.crestron.com/flexcare for additional information.

Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.2, 3

Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.

  • Tabletop video conferencing solution for Microsoft Teams® Rooms
  • Present, call, conference, and collaborate using your own device's UC conference platform (BYOD) or the native Microsoft Teams Rooms platform
  • Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
  • Complete kit contains a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables — just add a display and mount
  • Easy to specify and install — no custom design, programming, or software installation required
  • Optional integration with Crestron control systems
  • Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration
  • Network management and provisioning, system alerts, and the pairing of the Crestron Flex tabletop conference device to the system’s UC Engine through the XiO Cloud® service
  • Premium-level service with Crestron Flex Care (optional)
  • Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
  • Supports single or dual video displays (not included)
Included Components
UC-2-T-V Crestron Flex Tabletop Audio Conference System includes:
  • PoE+ Injector, Input: 100~240VAC, Output: 48VDC, 0.5A
  • Cable, CAT5e, RJ45-to-RJ45, 12 ft (3.7 m) (x2)
  • Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m)

UC‑BRKT‑250‑P‑T‑ASSY

or

UC‑BRKT‑260‑P‑T‑ASSY

UC Bracket Assembly for Microsoft Teams Rooms systems, comprised of:
  • UC Engine: Mini PC with Microsoft Teams video
  • ADPT-USB-ENET: USB-to-Ethernet Adapter
  • CAT5 to USB 3.0 converter for content ingest
  • Mounting hardware
CCS‑CAM‑USB‑F‑400 Collaboration Camera
UC‑PR UC Presentation Transmitter with Cable Organizer
CBL‑4K‑DP‑HD‑6 Active Converter Cable, DisplayPort™ to HDMI, 18 Gbps, 6 ft (1.8 m); secondary display
CBL-CAT5E-7 Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
CBL‑HD‑6 HDMI Interface Cable, 6 ft (1.8 m); primary display
CBL-USBC-USBA-6 USB 3.0 Cable, Right angle USB‑C® to A, 6 ft (1.8 m)
DM‑CBL‑ULTRA‑PC‑20 (2) Ethernet LAN cable, CAT6a, RJ45‑to‑RJ45, blue, 20 ft (6.1 m)
UC-CAM-WMK Wall Mount Kit for Crestron Cameras
Crestron Flex Tabletop Conferencing System
Touch Screen 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels
UI Microsoft Teams UI
Mic Mute Symbol and Light Bar (4) Capacitive buttons with bi‑color LEDs, toggles between mute and unmute
AEC Automatic gain control, dynamic noise reduction, acoustic echo cancellation, full‑duplex IEEE 1329 Type 1 compliant
Speaker Full range speaker;
Amplifier Power: 7 W (rated power);
Output Volume: 83 ±3 dBA @1m 1 kHz;
Frequency Response: 100 Hz - 20 kHz
Microphones (4) Built-in omnidirectional, digital MEMS microphones with 360° audio pickup;
Maximum pickup range: 10 ft (3 m) typical
Occupancy Sensor Approx. 10 ft (3 m) PIR range in front of touch screen
Ethernet 100 Mbps, auto-switching, auto‑negotiating, auto-discovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, digest access authentication, password login, XiO Cloud client, Microsoft Intune® client, IEEE 802.3at Type 2 PoE+ compliant
USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
Power IEEE 802.3af Class 3 and 802.3at Class 4 PoE+ powered device;
PoE+ injector included
Dimensions Height: 3.02 in. (77 mm)
Width: 7.17 in. (182 mm)
Depth: 9.61 in. (244 mm)
Weight 2.1 lb (0.96 kg)
Camera
Image Sensor 12 Megapixel 1/2.3 CMOS sensor
Lens High precision, ultra wide angle, six element aspherical glass lens
Field of View 150° diagonal, 120° horizontal, 90° vertical
Aperture f/2.8
Autozoom Genius Framing automatic lossless digital zoom intelligently frames around people in the room
Connectivity Plug‑and‑play USB 3.1
Resolution/FPS HD 1080p @ 30 fps
Dimensions Height: 1.40 in. (36 mm)
Width: 1.60 in. (41 mm)
Depth: 2.82 in. (72 mm)
Weight 4.2 oz (120 g)
UC Bracket Assembly
UC Engine Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client Microsoft Teams Rooms
Management Client XiO Cloud Service
Content Ingest HDMI input via CAT5 to USB 3.0 converter
NOTE: Use only DigitalMedia™ Ultra cable between the conference and content ingest devices. The maximum supported cable length is 300 ft.
Display Output Single or dual display support
Display Output Resolution 1080p
Power UC Engine: 100‑240VAC, 50/60 Hz adapter (included);
CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included)
Construction Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device
Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount;
Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions Height: 15.00 in. (381 mm)
Width: 14.50 in. (368 mm)
Maximum Depth: 1.87 in. (48 mm)
Maximum Weight 8.0 lb (3.7 kg)
UC Presentation Transmitter4
Video Input Signal Types HDMI, DisplayPort 1.2 via USB Type-C® port
Video Output Signal Types HDMI over CAT5
Resolution 1080p
Video Content Protection HDCP 1.4 and HDCP 2.2
Audio Input Signal Types HDMI, DisplayPort 1.2 via USB Type-C port
Audio Output Signal Types HDMI over CAT5
Communications Ethernet: 100 Mbps, auto-switching, auto negotiating, auto-discovery
HDMI over CAT5: HDCP, Ethernet
HDMI: HDCP
USB: USB 2.0 and USB 3.0
Connectors LAN PoE: (1) 8-pin RJ-45 connector, female;
ACC:(1) USB 3.0 Type B connector, female;
For firmware loading only;
USB A: (1) USB 2.0 Type A connector, female;
USB B: (1) USB 2.0 Type B connector, female;
USB: (1) USB 2.0 Type-C connector, female;
HDMI IN: (1) HDMI Type A, female;
To RX: (1) 8-pin RJ-45 connector, female;
Power Jack: (1) DC power connector;
LAN: (1) 8-pin RJ-45 connector, female;
Ground: (1) 6-32 screw
Indicators PWR: (1) Green LED, indicates operating power supplied via power supply
Ethernet: (2) LEDs on To RX port;
Green indicates Ethernet link status;
Amber indicates Ethernet activity
Power Supply 24VDC, 3.75A, 100-240VAC, 90 W
Device Charging Up to 60 W charging for devices connected via USB-C® port
Construction Metal, black finish, integral mounting flanges;
Vented top, front, bottom, and sides
Mounting Surface mount for mounting under table;
Attaches to a single rack rail
Dimensions Height: 1.58 in. (40 mm)
Width: 9.25 in. (235 mm)
Depth: 8.20 in. (208 mm)
