Crestron UC-M70-NC-Z Flex Tabletop Large Room Conference System for Zoom Rooms® Software

Product Overview

The Crestron UC-M70-NC-Z is a Crestron Flex tabletop large room conference system for Zoom Rooms supplied without a camera, letting integrators pair their preferred Crestron 1 Beyond or Zoom Rooms certified camera. Designed for large meeting rooms and boardrooms, this no-camera Zoom Rooms conference system centers on the Crestron Mercury (CCS-UC-1) conference device with an expansion microphone for full-room audio pickup. It supports single or dual video displays (not included) and is managed through the Crestron XiO Cloud service. The UC-M70-NC-Z installs without custom programming, providing a flexible Crestron Flex Zoom Rooms platform for camera-agnostic deployments.

Product Description

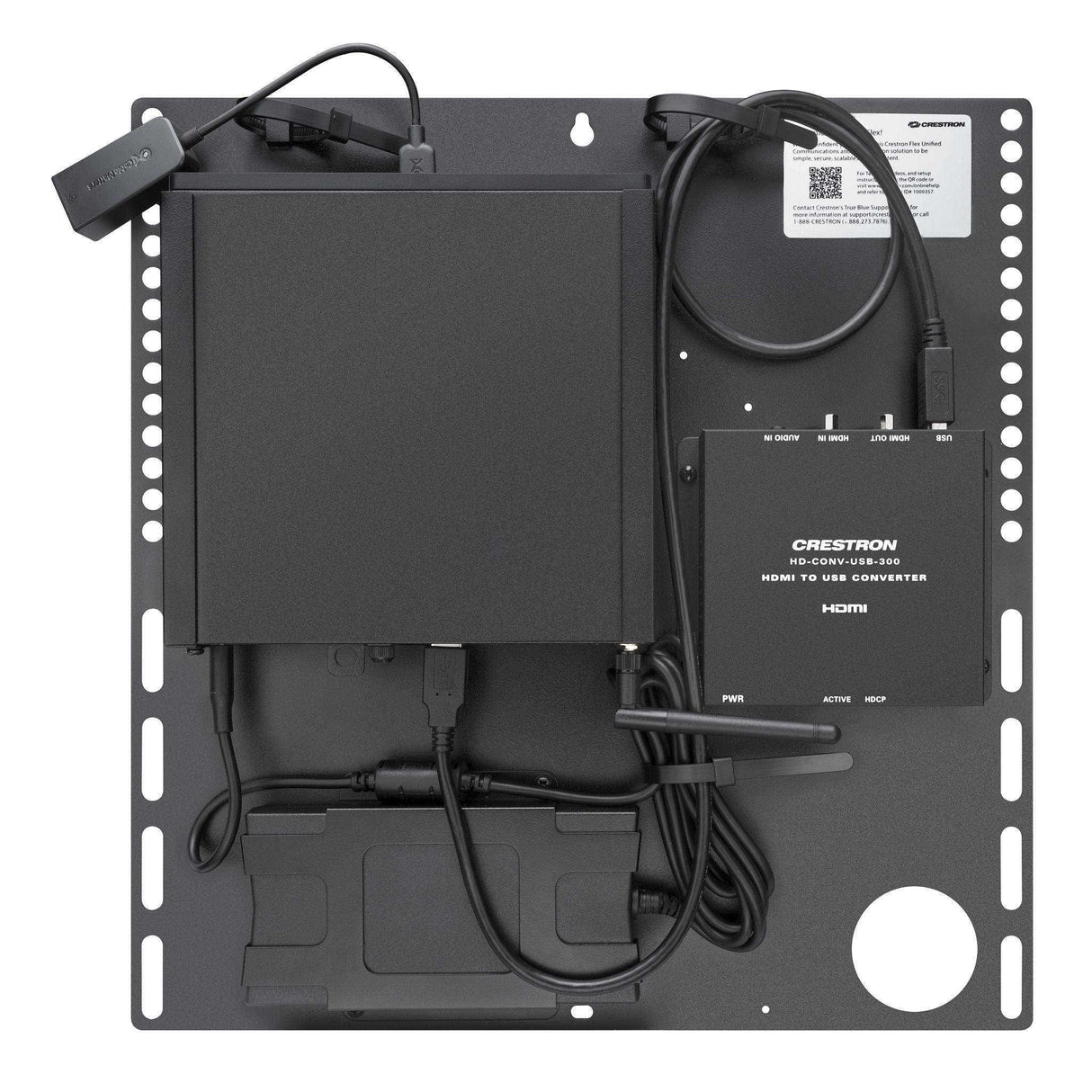

The UC-M70-NC-Z includes a CCS-UC-1 Crestron Flex tabletop conference device, a CCS-UCA-MIC expansion microphone, a PW-2420RU power supply, a UC-BRKT-200-S-Z-ASSY UC bracket assembly, and cables. As a no-camera (NC) solution, it lets designers select a camera to match the room, supporting Crestron 1 Beyond cameras such as the IV-CAMHK-12-SLVR-1B, IV-CAM-P12, and IV-CAM-P20, as well as Zoom Rooms certified third-party cameras. The conference device features a 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone for full-duplex wideband audio, and the included expansion microphone extends pickup across larger tables. The native Zoom Rooms touch screen UI provides one-touch meeting joins and a consistent operating experience. The preassembled UC bracket assembly mounts on a wall or behind a display to simplify installation, while XiO Cloud enables fleet provisioning, monitoring, and updates. For the standard camera-included large room system, see the related Crestron UC-M70-Z below.

Key Features

• No-camera flexibility — Pair the system with a Crestron 1 Beyond or Zoom Rooms certified camera selected to fit the room.

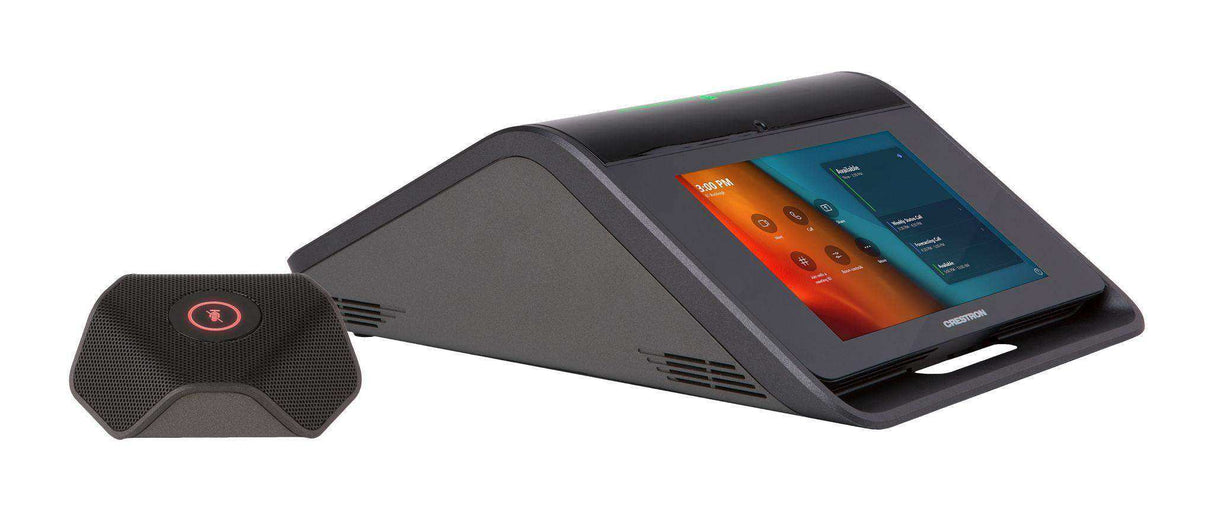

• Crestron Mercury conference device — CCS-UC-1 with a 7 in. HD color touch screen and integrated AEC-enabled USB speakerphone.
• Expansion microphone — Included CCS-UCA-MIC extends audio pickup across large conference tables.
• Native Zoom Rooms experience — One-touch meeting joins and a consistent operating UI with no end-user training.
• Dual-display support — Drives single or dual video displays (not included).
• Simplified deployment — The preassembled UC bracket assembly mounts on a wall or behind a display with no custom programming.
• XiO Cloud management — Provision, monitor, and update rooms at scale through the Crestron XiO Cloud service (available separately).

Typical Applications

• Large conference rooms and boardrooms standardizing on Zoom Rooms
• Camera-agnostic deployments specifying Crestron 1 Beyond or certified third-party cameras
• Training rooms and divisible spaces requiring extended audio pickup
• Enterprise, education, medical, military, and government rooms managed via XiO Cloud

Technical Specifications

Frequently Asked Questions

Why does the UC-M70-NC-Z not include a camera? The NC (no camera) configuration lets integrators choose a Crestron 1 Beyond or Zoom Rooms certified camera matched to the room size and layout.

Which cameras are compatible? Crestron 1 Beyond cameras including the IV-CAMHK-12-SLVR-1B, IV-CAM-P12, and IV-CAM-P20, as well as Zoom Rooms certified third-party cameras.

How many displays can it drive? The system supports single or dual video displays, which are not included. Displays must support Wake on Sync and Sleep on No Sync.

How is it installed and managed? The preassembled UC bracket assembly mounts on a wall or behind a display with no custom programming, and fleets are provisioned and monitored through XiO Cloud.

What warranty and support are available? The system carries the Crestron 3-year limited warranty, with optional Crestron Flex Care for 24/7 remote support and extended coverage. For purchasing or design assistance, Contact Creation Networks.
