Description

The UC-ENGINE-BRKT-Z-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device (CCS‑UC‑1, CCS‑UC‑1‑AV, or CCS‑UC‑1‑AV‑PLUS) and camera to a complete video conference system for use with Zoom Rooms® software. It supports single or dual video displays1 (not included) and features a UC Bracket Assembly and cables.

Native Zoom Rooms® Software Experience
The UC-ENGINE-BRKT-Z-UPGRD system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Simplified Deployment
The UC Bracket Assembly (UC‑BRKT‑200‑S‑Z‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service2 is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

  • Upgrades a single Crestron Flex tabletop conference device to a complete video conference system
  • Native Zoom Rooms® software provides a consistent, simple user experience with one‑touch meeting joins
  • Complete kit contains a UC bracket assembly and cables
  • Easy to specify and install — no custom design, programming, or software installation required
  • Network management and provisioning and system alerts through the XiO Cloud® service
  • Premium‑level support with Crestron Flex Care (optional)
  • Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
  • Supports single or dual video displays (not included)
Included Components

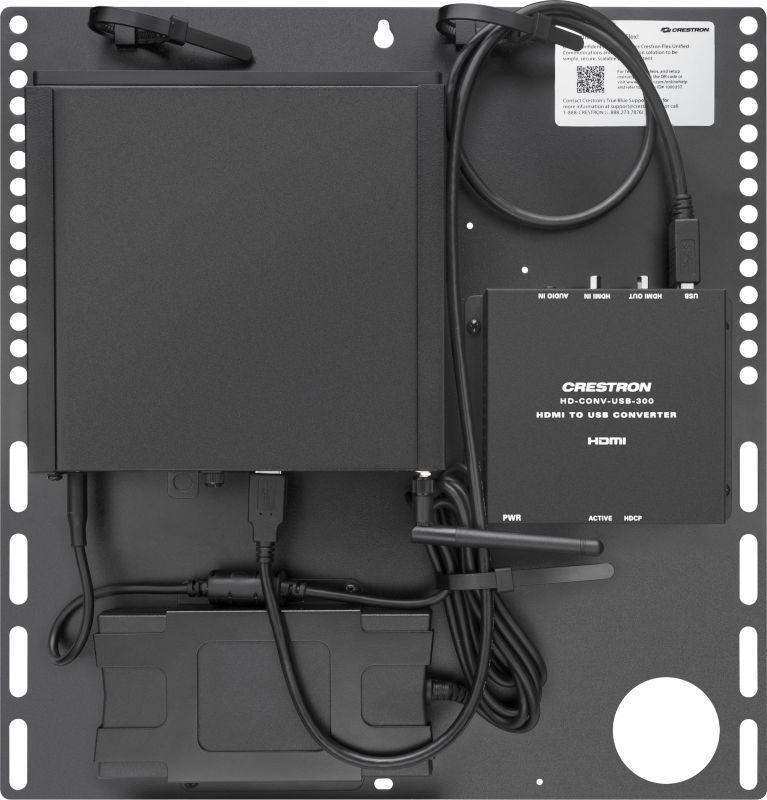

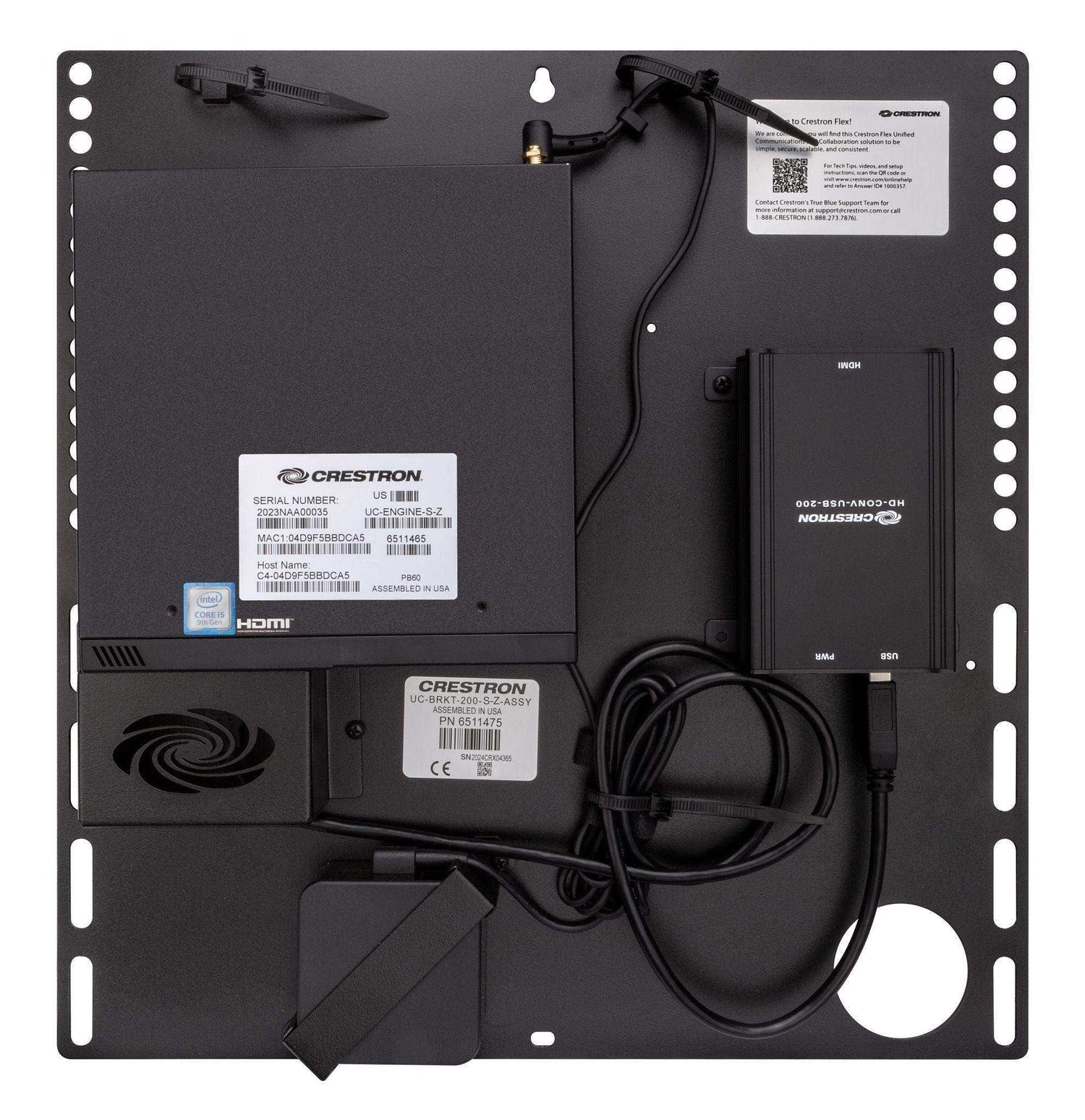

UC‑BRKT‑200‑S‑Z‑ASSY UC Bracket Assembly for Zoom Rooms systems, comprised of:
  • UC-ENGINE-S-Z: UC Engine for Zoom Rooms video
  • HDMI® to USB 3.0 converter for content ingest
  • Mounting hardware
CBL-4K-DP-HD-6 DisplayPort™ to HDMI Cable, 6 ft (1.8 m)
CBL-CAT5E-7 Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
CBL‑HD‑6 HDMI Interface Cable, 6 ft (1.8 m)
CBL‑HD‑20 HDMI Interface Cable, 20 ft (6.1 m)
CBL-USB-A-EXT-15 USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m)
UC Bracket Assembly
Mini PC Intel Core® processor with Windows® 11 IOT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client Zoom Rooms software
Management Client XiO Cloud Service
Content Ingest HDMI input via HDMI to USB 3.0 converter
Display Output Single or dual display support1
Display Output Resolution 1080p
Power 100‑240VAC, 50/60 Hz adapter (included)
Construction Metal mounting bracket, black, preassembled with UC‑ENGINE‑S‑Z and HDMI to USB 3.0 converter
Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount;
Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions Height: 15.00 in. (381 mm)
Width: 14.50 in. (368 mm)
Depth: 1.87 in. (48 mm) (UC Bracket Assembly with HD-CONV-USB-200)
1.93 in. (49 mm) (UC Bracket Assembly with HD-CONV-USB-300)
Weight 7.7 lb (3.5 kg) (UC Bracket Assembly with HD-CONV-USB-200)
7.95 lb (3.6 kg) (UC Bracket Assembly with HD-CONV-USB-300)
