The HD‑TXA‑4KZ‑101 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher for the transmission of HDMI® and analog audio signals. A CAT5e or higher twisted pair cable is used to connect the HD‑TXA‑4KZ‑101 to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD‑TXA‑4KZ‑101 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DM Lite 4K60 4:2:0 receivers are the HD‑RX‑101‑C‑E, HD‑RXC‑101‑C‑E, HD‑RX‑201‑C‑E, HD‑RX‑101‑C‑1G‑E, and HD‑RXC‑101‑C‑1G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E(‑POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD‑TXA‑4KZ‑101 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD‑TXA‑4KZ‑101. In addition, control system programming and .AV Framework™ software support of the HD‑TXA‑4KZ‑101 is hosted by the switcher.
Features
- Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
- Point-to-point extension of HDMI and analog audio signals over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- Analog audio embedding
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Lite receiver or DMPS Lite switcher
Specs
| Video | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 (DVI and Dual-Mode DisplayPort™ interface compatible4) | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Lite® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI, analog stereo | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Lite | |||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||
| Analog Format | Stereo 2-channel | |||||||||||||||||||||||||||||||||||||
| Analog-to-Digital Conversion | 24-bit 48 kHz | |||||||||||||||||||||||||||||||||||||
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A‑weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: ≤80 dB |
|||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC pass-through | |||||||||||||||||||||||||||||||||||||
| DM Lite | HDCP 2.3, EDID pass-through | |||||||||||||||||||||||||||||||||||||
| Connectors | ||||||||||||||||||||||||||||||||||||||

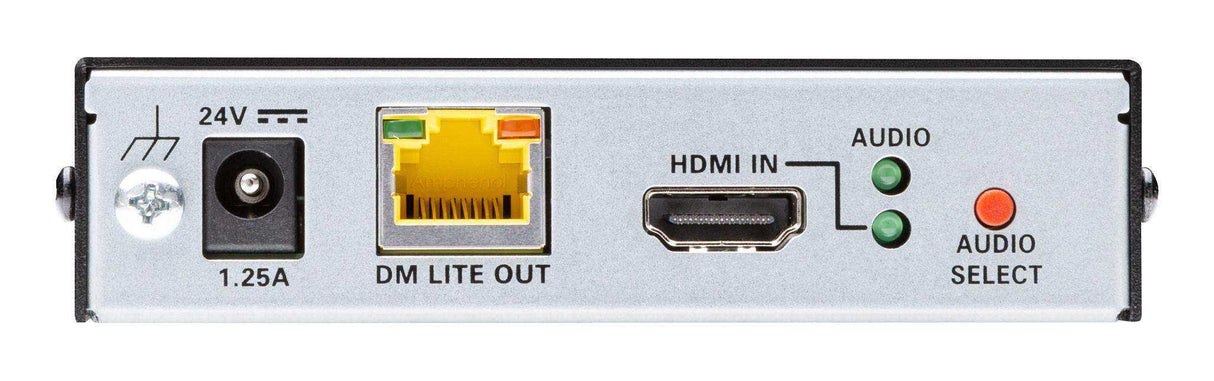

| HDMI IN | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort™ interface compatible4 |
|||||||||||||||||||||||||||||||||||||
| DM LITE OUT | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Lite output port for connection to a DM Lite receiver or DMPS Lite™ switcher1, 5 |
|||||||||||||||||||||||||||||||||||||
| 24V 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included3 |
|||||||||||||||||||||||||||||||||||||
| AUDIO IN | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio input; Input Impedance: 24k Ohms balanced/unbalanced; Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced |
|||||||||||||||||||||||||||||||||||||
| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that a DM Lite link is established. | |||||||||||||||||||||||||||||||||||||
|
PWR |
(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||
| AUDIO SELECT | (1) Push button, enables selection of HDMI or analog audio | |||||||||||||||||||||||||||||||||||||
| AUDIO, HDMI IN | (1) Green LED, indicates that HDMI audio is selected | |||||||||||||||||||||||||||||||||||||
| AUDIO IN | (1) Green LED, indicates that analog audio is selected | |||||||||||||||||||||||||||||||||||||
| HDMI IN | (1) Green LED, indicates that the device is receiving an HDMI signal | |||||||||||||||||||||||||||||||||||||
| DM LITE OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Lite link is established. Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video. |
|||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||
| Power Pack (Included) | Input: 100-240VAC Output: 24VDC 2.5A Model: PW-2420RU3 |
|||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||
| Enclosure | ||||||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented sides, 2 mounting brackets included | |||||||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail | |||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||
| Height | 4.13 in. (105 mm) | |||||||||||||||||||||||||||||||||||||
| Width | 4.18 in. (106 mm) | |||||||||||||||||||||||||||||||||||||
| Depth | 1.08 in. (27 mm) | |||||||||||||||||||||||||||||||||||||
