Crestron Wi-Fi Network I/O Extender with 4 Relay Ports - CEN-IO-RY-204

Availability: Call for Availability
Crestron SKU: CEN-IO-RY-204
No reviews
Price:
$408.00

Description

Spec Sheet

The Crestron® CEN‑IO‑RY‑204 is a compact and cost‑effective wireless I/O extender designed to easily expand the available relay ports within a commercial or residential system. A small form factor allows the CEN‑IO‑RY‑204 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The four onboard relay ports enable direct integration with all kinds of third-party equipment.

The CEN‑IO‑RY‑204 communicates to the local network over Wi‑Fi® wireless communications, allowing the connected equipment to be remotely controlled and monitored from a computer or tablet. Power is conveniently supplied to the CEN‑IO‑RY‑204 via an included 5 VDC power pack.

Security Protocols
The CEN‑IO‑RY‑204 supports the following security protocols to help protect against service interruptions and malicious intrusions:

  • TLS 1.2 for control system connections
  • Local Authentication for console and control system connections


Advanced Wi-Fi Wireless Performance
Crestron enhanced Wi‑Fi performance is optimized to deliver fast, dependable wireless communications with a 50 ft (15 m) omnidirectional range (conditions permitting). The choice of 802.11 a, b, g, and n protocols affords reliable, high‑speed wireless connectivity in most RF environments. Up to five wireless access points can be memorized for easy connectivity within larger networks.

Integrator Friendly Enclosure
The CEN‑IO‑RY‑204 features the Crestron IFE form factor, a compact Integrator Friendly Enclosure design that fits almost anywhere and enables a variety of installation options. Its shape allows multiple CEN‑IO and other IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to a flat surface or snapped onto a standard DIN rail. Rack mount and pole mount kits are also available.
  • Compact, cost-effective wireless network I/O extender
  • Communicates to the local network over Wi-Fi® wireless communications
  • Up to five wireless access points can be memorized
  • Provides four relay ports
  • Installer setup via Crestron Toolbox™ software or web browser
  • Supports TLS 1.2 and Local Authentication security protocols
  • Powered via included 5 VDC power pack
  • Compact, stackable IFE micro form factor
  • Surface or DIN rail mountable
  • Available rack mount and pole mount options
    Wireless Communication
    Transceiver IEEE 802.11a/b/g/n Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
    Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
    Range Up to 50 feet (15 m), subject to site-specific conditions
    Gateway Requires an 802.11a/b/g/n wireless access point and Ethernet-enabled Crestron control system

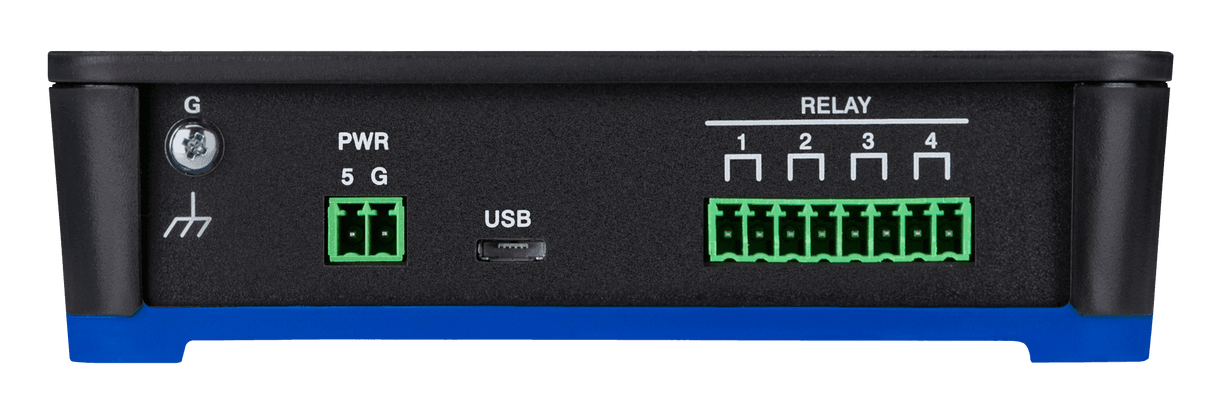

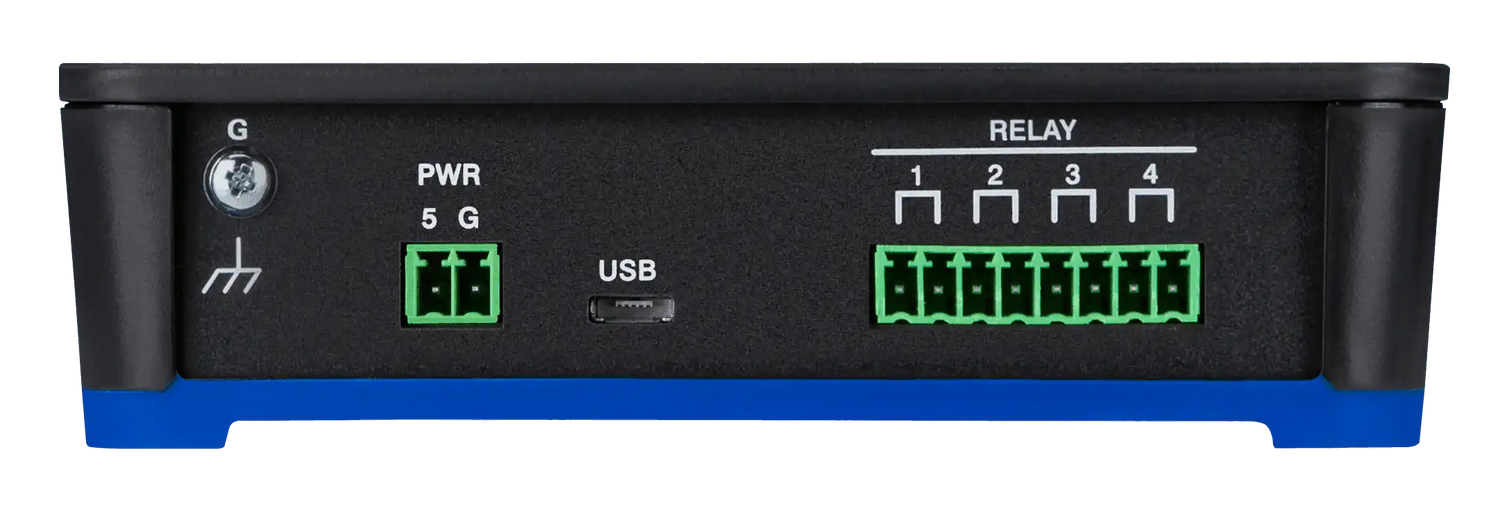

    Connectors
    RELAY (1) 8-pin 3.5 mm detachable terminal block;
    Comprises (4) normally open, isolated relays;
    Rated 1 A, 30 VAC/VDC;
    MOV arc suppression across contacts
    USB (1) Micro-USB Type B console port;
    For setup via Crestron Toolbox™ software
    PWR (1) 2-pin 3.5 mm detachable terminal block;
    5 VDC power input for included power pack
    G (1) 4-40 screw;
    Chassis ground lug

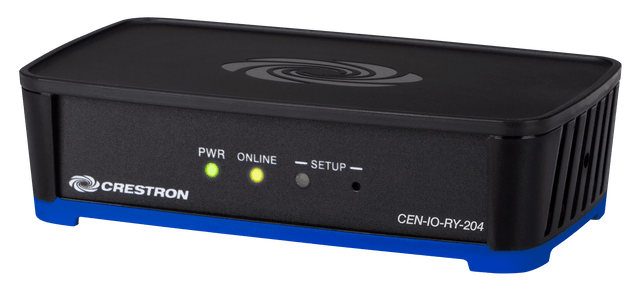

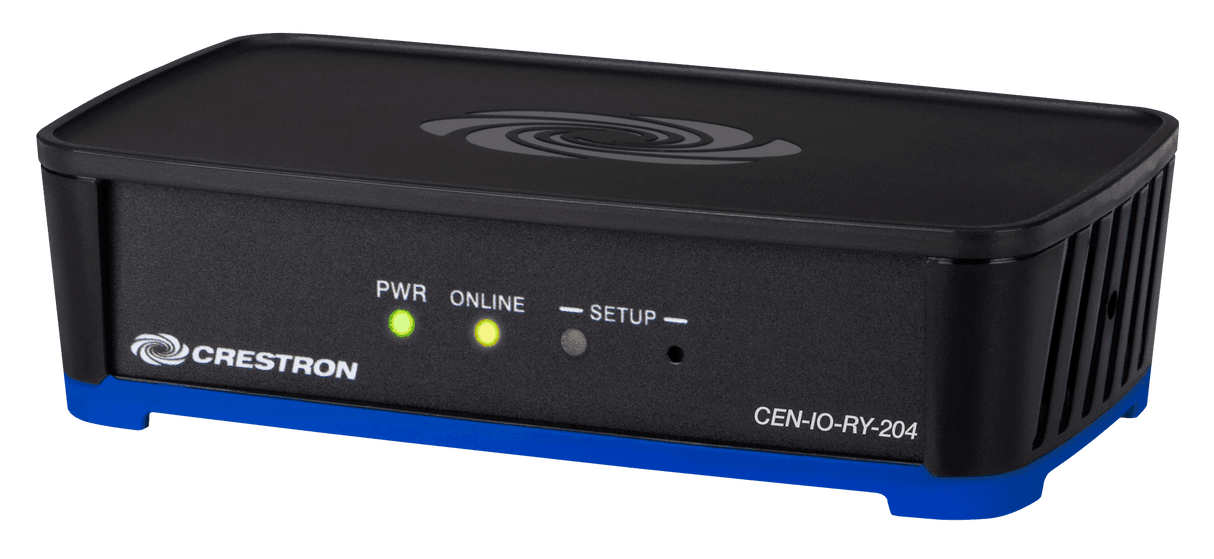

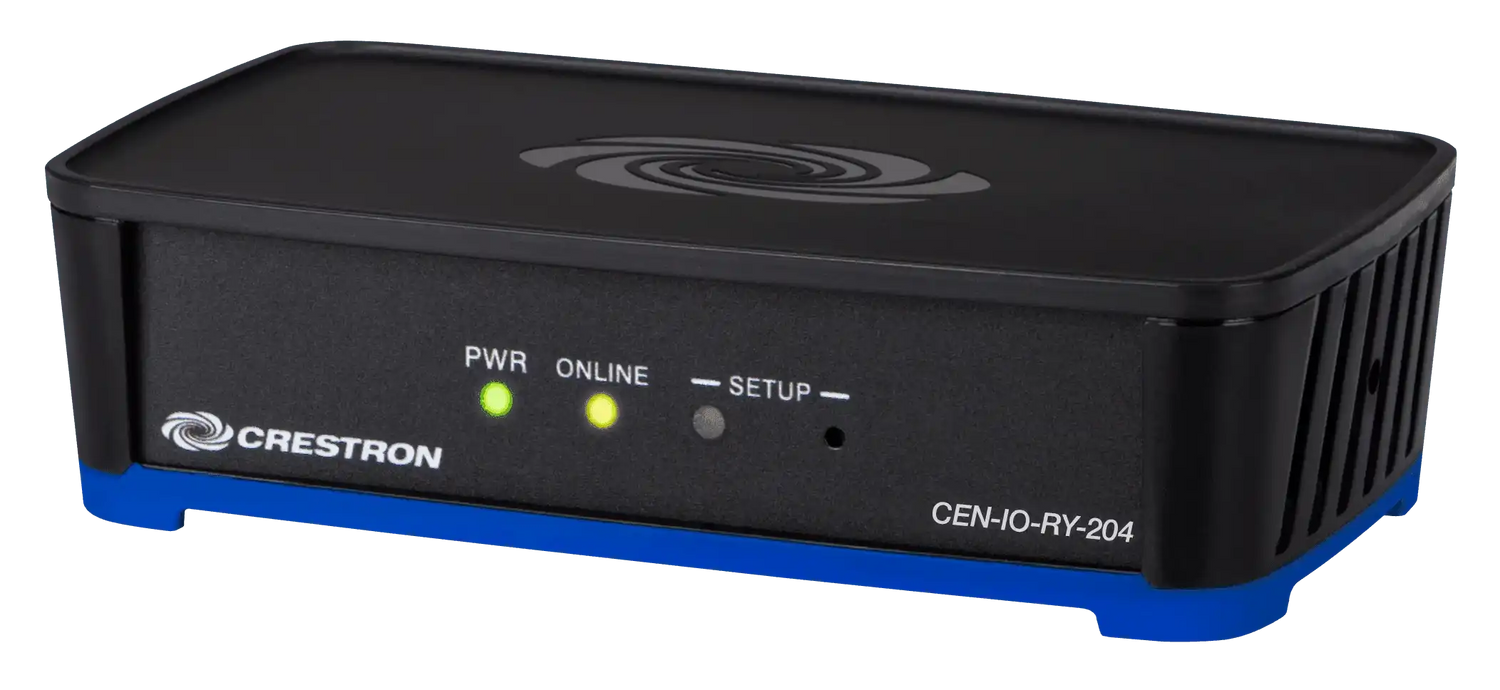

    Controls and Indicators
    PWR (1) Bicolor green/amber LED, indicates that power is present, amber indicates that the device is booting and not yet ready to operate, green indicates that device is ready to operate
    ONLINE (1) Green LED, indicates that the device is connected to a Crestron control system via Wi-Fi wireless communications
    SETUP (1) Red LED and (1) recessed pushbutton for web setup, LED indicates that the SETUP pushbutton has been pressed (times out automatically)2
    Power
    Power Pack (included) Input: 100–240 VAC, 50/60 Hz;
    Output: 1.2 A @ 5 VDC;
    Model: PW-0510WUL
    Power Consumption 0.7 W typical
    Environmental
    Temperature 41 to 104 °F (5 to 40 °C)
    Humidity 10% to 90% RH (noncondensing)
    Heat Dissipation 2.3 BTU/hr
    Construction
    Enclosure IFE micro form factor, black and blue plastic
    Mounting Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount;
    Occupies 8 DIN module spaces (144 mm);
    Surface/DIN rail mounting bracket included, optional rack mount and pole kits sold separately1
    Dimensions
    Height 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
    Width 5.04 in. (128 mm), 5.36 in. (136 mm) with bracket
    Depth 2.86 in. (73 mm), 3.33 in. (85 mm) with bracket
    Weight
    6.4 oz (180 g)
    Compliance
    Regulatory Model: CEN-IO
    UL® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
