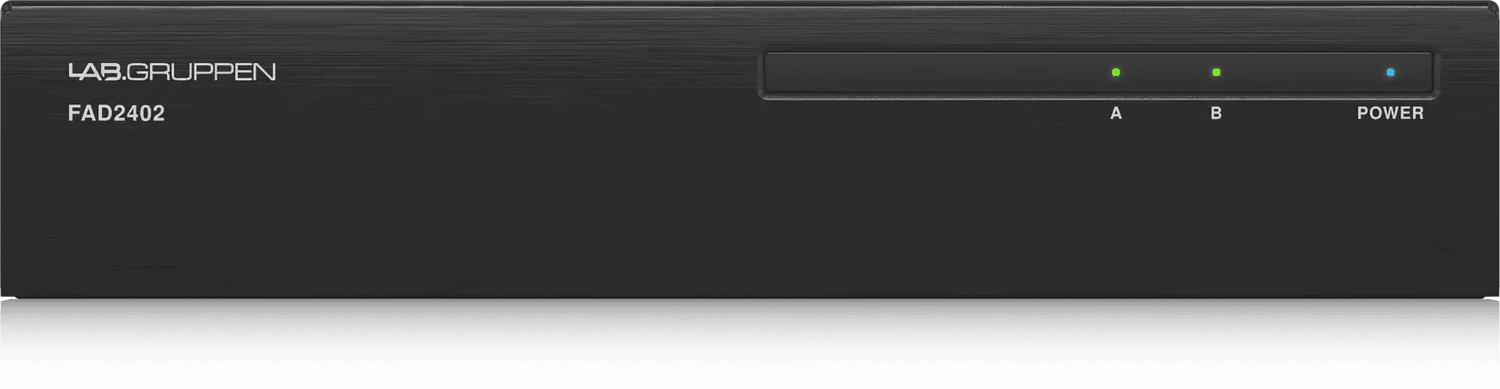

Lab Gruppen FAD2402 2 x 240 Watt Commercial Amplifier with Direct Drive Technology, Dante Networking and Energy Star Certification - 000-DCP02-00010

Product Overview

The Lab Gruppen FAD2402 is a 2-channel, 2x240W commercial power amplifier combining Direct Drive Technology with Dante network audio for IP-based audio distribution in commercial AV installations. Designed for integrators specifying networked distributed audio systems, the FAD2402 eliminates both external output transformers and analog audio runs, delivering 70V/100V constant-voltage audio directly over standard Ethernet infrastructure. It is Dante Domain Manager (DDM) ready, making it well-suited for large-scale or multi-zone commercial deployments.

Product Description

The FAD2402 delivers 240 watts per channel across two independently switchable output zones, each configurable for low-impedance (4/8 ohm) or high-impedance (70V/100V) constant-voltage speaker lines via rear-panel dipswitch. Lab Gruppen's Direct Drive Technology allows the amplifier to output 70V or 100V distributed audio without a bulky external output transformer, reducing installation cost and rack depth. A single Dante network audio interface provides both audio transport and device control over a standard IP network, replacing point-to-point analog cabling with a scalable, routable infrastructure. The FAD2402 is Dante Domain Manager ready, enabling centralized control, role-based access, and secure management of large Dante networks from a single platform. Fanless convection cooling eliminates mechanical noise, making the FAD2402 appropriate for quiet office environments, conference rooms, and hospitality spaces. Auto Ramp circuitry detects incoming signal to bring the amplifier on smoothly and transitions to a low-power sleep state after 20 minutes of inactivity, supporting Energy Star certification. The unit ships with joining brackets supporting rack, wall, or table mounting in standard commercial AV enclosures. Its Euroblock input/output connectors provide secure, tool-free termination for permanent installation wiring.

Key Features

• Dante Network Audio — Receives audio over standard IP networks, replacing analog audio cabling runs with scalable Ethernet infrastructure.
• Direct Drive Technology — Outputs 70V/100V distributed audio directly without an external output transformer, reducing cost and installation complexity.
• 2x240W Dual-Zone Output — Powers two independent speaker zones at up to 240W per channel across 4/8 ohm or 70V/100V loads.
• Dante Domain Manager Ready — Supports centralized, role-based management of large Dante audio networks for enterprise and institutional deployments.
• Fanless Convection Cooling — Silent operation with no moving parts, appropriate for noise-sensitive commercial environments.
• Auto Ramp & Sleep Mode — Signal-activated power-on and automatic 20-minute sleep timer reduce energy consumption between use periods.
• Energy Star Certified — Meets commercial energy efficiency standards for green building and institutional procurement requirements.
• Flexible Mounting — Half-rack 1U enclosure with brackets for rack, wall, or table installation.

Typical Applications

• Networked distributed background music in hotels and resorts
• Corporate campus multi-zone Dante audio systems
• Retail chain audio distribution over IP infrastructure
• House of worship campus-wide Dante audio networks
• Government and institutional facility audio systems
• Conference room and boardroom background music
• Training room and auditorium distributed audio

Technical Specifications

Frequently Asked Questions

Q: What Dante channel count does the FAD2402 support?

A: The FAD2402 receives Dante audio over a standard IP network. The Dante interface routes network audio channels to the two amplifier output channels. Exact Dante channel count should be confirmed against the current Lab Gruppen FAD2402 datasheet for your firmware version.

Q: Does the FAD2402 require a separate output transformer for 70V speaker lines?

A: No. Direct Drive Technology allows the FAD2402 to output 70V or 100V constant-voltage audio directly from its amplifier stage. No external transformer is needed, reducing rack space and wiring costs.

Q: Is the FAD2402 compatible with Dante Domain Manager?

A: Yes. The FAD2402 is DDM Ready, supporting centralized Dante network management, user role assignment, and access control through Audinate's Dante Domain Manager platform.

Q: Can the two output channels be configured independently for different impedances?

A: Yes. Each output channel is independently switchable between low-impedance (4/8 ohm) and high-impedance (70V/100V) operation via rear-panel dipswitches.

Q: What network infrastructure does Dante require?

A: Dante operates over standard Gigabit Ethernet using standard Cat5e or Cat6 cabling and managed switches. No proprietary network hardware is required, making it compatible with existing enterprise IT infrastructure.

Q: How does the FAD2402 handle power management?

A: Auto Ramp circuitry detects input signal and brings the unit on automatically. After 20 minutes without an input signal, the amplifier transitions to sleep mode, reducing power draw in line with Energy Star requirements.
