Cisco Board Pro 55 CS-BRD55P-NR-K9 – No-Radio 55-Inch Collaboration Board

Product Overview

The CS-BRD55P-NR-K9 Cisco Board Pro 55 no-radio is the wired-only build of the first-generation Board Pro, supplied without the Wi-Fi and Bluetooth radios so it can be accepted into facilities that prohibit wireless emitters on the meeting-room floor.

This is a first-generation (G1) part number. Cisco announced end-of-life for Board Pro 55 G1 on May 28, 2024, with an end-of-sale date of November 26, 2024 and a last date of support of November 30, 2029; Cisco names the Board Pro 55 G2 equivalents as the migration path.

It remains the correct order for an organisation extending or repairing an existing G1 estate, where a matching no-radio endpoint is a security requirement rather than a preference.

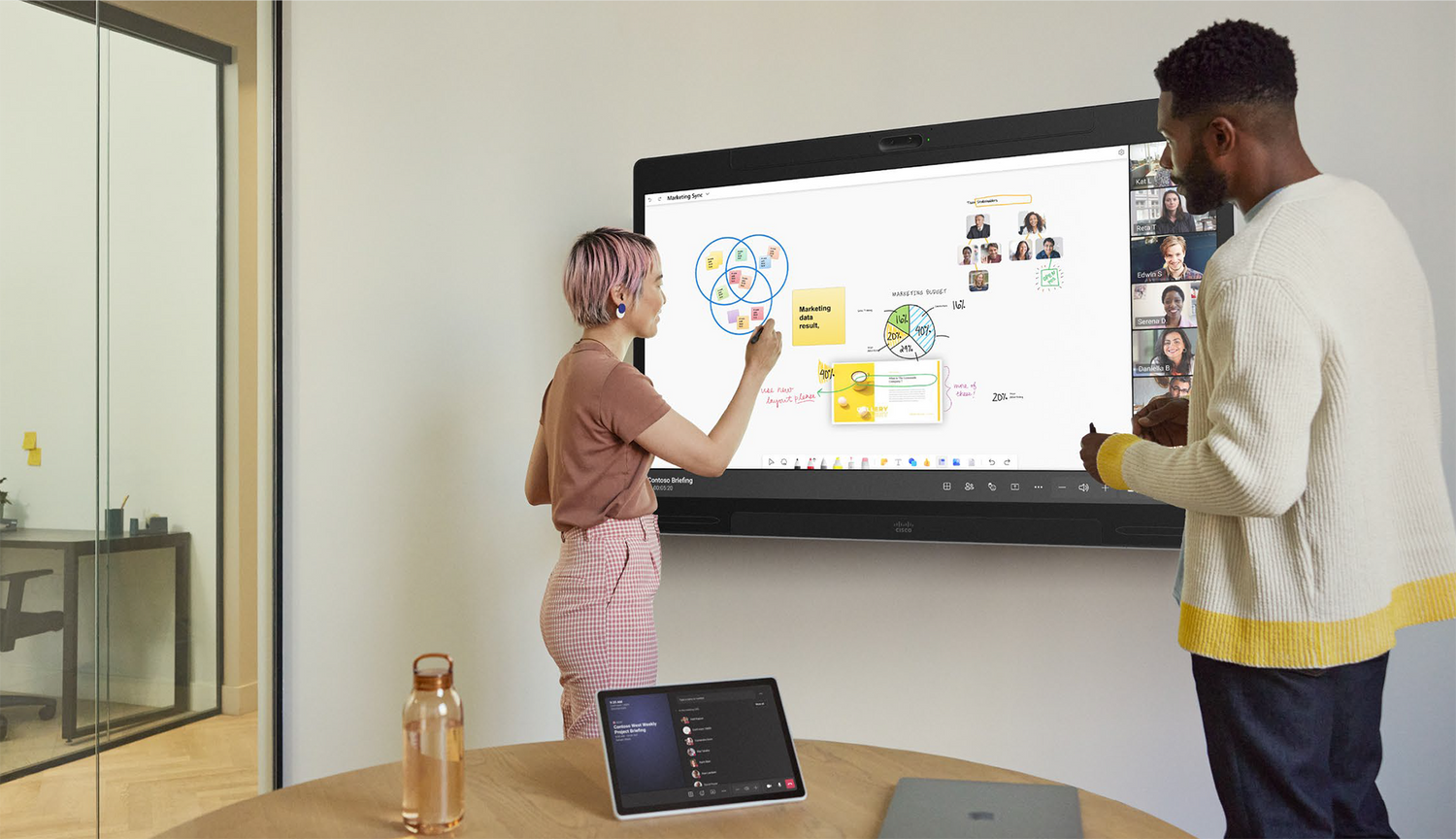

Everything else is the standard Board Pro 55: a 55-inch 4K touch display, a dual 4K 12 MP camera system, a 14-element beamforming microphone array and an integrated multi-channel loudspeaker system.

Product Description

Removing the radio changes the deployment model rather than the meeting experience. The board attaches to the network over its 10/100/1000 RJ-45 LAN port only, so the structured cabling and switch port have to be in place at the wall position before the unit is hung, and the accreditation paperwork for the room does not have to account for an 802.11 emitter.

Cisco lists a second 10/100/1000 Ethernet port with 802.3af PoE and a 15.4 W budget dedicated to a Cisco Room Navigator, which means the touch controller draws power from the board itself instead of a separate injector or a table switch port. A third Ethernet port is provided for external camera control.

Local sources connect through a USB-C DisplayPort Alternate Mode input at 4Kp60 and an HDCP-compatible HDMI 2.0 type A input at 4Kp30, with a single HDMI 2.0 type A output at 4Kp60 for a repeat screen. Two analog microphone inputs and a 3.5 mm stereo line out are available where the room already has a rack, and audio pickup extends over the audio-over-IP Ethernet port to as many as three Cisco Table Microphone Pro units.

Call control is unchanged by the no-radio build. Cisco documents Webex cloud activation, native on-premises registration to Cisco Unified Communications Manager or Cisco Expressway from version 10.5.2 with the device pack, third-party H.323 gatekeepers and standards-based SIP proxies, and Microsoft Teams Rooms on Android. Interop reaches Microsoft Teams through CVI or WebRTC, Google Meet through WebRTC, and Zoom over SIP using the Zoom Conference Room Connector.

Board-only weight is 40 kg and the G1 unit measures 1228 x 69 x 700 mm, so the wall structure and the lifting plan should be confirmed before the install date; lifting handles are supplied in the box. A wall mount kit ships by default and is dropped from the carton when a wall stand or floor stand is ordered instead.

Buyers comparing this against current-generation stock can review the wider Cisco range in our Cisco collaboration catalog and the alternative touch endpoints in interactive displays. If the room is being rebuilt rather than repaired, the current medium room solutions are the better starting point.

Key Features

• No-Radio hardware build — Wi-Fi and Bluetooth are not available on this version, which removes the wireless emitter from the security review for the room.
• 55-inch 4K UHD touch display — The 3840 x 2160 IPS panel runs at 350 cd/m2 with an 8 ms response time and a +/- 89 degree viewing angle in all directions.
• Dual 4K 12 MP camera system — A main 85-degree lens and a 120-degree ultra-wide lens deliver automatic best view and speaker tracking without an auxiliary camera on the wall.
• 14-element beamforming microphone array — Room pickup is handled by the integrated array, so a small or medium room needs no ceiling or table microphones to be commissioned.
• PoE port for the touch controller — An 802.3af Ethernet port with a 15.4 W budget powers and pairs a Cisco Room Navigator directly from the board.
• Wired audio expansion — The audio-over-IP Ethernet port supports up to three Cisco Table Microphone Pro units, plus two analog microphone inputs and a 3.5 mm line out for rack-based systems.
• Documented on-premises registration — The endpoint registers natively to Cisco Unified Communications Manager or Cisco Expressway from version 10.5.2 with the device pack, which suits closed networks with no cloud path.

Typical Applications

• Government space — Facilities that bar wireless emitters can accept a wired-only endpoint without a waiver for the room.
• Conference room — Cisco positions the Board Pro for small and medium-sized conference rooms, which is where the 4-metre microphone coverage lands.
• Training room — The original Board Pro datasheet names training rooms alongside conference rooms as the intended environment.
• Commercial meeting space — Organisations standardised on G1 hardware can keep one room build across the estate while the fleet is still supported.

Technical Specifications

Frequently Asked Questions

Is the CS-BRD55P-NR-K9 still available to order new?

Cisco set the Board Pro 55 G1 end-of-sale date at November 26, 2024, with a last date of support of November 30, 2029. Remaining stock is sold for installed-base support and break/fix work; contact Creation Networks to confirm what is currently on the shelf.

What exactly is removed on the no-radio version?

Cisco lists Wi-Fi 802.11a/b/g/n/ac (2.4 and 5 GHz) as not available in non-radio versions. The board is therefore attached over its wired 10/100/1000 Ethernet LAN port only.

Does the no-radio build change how the Room Navigator is connected?

No. The dedicated 802.3af PoE Ethernet port with a 15.4 W budget is a wired connection and is unaffected, so the Room Navigator still powers and pairs from the board.

What call-control platforms does it register to?

Cisco documents Webex cloud activation, native registration to Cisco Unified Communications Manager or Cisco Expressway from version 10.5.2 with the device pack, third-party H.323 gatekeepers and standards-based SIP proxies, and Microsoft Teams Rooms on Android.

Can it join Zoom and Microsoft Teams meetings?

Cisco lists interop with Microsoft Teams through CVI or WebRTC, Google Meet through WebRTC, and Zoom over SIP using the Zoom Conference Room Connector.

What is the minimum software version?

RoomOS 10.11 or later for the G1 Board Pro.

What warranty applies?

Cisco publishes a 90-day limited liability warranty for this product class. Warranty is handled per Cisco's standard terms; contact Creation Networks to confirm coverage for your order.
