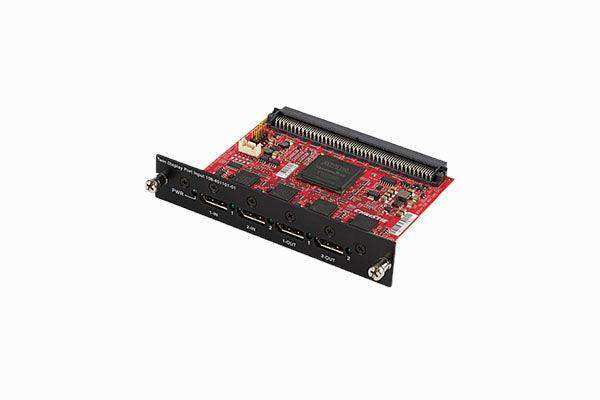

Christie Twin DisplayPort Input Card for Select Projectors - 108-451101-01

Product Overview

The Christie Twin DisplayPort Input Card (108-451101-01) adds two DisplayPort inputs to compatible Christie projectors, accepting signals compliant with the VESA DisplayPort 1.1a standard with HDCP support. Two DisplayPort outputs provide loop-through for each input. It is compatible with the Boxer 4K30, D4K2560/D4K3560, and Mirage series projectors.

Product Description

High-resolution graphics sources — workstations, media servers, and image generators — commonly output DisplayPort, and this card lets Christie's modular large-venue projectors accept those feeds natively. Each of the two inputs handles VESA DisplayPort 1.1a-compliant signals independently, and HDCP compatibility supports protected content paths. The matching loop-through outputs re-drive each input downstream, which simplifies multi-projector arrays: a single source can chain across blended or stacked projectors without external distribution hardware. That architecture is particularly relevant on the Mirage series, where multiple synchronized projectors handle 3D and simulation workloads, and on the Boxer 4K30 and D4K2560/3560 platforms used for high-resolution staging and fixed installations. The card slots into the projector's modular input bay, so rental and staging teams can reconfigure I/O per show alongside SDI, HDMI, and other card options.

Key Features

• Two DisplayPort Inputs — independent inputs for dual-source or primary/backup configurations.
• VESA DisplayPort 1.1a Compliance — standards-based connectivity for workstation and media server feeds.
• HDCP Compatible — supports protected content workflows.
• Loop-Through Outputs — two DisplayPort outputs chain signals across multi-projector arrays.
• Boxer / D4K / Mirage Compatibility — fits Boxer 4K30, D4K2560, D4K3560, and Mirage series projectors.
• Modular Slot-In Design — reconfigurable input bay supports changing show requirements.

Typical Applications

This card supports Christie projector systems in simulation and visualization facilities running Mirage series projectors, large-venue staging with Boxer 4K30 rigs, fixed installations on D4K platforms, and any deployment fed by DisplayPort-native graphics workstations or media servers. Browse companion input cards in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors accept the 108-451101-01?
The Christie Boxer 4K30, D4K2560, D4K3560, and Mirage series projectors with modular input card bays.

What DisplayPort version does it support?
Signals compliant with the VESA DisplayPort 1.1a standard, with HDCP compatibility for protected content.

What do the two outputs do?
They provide loop-through for each input, letting a source signal chain to additional projectors in blended or stacked arrays.

Can both inputs be used at once?
Yes, the two DisplayPort inputs operate independently for dual-source or redundant configurations.
