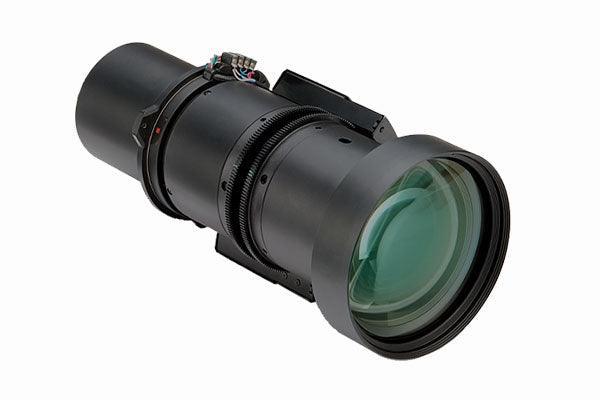

Christie 2.0 to 4.0:1 Zoom Lens - 140-111104-01

Product Overview

The Christie 140-111104-01 is a 2.0 to 4.0:1 zoom lens built for the Christie H Series, specifically the D12HD-H and D12WU-H 1DLP projectors. Its 2x zoom range places the projector at two to four times the image width from the screen, covering the medium-to-long throw positions common in ballrooms, auditoriums, and rental staging. Zoom and focus memory let integrators store and recall lens positions for repeatable setups. It is a genuine Christie optic matched to the H Series light engine.

Product Description

A wide 2.0–4.0:1 throw range gives this lens unusual placement flexibility: the same optic works whether the projector hangs mid-room or at the back of a long venue. On the D12WU-H (WUXGA), the lens supports vertical offset of ±120% (±720 pixels) and horizontal offset of ±50% (±480 pixels); on the D12HD-H (HD), vertical offset extends to ±133% (±720 pixels) with the same ±50% horizontal range. That generous shift envelope means the projector rarely needs to sit dead-center on the screen axis, simplifying rigging around trusses, HVAC, and lighting positions. Zoom and focus memory stores calibrated positions so a touring rig or multi-purpose room can return to a known-good image instantly. The lens ships ready to install on the H Series bayonet and weighs in at a manageable 6.45 lb packaged. For integrators standardizing on the H Series, this is the workhorse mid/long-throw option.

Key Features

• 2.0–4.0:1 Throw Ratio — one lens covers mid-room through rear-of-house projector positions.
• 2x Optical Zoom — fine-tune image size without moving the projector.
• Zoom and Focus Memory — store and recall lens positions for fast, repeatable setups.
• Generous Lens Shift — up to ±120% vertical (WU) / ±133% vertical (HD) and ±50% horizontal offset for flexible mounting.
• H Series Matched Optics — designed for the Christie D12HD-H and D12WU-H imaging path.
• Rental-and-Staging Friendly — compact packaged size and repeatable positioning suit touring inventories.

Typical Applications

Ideal for hotel ballrooms and conference centers, auditoriums and lecture halls, houses of worship, and rental and staging inventories supporting Christie H Series projectors. Find compatible projectors and additional H Series lenses in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors does this lens fit?
It is designed for the Christie D12HD-H and D12WU-H H Series 1DLP projectors.

How far from the screen can the projector sit?
Between 2 and 4 times the projected image width — for a 12-foot-wide image, anywhere from 24 to 48 feet.

Does it support motorized adjustment?
Yes. The lens provides zoom and focus memory, so stored positions can be recalled through the projector for repeatable alignment.

Is the lens shift range the same on both projector models?
Horizontal shift is ±50% on both; vertical shift is ±120% on the D12WU-H and ±133% on the D12HD-H.
