Chauvet Professional Ground Stack Kit - GROUNDSTACKKIT
Product Overview

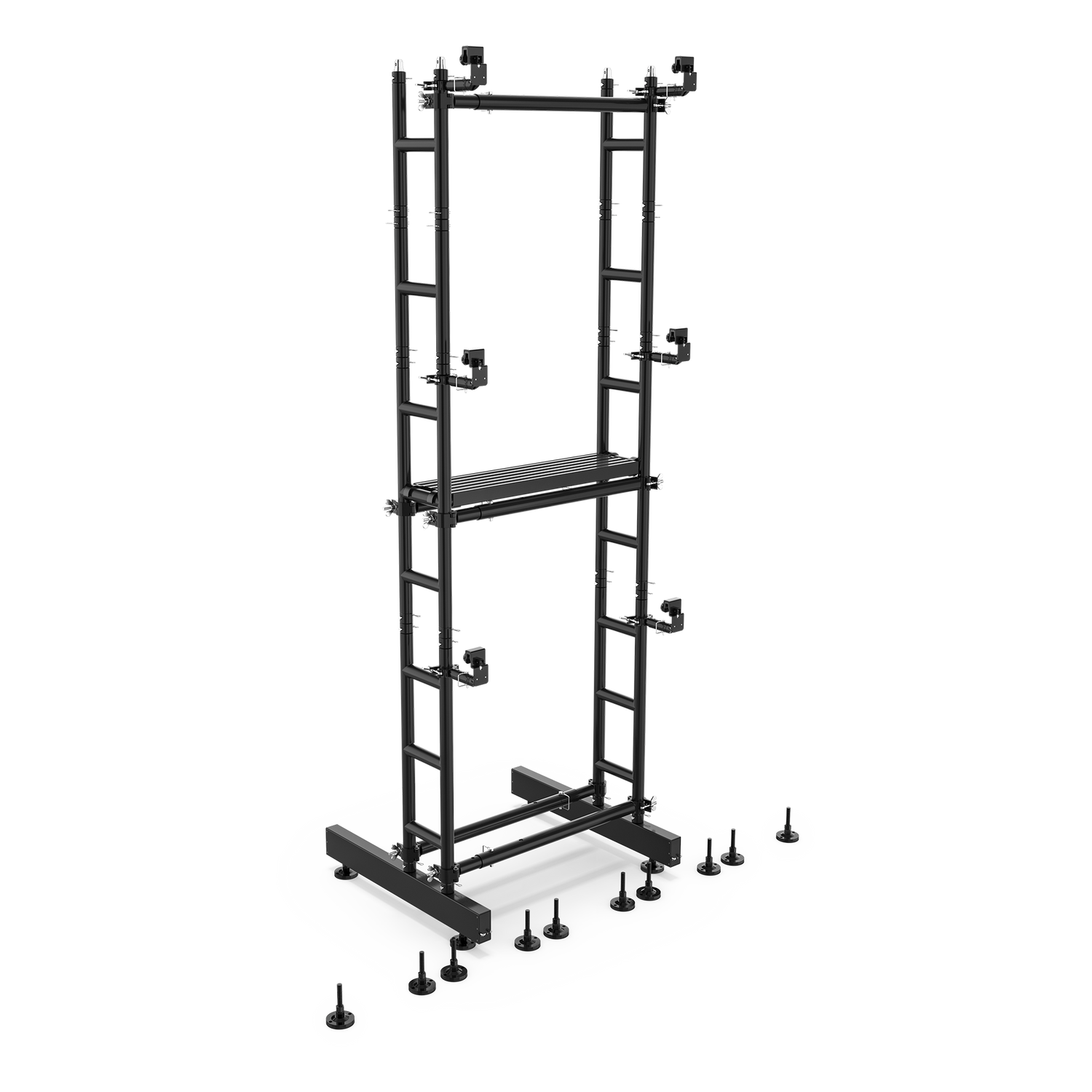

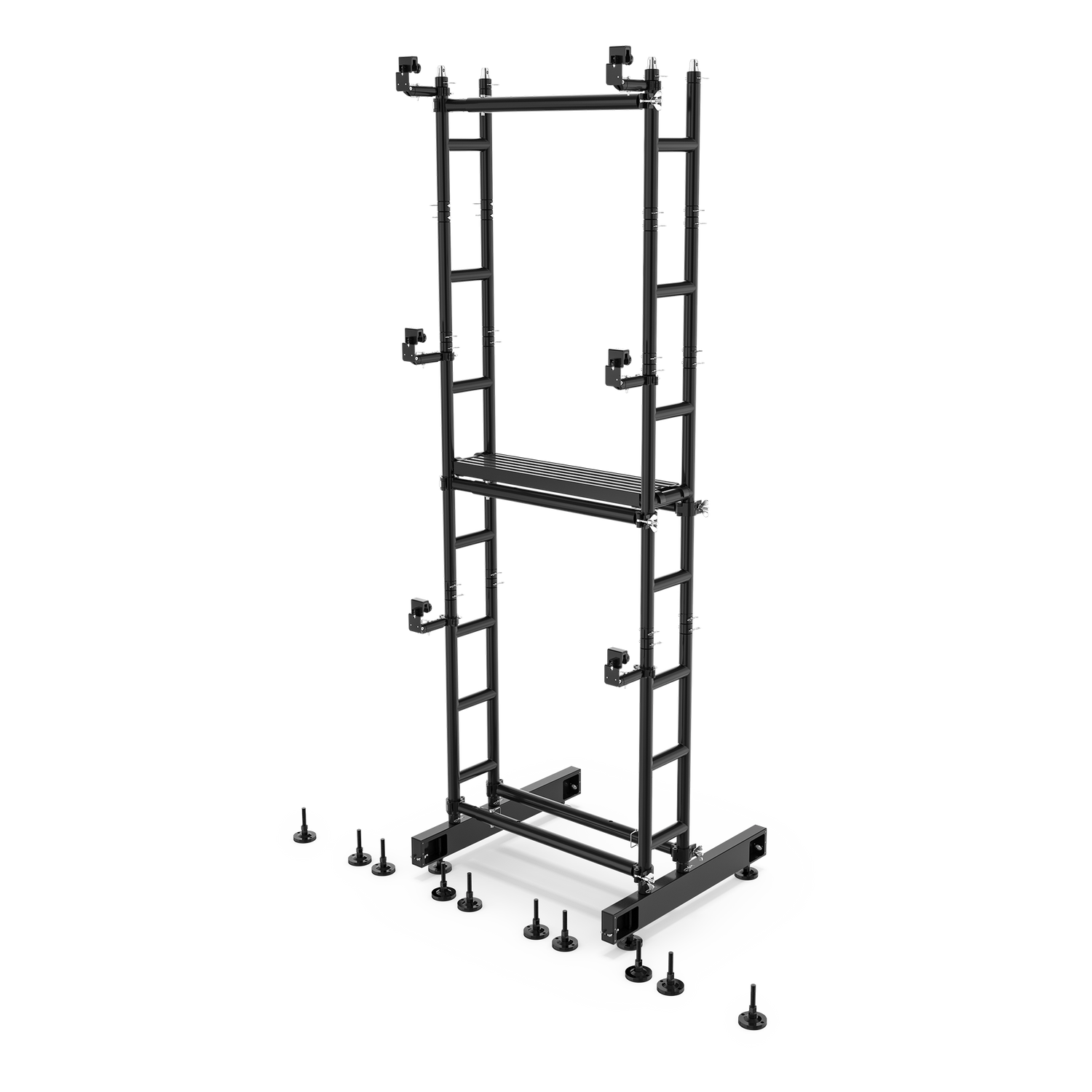

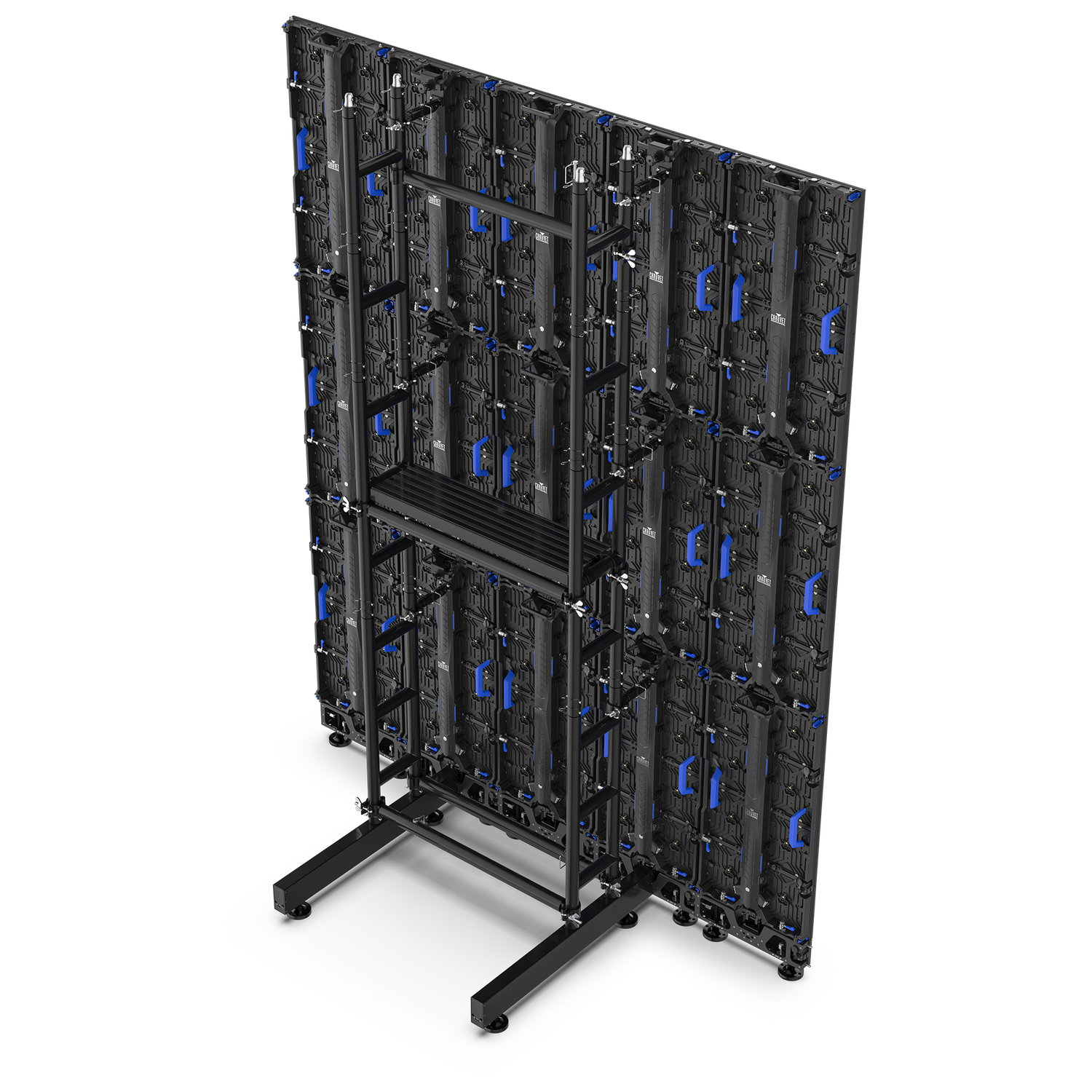

The Chauvet Professional Ground Stack Kit is a complete, scalable ground-support solution for stacking REM1, REM3IP, F2, F3/F3X, F4IP/F4XIP, and F5IP video panels, supporting flat, convex (2.5°/5°), and concave (5°/10°) video walls. This climbable system includes a platform for rigging taller walls, suits walls 4.92–6.56 ft (1.5–2 m) wide and up to 9.85 ft (3 m) tall, and ships in a road case. Note: Dual Function Rig Bars (not included) are required for operation.
Features
- Complete Ground Support — Full system for safely stacking video walls on the floor.
- Flexible Dimensions — 1.5–2 m wide and up to 3 m high per kit.
- Expandable — Combine multiple kits for wider walls.
- Curved and Flat Support — Flat, convex (2.5°/5°), and concave (5°/10°) configurations.
- Integrated Climbable Platform — Aids safe assembly of taller walls.
- Tour-Ready Road Case — Ships prepacked for convenient transport.
Specifications
- Dimensions (packed): 50.4 x 21.1 x 39.3 in (128 x 53.5 x 99.9 cm)
- Weight (total with case): 332 lb (150.6 kg)
- Max vertical stack: 3 m · Max width: 2.0 m
- Max person weight supported: 250 lb (113.4 kg)
- Housing: Aluminum extrusion and steel
- Certifications: CE · IP65 (temporary outdoor use) · Temp: -4°F to 140°F
What's Included
- Customized road case (ships prepacked), 2x Floor Bar, 6x PAM, 5x ladder pipe with clamp, 4x 0.5M truss, 4x 1m truss, 8x TR16 screw jack, 1x climbing platform, 13x M12 F-series cabinet screws, 6x REM bracket, 13x truss double-sided connector, 37x truss pins with clip, 1x 6" bubble level
