C2G C2G31011 – HDBaseT Dual-Gang Wall Plate HDMI + USB-C Extender 4K 60Hz
C2G C2G31011 – HDBaseT Dual-Gang Wall Plate HDMI + USB-C Extender 4K 60Hz is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G C2G31011 – HDBaseT Dual-Gang Wall Plate HDMI + USB-C Extender 4...
Product Overview

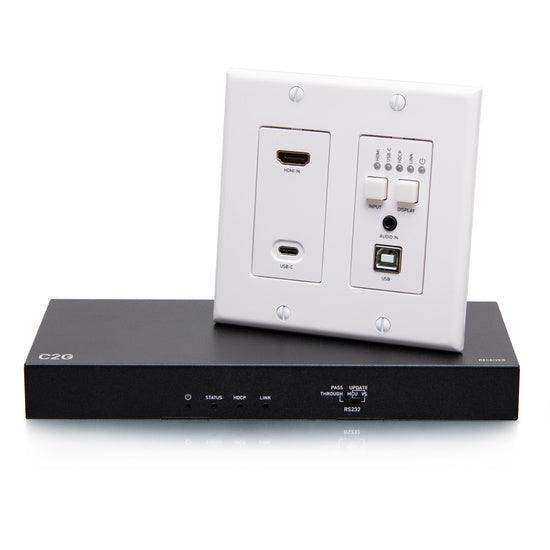

The C2G C2G31011 HDBaseT dual-gang wall plate transmitter kit extends 4K 60Hz HDMI, USB-C (USB 3.1 Gen 2 video), 3.5mm audio, USB-B to USB-A data, and RS232 control from a wall plate to a box receiver over a single Cat6a cable up to 130ft. Designed for conference rooms, classrooms, and lecture halls where both HDMI and USB-C laptop sources must be accommodated at the presenter connection point, this dual-gang wall plate kit provides a clean, permanent installation interface with simultaneous USB data extension for interactive whiteboards.
Product Description

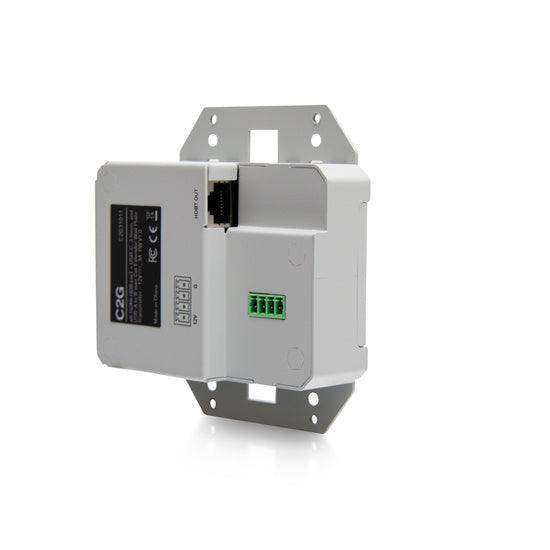

The dual-gang wall plate transmitter accepts HDMI and USB-C (USB 3.1 Gen 2, supporting video via DisplayPort Alt Mode) inputs alongside a 3.5mm audio input and USB-B connection. It mounts in a standard dual-gang electrical box. The USB-C input supports video and audio from modern laptops and devices equipped with USB-C video output. The USB-B port on the wall plate connects to the host computer and the USB-A port on the receiver connects to the interactive display — extending both video and USB touch simultaneously over the same Cat6a cable.

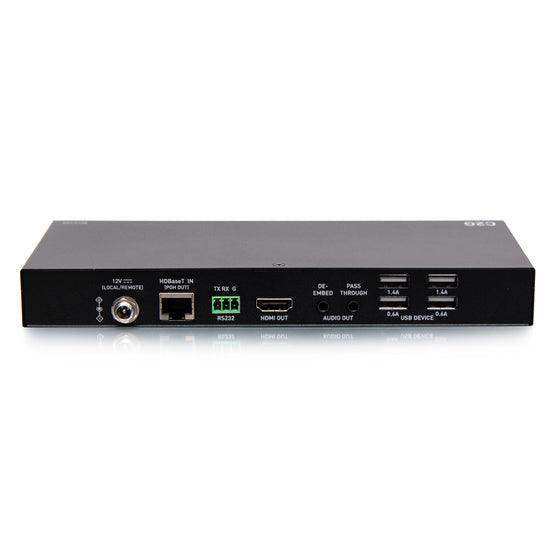

The box receiver outputs HDMI at 4K 60Hz (4:4:4) to the display and provides USB-A for the whiteboard or touch display. RS232 pass-through supports serial control integration. HDCP 2.2 ensures compatibility with protected 4K content. All signals travel over a single Cat6a cable, reducing infrastructure requirements in permanent room installations.
Key Features
- Dual-Gang Wall Plate Transmitter — Fits a standard dual-gang electrical box for a clean, permanent presenter connection interface.
- HDMI and USB-C Video Inputs — Accepts both HDMI and USB-C (USB 3.1 Gen 2 with DisplayPort Alt Mode) sources for BYOD and fixed-source room configurations.
- 4K 60Hz (4:4:4) over Cat6a up to 130ft — Extends 4K video at full 18Gbps bandwidth up to 130ft over a single Cat6a cable.
- USB 2.0 Data Extension (USB-B to USB-A) — Extends USB alongside video for interactive whiteboard and touch display connectivity.
- 3.5mm Audio Input — Accepts analog audio for embedding into the signal path alongside video.
- RS232 Control Pass-Through — Passes serial control for room control system integration.
- HDCP 2.2 Support — Compatible with protected 4K content sources.
- Single Cat6a Cable for All Signals — Video, USB, audio, and control travel over one cable.
Typical Applications
- Conference room dual-input wall plate for HDMI and USB-C laptops
- Classroom and lecture hall presenter connection with whiteboard USB
- Training room wall plate with RS232 display control
- Corporate meeting room BYOD connectivity with touch display support
- Government facility permanent AV installation
Technical Specifications
| Wall Plate Form Factor | Dual-gang |
| Video Inputs | HDMI, USB-C (USB 3.1 Gen 2, DisplayPort Alt Mode video) |
| Audio Input | 3.5mm stereo |
| USB Data | USB-B (wall plate) to USB-A (receiver) |
| Extension Standard | HDBaseT |
| Max Distance — 4K over Cat6a | 130ft (40m) |
| Video Output (Receiver) | 4K 60Hz (4:4:4), HDMI |
| HDCP | HDCP 2.2 |
| RS232 | Yes — control pass-through |
| Cable Required | Cat6a |
| SKU | C2G31011 |
Frequently Asked Questions
- Does USB-C on this wall plate support video?
Yes. The USB-C port supports USB 3.1 Gen 2 with DisplayPort Alt Mode video, allowing USB-C laptops to output 4K video through the wall plate alongside HDMI sources.
- Does this fit a standard dual-gang electrical box?
Yes. The transmitter mounts in a standard dual-gang electrical box or mud ring for permanent wall installation.
- Can this be used with an interactive whiteboard?
Yes. The USB-B port on the wall plate connects to the host and the USB-A on the receiver connects to the whiteboard, extending both video and USB touch input over the same Cat6a cable.
- What is the maximum 4K extension distance?
Up to 130ft (40m) at 4K 60Hz over Cat6a.
- What warranty does C2G provide?
C2G provides a standard commercial warranty. Contact Creation Networks at creationnetworks.net for support.
