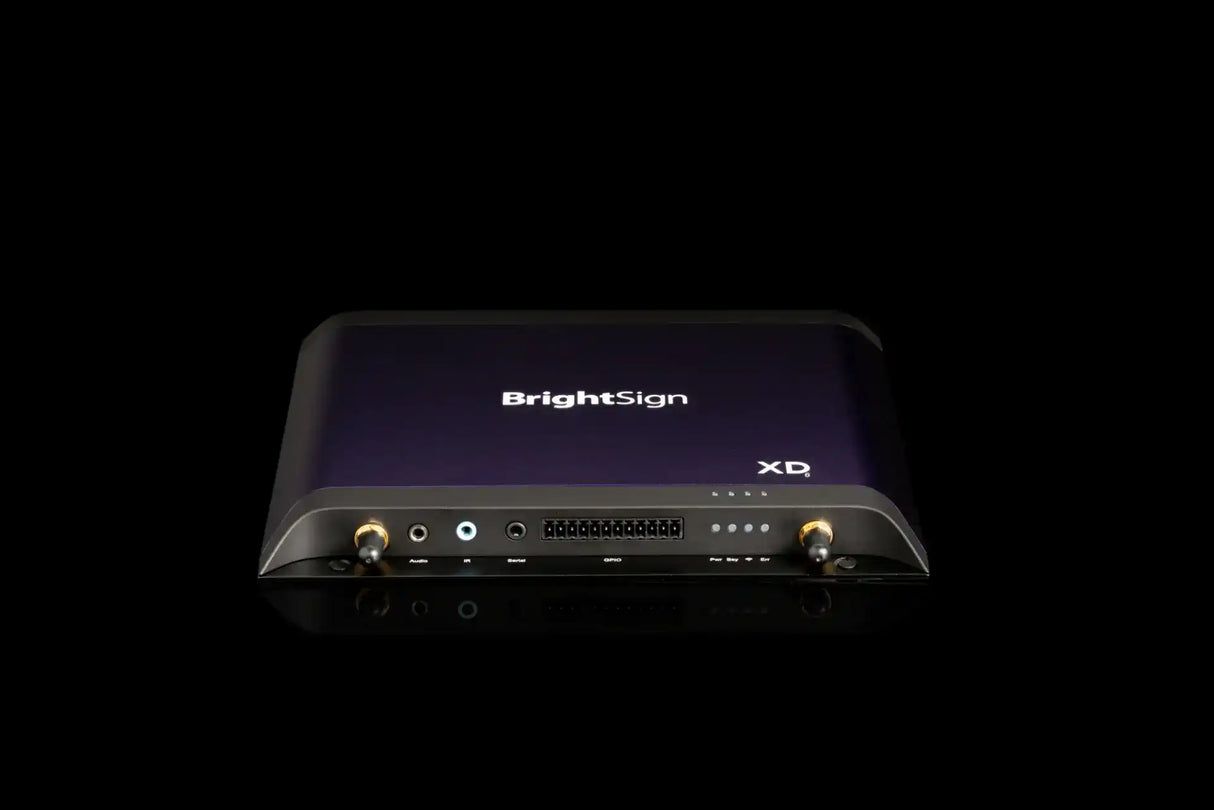

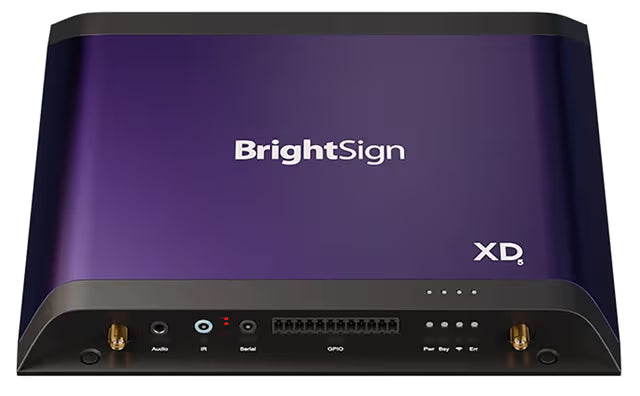

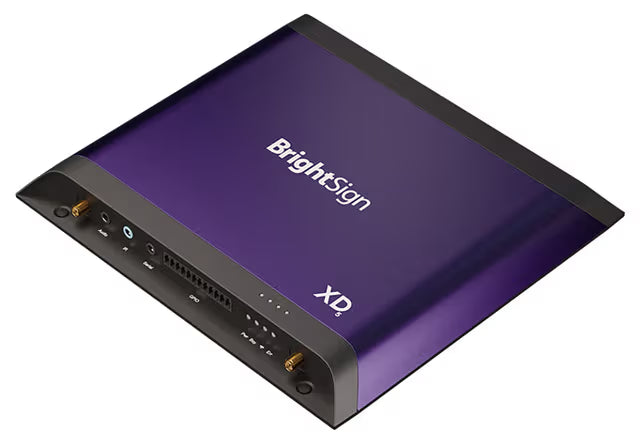

BrightSign XD1036 | 4K HDR PoE+ Digital Signage Player — Series 6, Expanded I/O, AI-Ready (NPU)

BrightSign XD1036 — Exceptional 4K Video & Graphics, Deployable Anywhere

The BrightSign XD1036 (Series 6) leverages the flexibility of Power over Ethernet (PoE+) to deploy high-performance 4K graphics and stream profoundly captivating 4K video — anywhere. Its Expanded I/O package adds USB-C, USB-A, and serial connectivity for the most demanding interactive deployments, powered by the self-healing BrightSignOS™.

Key Features

• Stellar 4K — dual 10-bit 4K at 60p decoding, 4K video rotation, and 10-bit HDR
• 4K image & graphics resolution with responsive multi-touch 2D WebGL performance
• AI-ready integrated Neural Processing Unit (NPU) for edge AI without compromising video or graphics
• Power over Ethernet (PoE+) powers the player and peripherals — deploy anywhere
• Expandable internal storage via optional M.2 PCIe NVMe SSD (256GB); secure internal microSD
• Expanded I/O: USB-C, USB-A, and serial ports for touch and external device control
• Free bsn.Control remote management; included 5-year warranty (parts & labor)

The BrightSign Advantage

• Deploy high-performance and creative experiences anywhere using the flexibility of PoE+
• Stellar 4K or dual 4K video, ideal for on-screen and projected displays, with 10-bit HDR support
• Deploy immersive and captivating 4K graphics
• Expandable internal storage via an M.2 interface SSD storage option
• Operate with unparalleled reliability, security, and sustainability on BrightSignOS™
• Reduce total cost of ownership with complimentary remote player management and controls
• Achieve CMS choice flexibility with a trusted global network of leading integrated partner solutions
• Leverage an integrated Neural Processing Unit (NPU) which enables BrightSign players to run powerful AI applications without compromising on video or graphics performance

Typical Applications

• Conference, huddle & meeting rooms — room-status boards, schedules, and welcome screens that complement video-conferencing platforms including Zoom Rooms, Microsoft Teams Rooms, Google Meet, and Cisco Webex.
• Interactive kiosks & touch displays — multi-touch wayfinding, product finders, and self-service experiences via USB-C/USB-A.
• Video walls & projected displays — dual-4K visuals and immersive 4K graphics for centerpiece installations.
• Retail, QSR & corporate — promotional displays, menu boards, dashboards, and internal communications.
• Outdoor & remote locations — PoE+ deployment flexibility for transportation, museums, and public spaces.

Ports & Connectivity (XD1036 — Expanded I/O)

• HDMI 2.0a video output
• PoE+ Gigabit Ethernet plus 10/100 Ethernet port
• USB-C (high-speed host, 5V/1A) and USB-A (5V/1A) for touch & peripherals; Serial (3.5mm)
• Audio (3.5mm) — analog & SPDIF digital; IR (3.5mm); bi-directional GPIO (12-pin Phoenix)
• Internal microSD socket, M.2 E-Key Wi-Fi/Bluetooth slot, and M.2 PCIe slot for optional NVMe SSD
• Locking power supply (12V/3A); real-time clock (14-day life)

Technical Specifications

XD236 vs XD1036 — Which Should You Choose?

Both Series 6 XD players share the same dual-4K engine, AI-ready NPU, PoE+, 10-bit HDR, optional NVMe SSD, and 5-year warranty. The difference is the I/O package and interactivity.

Built on BrightSignOS™ — The Power of Purple

BrightSignOS™ is the only purpose-built signage operating system: secure (runs a single signed signage application), reliable (persistent self-healing protocols and remote management), superior (optimized video and motion graphics), and sustainable (low power, long life-cycle support, free updates) — lowering total cost of ownership over the life of your deployment.
