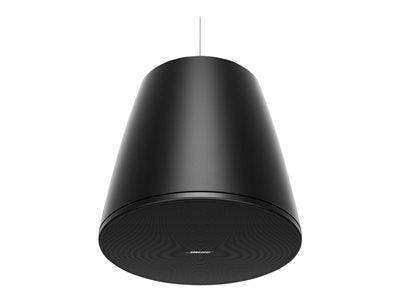

Bose DesignMax DM10P-SUB – Pendant Subwoofer for PA Systems (Black)

Product Overview

The Bose DesignMax DM10P-SUB is a pendant-mount subwoofer designed for commercial PA systems and distributed audio installations where both low-frequency reinforcement and a clean, below-ceiling installation profile are required. As a pendant subwoofer, it deploys from ceiling structures on pipe or cable, allowing it to be positioned closer to the listening zone than in-ceiling or on-wall alternatives. It is part of the DesignMax product family, engineered to pair spectrally with DesignMax satellite speakers in conference rooms, houses of worship, all-hands rooms, and larger commercial meeting spaces. Available from Creation Networks, the DM10P-SUB is a practical subwoofer solution for integrators specifying PA and distributed audio in architecturally finished commercial spaces.

Product Description

← →

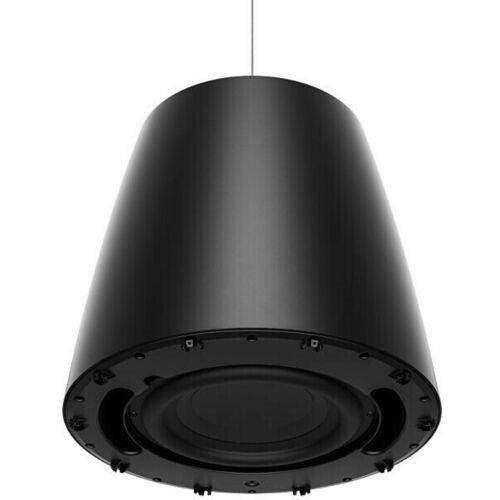

The DM10P-SUB houses a 10-inch woofer in a sealed enclosure optimized for pendant installation from ceiling grid, truss, or pipe structures. Its pendant orientation allows the subwoofer to be deployed in spaces where floor-standing or wall-mounted subwoofers would be obtrusive, maintaining the clean line of sight and aesthetic standards common in commercial and hospitality environments. The sealed enclosure provides tight, controlled bass reproduction suited for both speech-reinforced meeting room audio and music playback applications.

The DM10P-SUB includes an internal 70V/100V transformer for distributed audio system connections and supports low-impedance 8-ohm direct drive. It is matched to the DesignMax satellite speaker range and Bose ControlSpace DSP provides dedicated system presets for crossover alignment and equalization. In larger PA system configurations, multiple DM10P-SUBs can be distributed across a room to provide even bass coverage without the localization artifacts of a single subwoofer.

Key Features

• 10-Inch Pendant Subwoofer — Full-size woofer in a pendant-mount enclosure positions low-frequency reinforcement at the optimal height for commercial listening environments.
• Sealed Enclosure — Controlled, accurate bass response for both speech-reinforced conference audio and music playback applications.

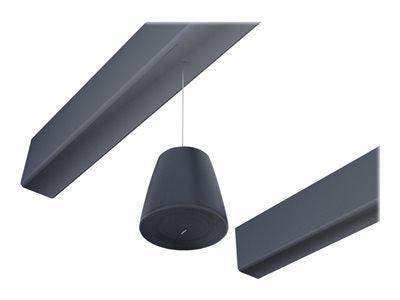

• Pendant Installation — Mounts from ceiling structures, truss, or pipe for clean deployment in architecturally finished commercial spaces.

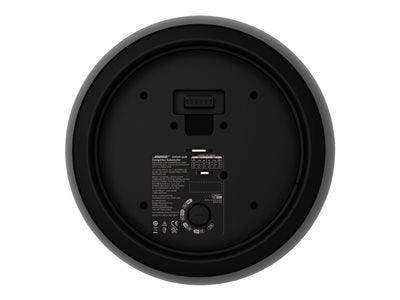

• 70V/100V Transformer Included — Integrates directly into distributed PA systems with standard commercial amplifiers.
• 8-Ohm Direct Drive — Supports low-impedance amplifier connections for zone or power amplifier configurations.
• DesignMax System Matching — Spectrally matched to DM5P and other DesignMax satellites for cohesive full-range system performance.
• Bose ControlSpace Compatible — System presets available for crossover and EQ alignment when used with ControlSpace DSPs.
• Black Finish — Suitable for dark or exposed ceiling installations in auditoriums, all-hands rooms, and house of worship spaces.

Typical Applications

• Conference room PA subwoofer reinforcement
• All-hands room distributed audio
• House of worship distributed sub system
• Commercial meeting space full-range audio
• Auditorium distributed subwoofer array
• Multi-purpose room pendant audio system

Technical Specifications

Frequently Asked Questions

How is the DM10P-SUB mounted for pendant installation?

The DM10P-SUB is designed to hang from ceiling structures using pipe or cable hardware. A pendant mount kit provides the hardware for secure installation. Consult a structural engineer for load-bearing requirements in your specific ceiling system.

What is the difference between the DM10P-SUB and the DM10S-SUB?

The DM10P-SUB (P = pendant) is designed to hang below the ceiling. The DM10S-SUB (S = surface-mount) is designed for wall or floor surface installation. Both use a 10-inch sealed woofer with the same acoustic performance characteristics.

Can multiple DM10P-SUBs be used in a single room?

Yes. Distributing multiple DM10P-SUBs across a large room provides more even bass coverage than a single subwoofer and reduces low-frequency localization. Bose ControlSpace DSP can apply appropriate delay and level alignment.

Does the DM10P-SUB require a DSP?

A DSP with crossover filtering is required when using the DM10P-SUB alongside satellite speakers to properly allocate frequency ranges. Bose recommends ControlSpace EX or ESP DSPs with the dedicated DesignMax system presets.

What warranty does the DM10P-SUB carry?

The Bose DesignMax DM10P-SUB is covered by Bose Professional's limited warranty. Contact Creation Networks for warranty and support details.
