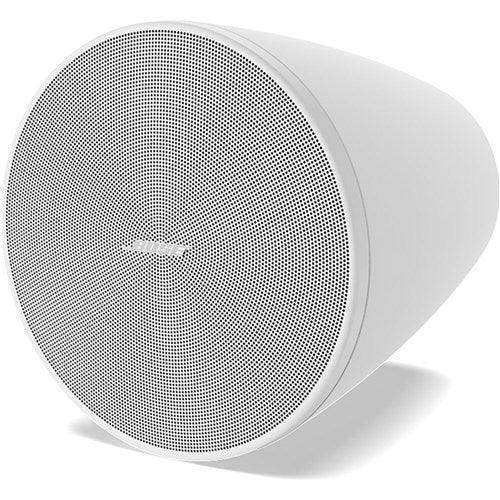

Bose DesignMax DM5P – 5-Inch Pendant Surface-Mount Speaker (White)

Product Overview

The Bose DesignMax DM5P is a compact pendant and surface-mount loudspeaker designed for commercial distributed audio installations in spaces where ceiling mounting is not practical or where pendant-style placement enhances coverage and aesthetics. Part of the DesignMax family, the DM5P is engineered to deliver consistent, commercial-grade audio quality in conference rooms, boardrooms, hospitality environments, and retail spaces. Its 70V/100V transformer and 8-ohm direct connection options provide installation flexibility for both large distributed systems and smaller zoned AV installations. Available from Creation Networks, the DM5P pairs naturally with DesignMax subwoofers for full-range system coverage.

Product Description

← →

The DM5P uses a 5-inch coaxial driver with a separately mounted tweeter to deliver full-range audio from a compact enclosure. The pendant mount configuration positions the speaker below the ceiling line, which is particularly effective in spaces with high or acoustically challenging ceilings, or in environments where the speaker needs to be placed closer to the listening zone for improved intelligibility. The enclosure can also be bracket-mounted on walls or other surfaces.

The DM5P is matched spectrally to the DesignMax subwoofer lineup, including the DM10S-SUB and DM10P-SUB, allowing integrators to build coherent full-range systems using a single product family. Bose ControlSpace DSPs provide crossover, EQ, and delay alignment presets specific to DesignMax system combinations. The speaker's white finish is designed to blend with commercial interior finishes, and optional color accessories are available.

Its compact size and pendant-capable design make the DM5P a practical choice when multiple smaller speakers are preferable to fewer large ceiling speakers, particularly in rooms with partitioned layouts, irregular geometry, or strict acoustic coverage requirements. The DM5P is sold individually and is typically deployed in matched pairs or arrays per zone.

Key Features

• 5-Inch Coaxial Driver — Full-range driver configuration delivers intelligible, balanced audio from a compact commercial enclosure.
• Pendant and Surface-Mount Capable — Installs hanging below the ceiling line or bracket-mounted to walls and surfaces for flexible placement.

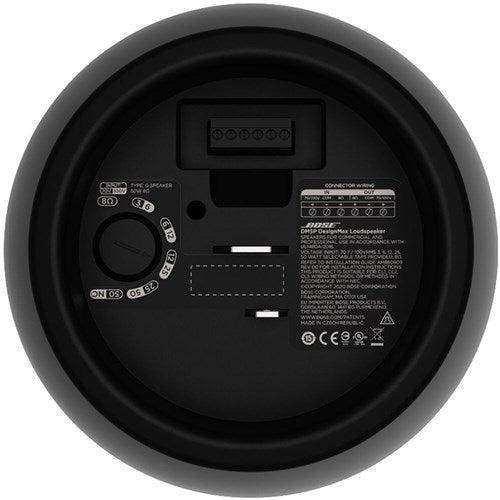

• 70V/100V Transformer Included — Supports large-scale distributed audio system integration with standard commercial amplifiers.
• 8-Ohm Direct Drive Option — Connects directly to zone or power amplifiers for low-impedance configurations.
• DesignMax System Matching — Matched to DesignMax subwoofers for coherent full-range system performance when used with ControlSpace DSP presets.
• Compact Form Factor — Small enclosure dimensions allow deployment in dense arrays for uniform coverage in complex room geometries.
• White Commercial Finish — Designed to blend with commercial ceiling and wall surfaces; paintable for color-matched installations.
• Bose ControlSpace Compatible — System-matched presets available for crossover and EQ when used with ControlSpace DSP processors.

Typical Applications

• Conference room pendant audio
• Boardroom distributed sound
• Commercial meeting space zone audio
• Training room distributed audio
• House of worship zone fill speakers
• Hospitality and retail background music
• Multi-purpose room and all-hands room audio

Technical Specifications

Frequently Asked Questions

Can the DM5P be used as a pendant speaker without additional hardware?

The DM5P is designed for pendant installation. A pendant mount kit is available to suspend the speaker from the ceiling on a cable or pipe. Contact Creation Networks for mounting accessory options.

Which DesignMax subwoofers pair with the DM5P?

The DM5P pairs with the DM10S-SUB (surface-mount) and DM10P-SUB (pendant) subwoofers. Bose ControlSpace DSP presets provide optimized crossover and equalization for these combinations.

Does the DM5P require a DSP for operation?

The DM5P operates without a DSP as a full-range speaker. However, when used with a DesignMax subwoofer, a DSP with crossover filtering is required to properly divide the frequency range between sub and satellite.

Is the DM5P suitable for outdoor or semi-outdoor use?

No. The DM5P is designed for indoor commercial installations. For outdoor or semi-outdoor applications, Bose offers the FreeSpace series loudspeakers.

What warranty does the DM5P include?

The Bose DesignMax DM5P is covered by Bose Professional's limited warranty. Contact Creation Networks for warranty terms and support.
