Blackmagic Design Videohub 10x10 12G – Compact SDI Router
Product Overview

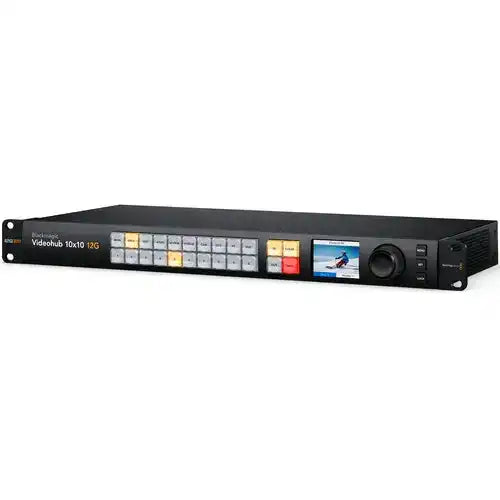

The Blackmagic Design Videohub 10x10 12G is a compact 12G-SDI video router with 10 inputs and 10 outputs in a 1 RU frame, handling SD, HD, and Ultra HD up to 2160p60. A built-in LCD and spin knob let you route signals directly on the unit without an external control panel, making it well suited to small studios, OB trucks, and flypacks that need flexible routing in limited rack space.
Product Description

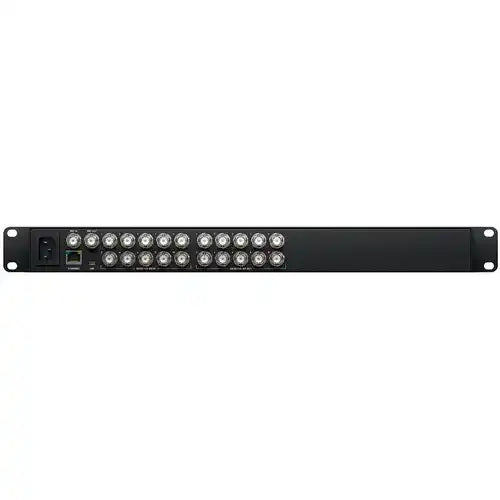

The Videohub 10x10 12G provides ten 12G-SDI inputs and ten 12G-SDI outputs, with automatic format detection so each output follows the incoming standard across SD, HD, and Ultra HD up to 2160p60. The front-panel LCD and spin knob give you instant source-to-destination routing on the device itself, while Ethernet and RS-422 allow remote control and integration with router control panels and software. Dual redundant 100–240V AC power inputs keep the router running if one supply is interrupted, and the 1 RU chassis fits standard racks and portable cases. It's part of the Videohub 12G family, which scales from this 10×10 up through larger 20×20, 40×40, 80×80, and 120×120 frames.
Key Features
- 10×10 12G-SDI routing — Ten inputs and ten outputs in a 1 RU frame.
- Up to 2160p60 — Routes SD, HD, and Ultra HD signals.
- Built-in control — Front-panel LCD and spin knob for instant routing.
- Auto format detection — Outputs follow the incoming video standard.
- Redundant power — Dual 100–240V AC inputs for uninterrupted operation.
- Remote control — Ethernet and RS-422 for panels and software.
Typical Applications
- Broadcast studio — Compact 12G routing for cameras, playback, and monitoring.
- Auditorium — Source routing for live events in limited rack space.
- House of worship — Multi-camera signal routing for services and IMAG.
Technical Specifications
| Model | VHUBSMAS12G010010 |
| Inputs | 10× 12G-SDI |
| Outputs | 10× 12G-SDI |
| Max Resolution | Ultra HD 2160p60 |
| Video Standards | SD, HD, Ultra HD |
| Control | Built-in LCD & spin knob; Ethernet, RS-422 |
| Power | Dual redundant 100–240V AC |
| Rack Size | 1 RU |
| Operating Temperature | 0–40°C (32–104°F) |
Frequently Asked Questions
What resolutions does it route?
SD, HD, and Ultra HD up to 2160p60 over 12G-SDI, with automatic format detection.
Does it need an external control panel?
No — the built-in LCD and spin knob let you route directly on the unit. Ethernet and RS-422 are available for remote control.
Is the power redundant?
Yes — it has dual redundant 100–240V AC inputs so it keeps running if one supply is interrupted.
How much rack space does it use?
It occupies 1 RU.
