Blackmagic Design Mini Converter SDI Distribution - CONVMSDIDA

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVMSDIDA
No reviews
Price:
$165.00

Description

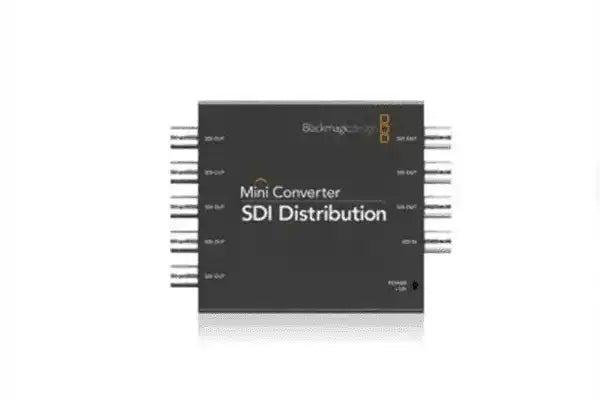

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
  • (1) SDI Input, (8) SDI Outputs
  • 3G/HD/SD-SDI Auto-Switching Input
  • Re-Clocked Outputs
  • Ancillary Data & Embedded Audio
  • 1080p & 2K Distribution
  • Supports ASI Signals

Blackmagic Design Mini Converter Specs
Inputs 1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI
Outputs 8x SDI: Automatically match the SDI video input
Re-clocking Yes
Supported Formats NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Video Sampling 4:2:2 and 4:4:4
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Color Precision 4:2:2 and 4:4:4
Color Space YUV and RGB
ASI Support Yes
Power Supply 12V universal power supply included
Power Consumption 110V: 40mA
220V: 20mA
Voltage Range 12-30V
Packaging Info
Package Weight 1.2 lb
Box Dimensions (LxWxH) 5.6 x 5.4 x 2.6"
