Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply) - CONVCMIC/SH03G/WPSU

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVCMIC/SH03G/WPSU
No reviews
Price:
$69.00

Description

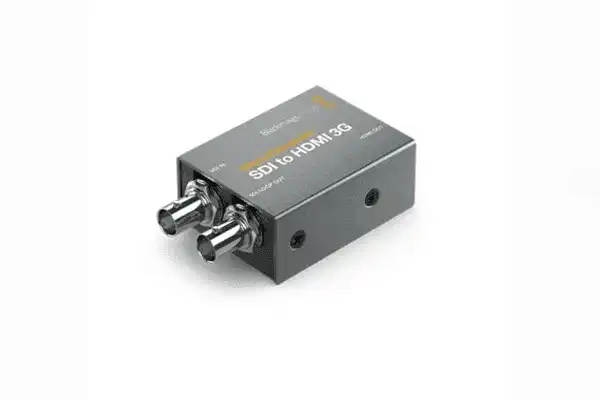

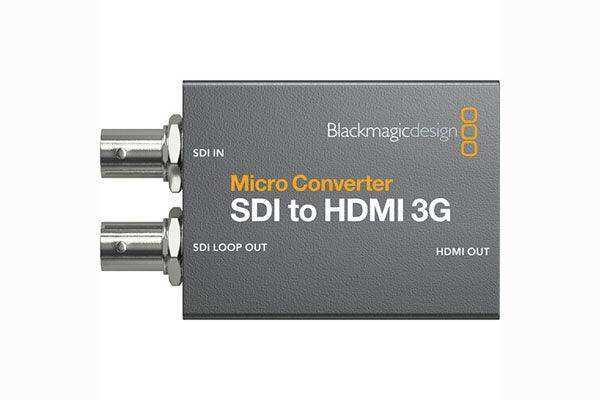

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

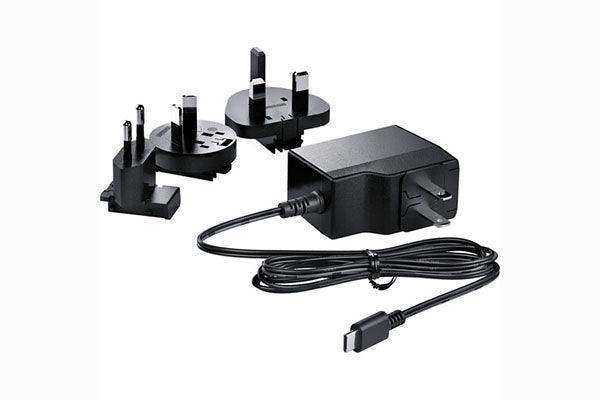

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

HDMI & SDI Outputs
  • One SD/HD/3G-SDI input
  • One HDMI output and one SD/HD/3G-SDI loop output
 Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC
 3D LUT Support
  • Supports a 7-point 3D LUT for color calibrating your monitor, television, or projector
  • Outputs LUT for monitoring via SDI loop output
 Wider Resolution Support
  • SDI support up to DCI 2Kp60
  • HDMI support up to 1080p60
 Embedded Audio
  • Supports embedded HDMI input and embedded SDI output
 LED Indicators
  • LED indicators for video and power signals
 Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Includes a 100-240 AC power supply with four socket adapters
  • 1x SD/HD/3G-SDI Input & 1 x Loop Output
  • 1 x HDMI Type A Output
  • DCI 2K SDI In/Out | 1080p60 HDMI Out
  • AC Power Supply & Socket Adapters
  • 3D LUT for Calibrating or Loop Output
  • SDI A/B Selection | USB Power
  • Embedded Audio
  • Compact, Rugged Design
  • LED Video & Power Signal Indicators

Blackmagic Design Micro Converter Specs
Video Inputs 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Audio Inputs None
Video Outputs 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)
1 x HDMI
Audio Outputs None
Other I/O 1 x USB-C Input
Expansion Slots None
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio SDI/HDMI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2
Hardware
Tally Light Yes
Wi-Fi None
OS Compatibility macOS 10.14.15 or Later
Windows 10
*As of November, 2020: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption 2.5 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight 5.29 oz / 150 g
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 5.8 x 4.1 x 2.8"
