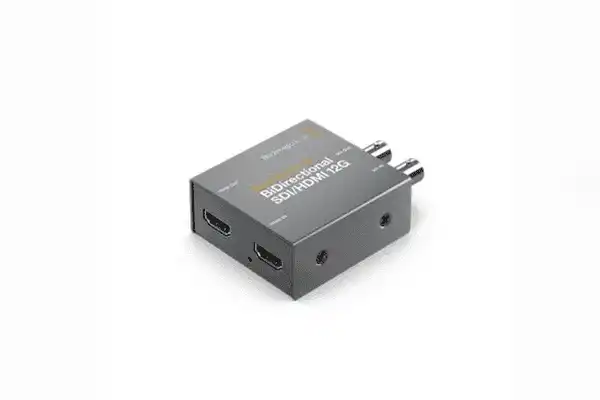

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G (with Power Supply) - CONVBDC/SDI/HDMI12G/P

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVBDC/SDI/HDMI12G/P
No reviews
Price:
$179.00

Description

The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.

  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
  • Supports up to DCI/UHD 4K60 Video
  • Blackmagic Camera Control, Tally Support
  • SDI Re-Clocking/HDMI Timecode
  • HDMI Copy Protection Support
  • Automatic Input Signal Detection
  • Embedded HDMI & SDI Input/Output
  • LED Video & Power Signal Indicators

Blackmagic Design Micro Converter Specs
Video Inputs 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female
Audio Inputs None
Video Outputs 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female
Audio Outputs None
Other I/O 1 x USB-C Firmware Input (Shared Power)
Expansion Slots None
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2
HDR Compatibility Not Specified by Manufacturer
Hardware
Tally Light Yes
Wi-Fi None
OS Compatibility macOS 10.15.15 or Later
Windows 11.1 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption Device: 5 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight 6.13 oz / 174 g
Packaging Info
Package Weight 0.875 lb
Box Dimensions (LxWxH) 5.8 x 4.7 x 2.9"
