Blackmagic Design HyperDeck Studio HD Plus - HYPERD/ST/DCHP

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: HYPERD/ST/DCHP
No reviews
Price:
$695.00

Description

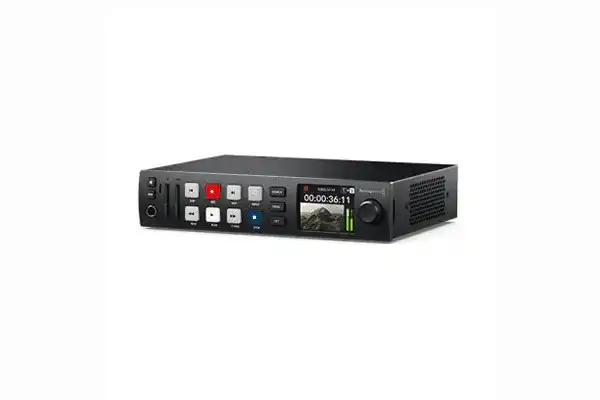

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Plus. The 1 RU tall recorder is 1/2 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability. Featuring one 6G-SDI input, one HDMI 2.0 input, two 6G-SDI outputs, and one HDMI 2.0 output, this unit is a compact recording/playout powerhouse. A loop-through output and 3G-SDI monitor output as well as reference and timecode in/out, allow this device to fit into a broadcast environment.

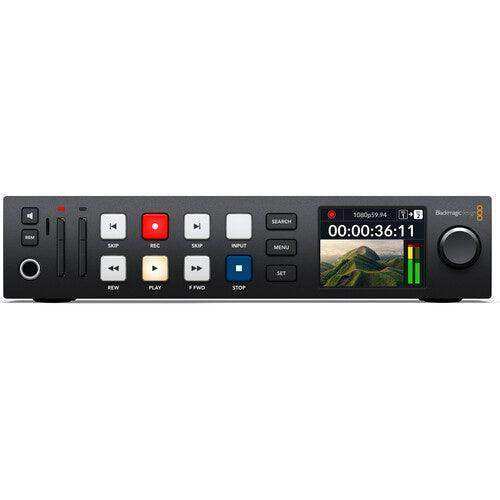

Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Plus features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.

 UHD 4K Recording and Playback The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60. Video Inputs 6G-SDI, and HDMI 2.0 inputs. Video Outputs Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices. HDR The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output. Supported Codecs ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.

DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps

H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60 VTR-Style Controls Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output. Remote The unit is controllable via RS-422 control and over the Ethernet or USB port. Built-In LCD Monitor The unit's front panel also features a built-in LCD screen that allows you to monitor input or play back video. Audio Output The unit features a built-in speaker as well as a 1/4" headphone jack. Included Software The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup.
  • Records up to 4K DCI at 30 fps
  • Plays Back up to 3840 x 2160 at 30 fps
  • 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
  • 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
  • Records ProRes, DNxHD, and H.264
  • Records in H.264 SDI 4:2:2 10-Bit
  • Front-Panel Buttons, Jog Wheel, LCD
  • Timecode and Reference Input/Output
  • 1/2 Rack-Mountable Form Factor
  • USB Type-C, 1G Ethernet, RS-422

Blackmagic Design HyperDeck Studio HD Plus Specs

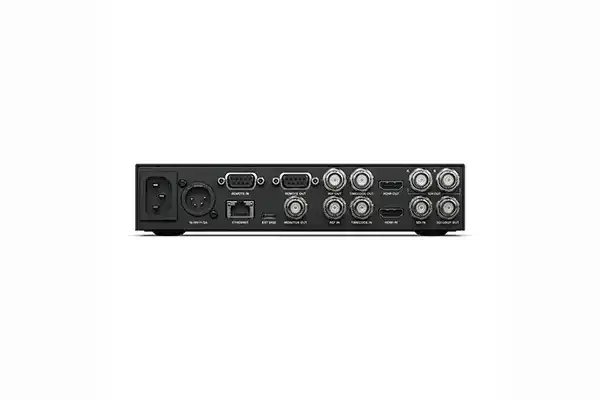

 Connectivity
Video Input 1 x BNC, 6G-SDI
1 x HDMI 2.0 Type A
Video Output 1 x BNC, 6G-SDI Loop-Out
2 x BNC, 6G-SDI
1 x HDMI Type A, 2.0
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)
1 x BNC, 3G-SDI (Monitor Out)
Timecode In: 1 x BNC
Out: 1 x BNC
Reference Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC
Audio Input None (Embedded Audio Only, 16 Channels)
Audio Output Headphone: 1 x 1/4" Phone
Device Control 2 x RS-422 Deck Control Port on DB9 Female
Ethernet 1 x RJ45 for Remote Operation
Media Interface 2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+
Standards
Supported Resolutions 4K
4096 x 2160p: 30/29.97/25/24/23.98
3840 x 2160p: 30/29.97/25/24/23.98

2K
2048 x 1080p: 0/29.97/25/24/23.98

HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50

SD
NTSC
PAL
SDI Compliance SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1
SDI Metadata Support HD RP188 and Closed Captioning CEA‑708
HDR Metadata Supported on SDI
Video Sampling 4:2:2 YUV
Color Depth 10-Bit
Color Space Rec. 601
Rec. 709
Rec. 2020
33-Point 3D LUTS Can Be Applied to SDI Monitor Out
HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support Autodetection of SD, HD, and 6G-SDI
Audio Sampling Television Standard 48 kHz, 24-Bit
Supported Codecs ProRes
HQ QuickTime
422 QuickTime
LT QuickTime
Proxy QuickTime for Formats up to 1080p60

DNxHD
220x
220x MXF
145
145 MXF
45
45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264
SDI 4:2:2 10-Bit
High 4:2:0 8-Bit
Medium 4:2:0 8-Bit
Low 4:2:0 8-Bit for Progressive Formats up to 1080p60
System Requirements
Operating System macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit
General
Rack Height 1 RU
Power Supply AC
100 to 240 VAC, 50/60 Hz

DC
12 VDC; 1 x 4-Pin XLR

Consumption
100 W Max
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Relative Humidity 0 to 90% Non-Condensing
Dimensions 8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm
Weight 1.8 lb / 0.82 kg
Packaging Info
Package Weight 3.85 lb
Box Dimensions (LxWxH) 10.5 x 10.5 x 3.5"
