Product Overview
The Blackmagic Design DeckLink Studio 4K is a PCIe capture and playback card with 6G-SDI connections for SD, HD, and Ultra HD work. Built on the Desktop Video architecture with RGB frame buffers and low latency, it can capture and play back simultaneously and includes analog and audio connections, making it a versatile card for editing, OEM integration, and Mac, Windows, or Linux systems.
Key Specs
- PCIe capture and playback card with 6G-SDI
- SD, HD, and Ultra HD 4K support
- RGB frame buffers, low latency, simultaneous capture/playback
- Analog, AES/EBU audio, RS-422, and reference
- For Mac, Windows, and Linux
Product Description

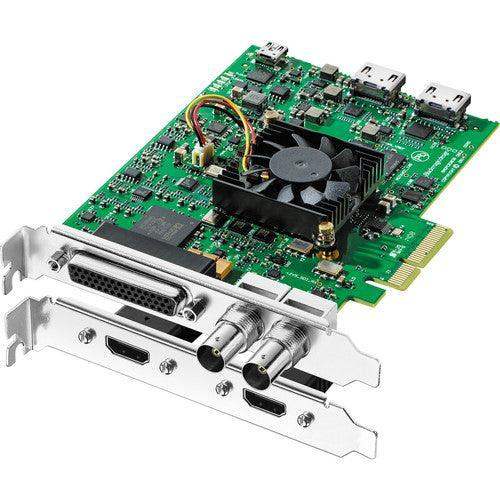

Blackmagic DeckLink Studio 4K
With our roll out of Ultra HD products and DaVinci Resolve 11 we wanted to upgrade our DeckLink family of capture cards. These are perfect for older MacPro systems as well as Windows and Linux machines.
These new models add 6G-SDI connections for SD, HD and Ultra HD work. These new models are also based on our new Desktop Video 10 design so they include RGB frame buffers, low latency and of course can capture and playback at the same time with software that supports this feature. They are fantastic OEM cards as they include a full SDK as well but developers can even write pixels directly into the frame buffers.
These new models replace the older DeckLink SDI and DeckLink Studio models. DeckLink SDI 4K features 6G-SDI in and out, reference input and RS-422 deck control and is available now for $295.
The more powerful DeckLink Studio 4K features 6G-SDI and HDMI 4K in and out for SD, HD and Ultra HD support, as well as analog component, composite, s-video and 4 channels of balanced analog audio in and out, and 2 channels of AES/EBU audio in and out, plus RS422 serial control and reference input.
Features
- PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
- 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
- 10-bit, 4:4:4 1080p by single-link 6G-SDI
- HD to SD down-conversion
- SD to HD up-conversion
- Hardware cross conversion between 720p and 1080p on playback
- RS-422 deck control
- Internal keying
- Reference input
- Blackburst and tri-sync
- Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions; 8 channels in SD
Specification
Blackmagic Design SDI Specs
| System Connection | PCIe 1.0 x1 |
| Video Inputs | 1 x BNC (6G-SDI) |
| Input Video Format | SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
| Video Outputs | 1 x BNC (6G-SDI) |
| Output Video Format | SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
| HDCP Support | None |
| HDR Compatibility | Not Specified by Manufacturer |
| Operating Temperature | 37 to 72°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Certifications | C-Tick, CE, FCC *as per Manufacturer |
| Dimensions | 3.75" / 9.53 cm |
| Weight | 4.5 oz / 128 g |
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 5.5 x 5.3 x 1.1" |
Frequently Asked Questions
What connections does it have?
6G-SDI and HDMI 4K in/out plus analog, AES/EBU audio, RS-422, and reference.
Can it capture and play back at once?
Yes, with software that supports simultaneous capture and playback.
Which systems are supported?
Mac, Windows, and Linux workstations and servers.
