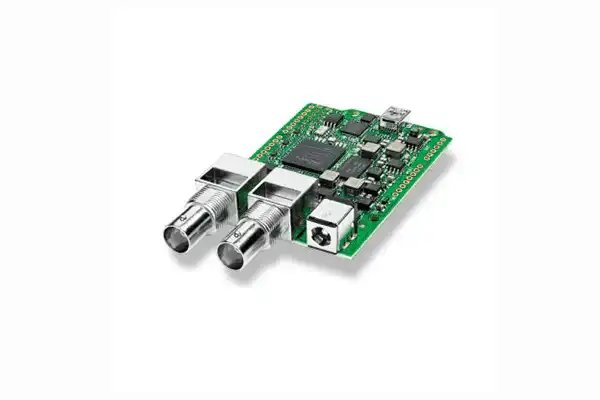

Blackmagic Design 3G-SDI Arduino Shield - CINSTUDXURDO/3G

Name: Blackmagic Design 3G-SDI Arduino Shield - CINSTUDXURDO/3G
SKU: CINSTUDXURDO/3G
Price: 125.0 USD

Authorized Dealer

$125.00

Shipping calculated at checkout.

Blackmagic Design | SKU: CINSTUDXURDO/3G

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Product Overview

The Blackmagic Design 3G-SDI Arduino Shield lets developers build custom camera control solutions; paired with a separately available Arduino controller, it embeds SDI camera-control signals in the program return feed to operate compatible Blackmagic Studio cameras.

Key Specs

3G-SDI shield for building custom camera control
Works with a separately available Arduino controller
Embeds SDI control in the program return feed

Product Description

Create a custom camera control solution with the 3G-SDI Arduino Shield from Blackmagic Design. Working in conjunction with a separately available Arduino controller, the Shield embeds an SDI control signal in the Program return feed that will operate compatible cameras, such as the Blackmagic Studio Camera or URSA Mini with the Studio Camera firmware update. These are the same controls output via an ATEM series switcher.

Blackmagic Video Device Embedded Control Protocol

This open communication protocol takes advantage of blanking space in the SDI data stream to add talkback, tally, and other camera control information directly to the camera via the program return feed. Because of its open nature, you can create custom solutions that are compatible with switchers, cameras, and other supporting hardware

Available Controls

The following controls are supported via SDI (Note: Availability may depend on camera and lens configuration):

Tally
Gain
Detail
Shutter
Zoom
Focus
Iris
Pedestal
Color Balance
Contrast
Hue
Saturation

About Arduino

An Arduino is a controller - basically a simple computer - that can be embedded in other devices to create custom solutions. In this case, installing on the Shield. Once you have the Arduino, you can download the IDE (developer software) from the Arduino website, then load the Shield's "sample code". This will give you a feel for how the Arduino interoperates with the camera and help you get started programming

Program Using Arduino IDE

Arduino programs are called Sketches and are designed to be easy to write. You can install "sample code" via the Arduino IDE (available from Arduino's website) to get a feel for how the system works. The commands for camera control are documented in the ATEM and Studio Camera manuals (available from the Support section of the Blackmagic Design website)

I2C Bus Interface

The Arduino Shield only uses the I2C bus, which means it is also compatible with other micro controllers, including a Raspberry Pi

Features

Programmable Camera Controller
Open-Source Arduino Platform
Control Camera Over SDI Program Return
Compatible with BMD Studio Cameras
Adjust Gain, Detail, Shutter, Zoom
Adjust Focus, Iris, Pedestal
Color Corrector
Program Using Arduino IDE
Requires Arduino Controller
Works with Other I2C BUS Controllers

Specification

Blackmagic Design CINSTUDXURDO/3G Specs

Packaging Info

Package Weight	0.25 lb
Box Dimensions (LxWxH)	12.4 x 8.65 x 1.2"

Frequently Asked Questions

What is it for?

Building custom camera-control solutions for compatible Blackmagic Studio cameras.

Does it need anything else?

Yes, a separately available Arduino controller.
