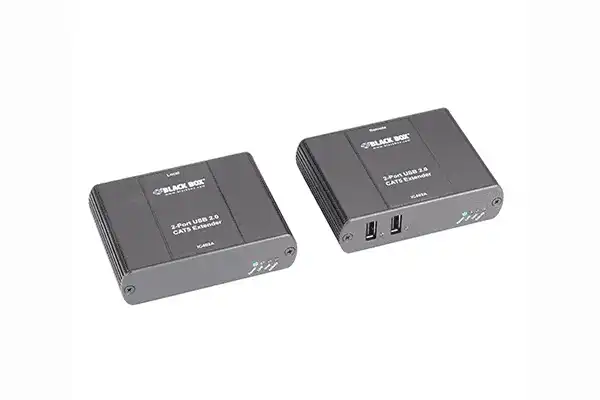

Black Box IC402A-R2 – USB 2.0 CATx Extender, 2-Port
Black Box IC402A-R2 – USB 2.0 CATx Extender, 2-Port is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Black Box IC402A-R2 – USB 2.0 CATx Extender, 2-Port
Product Overview
The Black Box IC402A-R2 is a 2-port USB 2.0 extender over CATx cable that extends USB 2.0 connectivity up to 100 meters from the host computer using standard Cat5e or Cat6 infrastructure. Designed for AV integrators and IT professionals who need to place USB peripherals at a distance from the control system or host PC, this extender is a practical solution for conference rooms, training rooms, presentation spaces, and any installation where USB cables cannot reach between the host and the device location.
Product Description
The IC402A-R2 USB extender provides two USB 2.0 ports at the remote unit, enabling simultaneous connection of two peripheral devices such as a webcam and a USB microphone, or a touch controller and a USB input device. The system operates transparently to the host operating system — no drivers are required — and is compatible with Windows, macOS, and Linux environments. A single Cat5e or Cat6 cable carries the USB 2.0 signal between the local transmitter and the remote receiver unit, leveraging existing structured cabling infrastructure in commercial buildings. The IC402A-R2 is a mid-tier option between Black Box's single-port and four-port USB extender models, making it suited for huddle rooms, smaller conference rooms, and compact AV installations where two peripheral connections at the remote end are sufficient. For USB cables, CATx infrastructure, and AV systems integration support, visit Creation Networks.
Key Features
- 2 USB 2.0 Ports at Remote Unit — Supports simultaneous connection of two USB 2.0 devices at the remote location, suitable for webcams, microphones, and HID peripherals.
- Up to 100-Meter Extension — Extends USB 2.0 over Cat5e/Cat6 up to 100 meters (328 feet), far beyond the native 5-meter USB limit.
- Driver-Free Operation — Transparent USB extension requires no driver installation on Windows, macOS, or Linux host systems.
- CATx Infrastructure Compatible — Uses existing Cat5e or Cat6 structured cabling, avoiding the need for dedicated USB cable runs or conduit work.
- USB 2.0 High-Speed — Full USB 2.0 protocol support at up to 480 Mbps for compatibility with cameras, audio devices, and HID controllers.
- Compact Form Factor — Small transmitter and receiver units are easy to mount or conceal in AV furniture, rack panels, or wall boxes.
Typical Applications
- Huddle room
- Conference room
- Training room
- Multi-purpose room
- House of worship
Technical Specifications
| Specification | Value |
|---|---|
| Model | IC402A-R2 |
| USB Version | USB 2.0 (High-Speed, 480 Mbps) |
| Number of Remote USB Ports | 2 |
| Maximum Extension Distance | 100 m (328 ft) over Cat5e/Cat6 |
| Cable Type | Cat5e or Cat6 (sold separately) |
| Power | Bus-powered (local); external power supply (remote) |
| OS Compatibility | Windows, macOS, Linux (driver-free) |
Frequently Asked Questions
What is the difference between the IC402A-R2 and the IC400A-R2?
The IC402A-R2 provides 2 USB ports at the remote unit, while the IC400A-R2 provides 4 ports. The IC402A-R2 is suited for installations requiring fewer peripheral connections, such as a single webcam and microphone in a compact meeting space.
Can I use Cat5e instead of Cat6 with the IC402A-R2?
Yes. The IC402A-R2 supports both Cat5e and Cat6 cable. Cat6 is recommended for longer runs or environments with elevated electromagnetic interference, but Cat5e performs adequately at shorter distances with proper termination.
Is this extender compatible with USB video conferencing cameras?
Yes. The IC402A-R2 supports USB Video Class (UVC) cameras at USB 2.0 speeds, making it compatible with most commercial USB webcams and video conferencing cameras used in Zoom Rooms, Teams Rooms, and similar platforms.
Does the remote unit need external power?
The local unit is typically bus-powered from the host computer. The remote unit may require an external power supply, particularly when powering USB devices that draw significant current. Check the power requirements of your specific peripheral devices.
How is the IC402A-R2 typically installed in a conference room?
The local (transmitter) unit connects to the host computer or AV control system in the equipment rack. A Cat5e or Cat6 cable runs through the building infrastructure to the remote (receiver) unit at the conference table or display wall, where USB devices connect directly to the two available USB ports.
