Biamp Desono EX-S6-UB 6.5” Coaxial Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (White) - 911.1811.900
Biamp Desono EX-S6-UB 6.5” Coaxial Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (White) - 911.1811.900
Roll over image to zoom in Click on image to zoom
Biamp Desono EX-S6-UB 6.5” Coaxial Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (White) - 911.1811.900
Biamp Desono EX-S6-UB 6.5” Coaxial Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (White) - 911.1811.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono EX-S6-UB 6.5” Coaxial Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (White) - 911.1811.900

Biamp SKU: 911.1811.900
No reviews
Price:
$540.00

Description

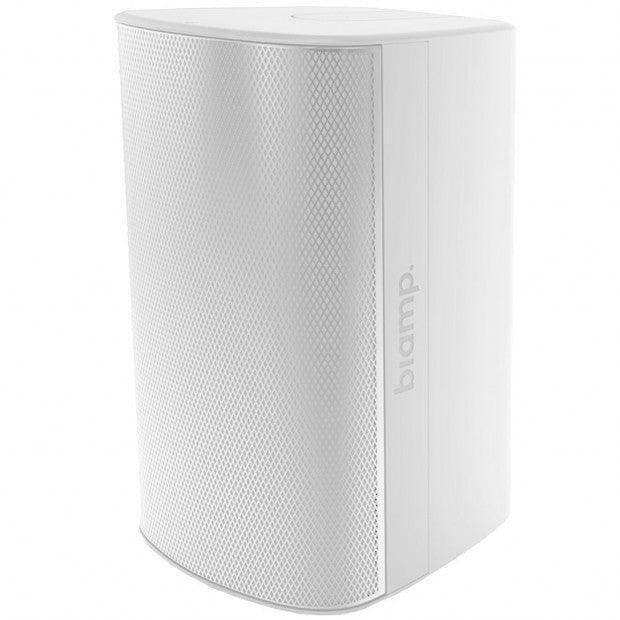

The Desono EX-S6, the smallest member of EX Series, 6.5” two-way surface mount loudspeaker provides discreet, distributed sound in applications requiring exceptional audio clarity with a small visual footprint. With its wide coverage at 110° wide dispersion and flat response down below 80Hz, EX-S6 is optimal for near field listening.

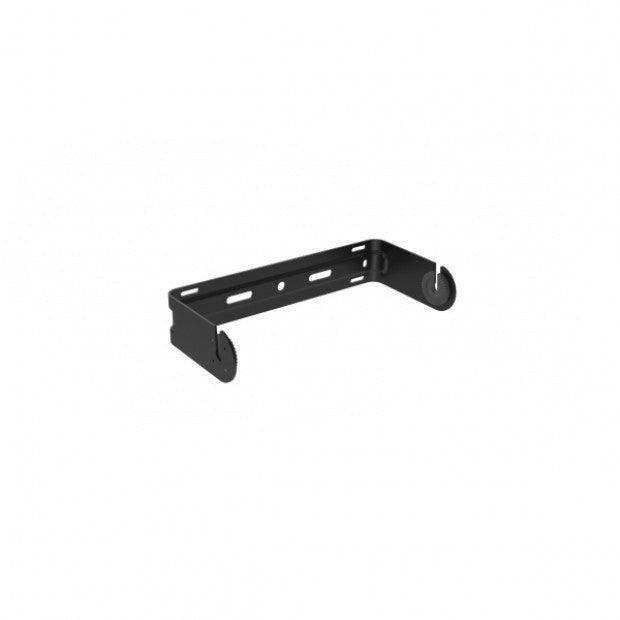

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.

  • Exceptional audio clarity with small footprint and attractive styling
  • Uniform coverage from coaxially mounted HF/LF drivers
  • 5-position switch selects 70V/100V taps or low impedance bypass
  • Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
  • EN54-24 certified

Product Specs

Operating Mode Passive with selectable low-impedance or 70 V/100 V operation
Operating Environment Indoor/Outdoor
Operating Range (-10dB) 58 Hz to 20 kHz
Nominal Beamwidth (H x V) 120° x 120°
Transducers LF 1 x 6.5" (165 mm) treated paper cone
HF 1 x 1" (25 mm) treated soft dome tweeter w/ waveguide
Sensitivity @ 1 m 89 dB (2.83 V)
89 dB (1 W, 8 Ω)
Nominal Continuous Power Handling 40 V (200 W, 8 Ω Nominal Impedance)
Nominal Maximum SPL (Processed) @ 1 m Continuous 112 dB
Peak 118 dB
Rated Continuous Voltage 31.6 V (30 dBV)
Rated Maximum SPL (Processed) @ 1 m Continuous 109 dB
Peak 121 dB
Transformer 70 V: 80 W, 40 W, 20 W, 10 W
100 V: 80 W, 40 W, 20 W
Crossover / Protection 1.58 kHz crossover, driver protection circuitry
Required Accessories 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers 200 W - 400 W, 8 Ω (40 V - 57 V)
Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through
Controls Wattage / low impedance selector switch
Mounting Provisions ClickMount pan-tilt bracket or ClickMount U-Bracket
Compliance ETL listed to comply with UL 1480A
CSA STD C22.2# 62368-1
EN54-24, ISO 7240-24, IEC 62368-1
Environmental Rating IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation)
IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2)
IEC 60068-2-60 (Chlorine)
Dimensions H x W x D 349 mm x 217 mm x 220 mm [13.7" x 8.5" x 8.6"]
Weight (loudspeaker only) 6.5 kg [14.4 lbs]
Finish High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Color: Black (RAL 9017) or White (RAL 9016)
Grille Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth
Black or White
Models (Order by mounting option) EX-S6-CM [-B,-W] - loudspeaker with small ClickMount pan-tilt bracket
EX-S6-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug
Options CMX-SM [-B,-W] - Small ClickMount pan-tilt bracket kit
EXUB-S6 [-B,-W] - EX-S6 ClickMount U-Bracket kit
