Biamp Desono C-IC6 In-Ceiling, Indoor 6.5" Coaxial Loudspeaker...

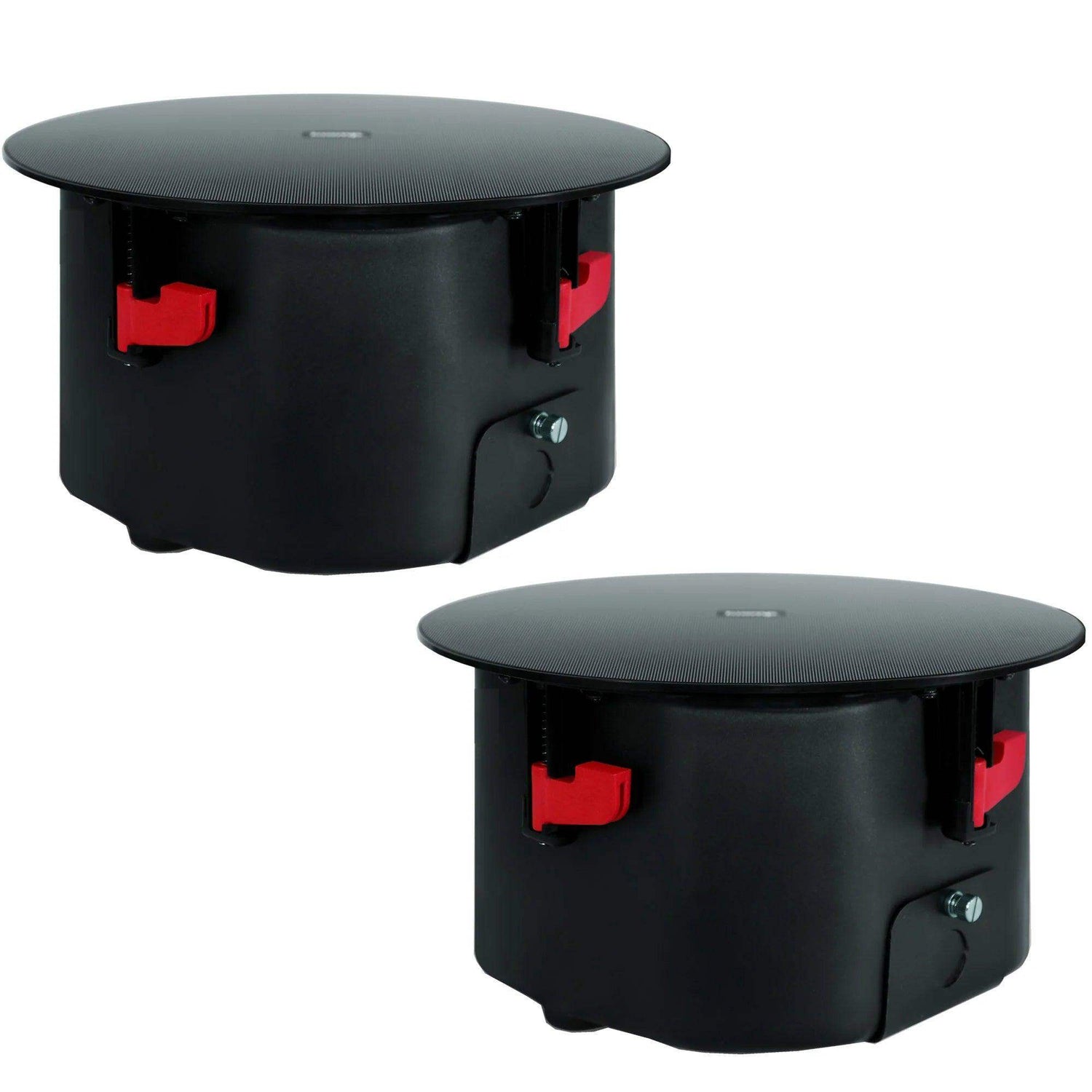

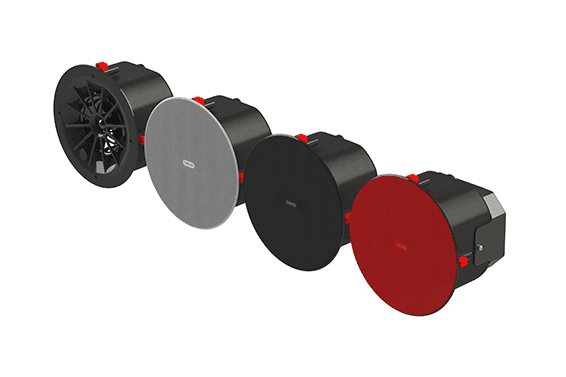

Sold as a pair, The Desono C-IC6 is a low-profile, two-way passive coaxial loudspeaker optimized for speech reproduction in conferencing applications. Designed with the installer in mind, the C-IC6 loudspeaker supports audio connections via either standard category cable or traditional speaker cable. They can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal. The grille plates are available in white, black, or red, or can be painted to match the room decor. The C-IC6 also directly integrates with the Tesira AMP-450BP — a four-channel “backpack” PoE+ amplifier — which reduces wiring requirements and installation time. The Desono C-IC6 loudspeakers are an ideal choice for any conferencing space that demands superior speech reproduction.
Features
- Low profile passive loudspeaker, less than 6 inches (155 mm) total depth
- Supports both CAT cables and standard speaker wiring
- Designed to be integrated with the AMP-450BP (backpack PoE+ amplifier)
- 8-ohm nominal impedance allows for daisy chaining
- Bridge-mounted 1-inch soft dome tweeter
- 2-way 6.5-inch treated paper woofer, mechanically isolated and independent of tweeter
- 130-degree coverage optimized for low ceilings
- 60W with a peak power of 120W
Specifications
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor in climate-controlled environments |
| Operating Range (-10dB) | 60 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130°, conical |
| Transducers | LF 1 x 6.5" (165 mm) treated paper cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 22V 60W @ 8Ω (240W peak) |
| Nominal Sensitivity @ 1m | @ 1W 88 dB @ 2.83V 88 dB |
| Nominal Maximum SPL @ 1m | Peak 112 dB Continuous 106 dB |
| Recommended Amplifiers | 60W - 120W @ 8Ω (22V - 31V); Tesira AMP-450BP |
| Input Connection | One 4-pole Euroblock connector for two pair of parallel connections [up to 16AWG] Two RJ-45 connectors |
| Mounting Provisions | 4 mounting clamps with 36 mm (1.4”) grip range |
| Compliance | ETL listed to comply with UL 1480A and UL 2043 Certified to CSA C22.2#62368-1 Suitable for use in air handling spaces per NFPA 70, NFPA 90 Conforms with City of Chicago Codes |
| Dimensions H x Dia | 151 mm x 276 mm (5.9” x 10.9”) |
| Cutout Diameter | 248 mm (9.75”) |
| Weight | 3.5 kg (7.8 lbs) |
| Finish | PC/ABS V-0 plastic Matte finish, black |
| Grille | Powder-coated perforated steel Black, White, or Red |
| Accessories (included) | C Ring; Tile Bridge; Paintable Metal Grille |
| Accessories (option) | BPAK backpack adapter kit C-IC6-GK-12PK grille kits (black, white, or red) |
