Product Overview

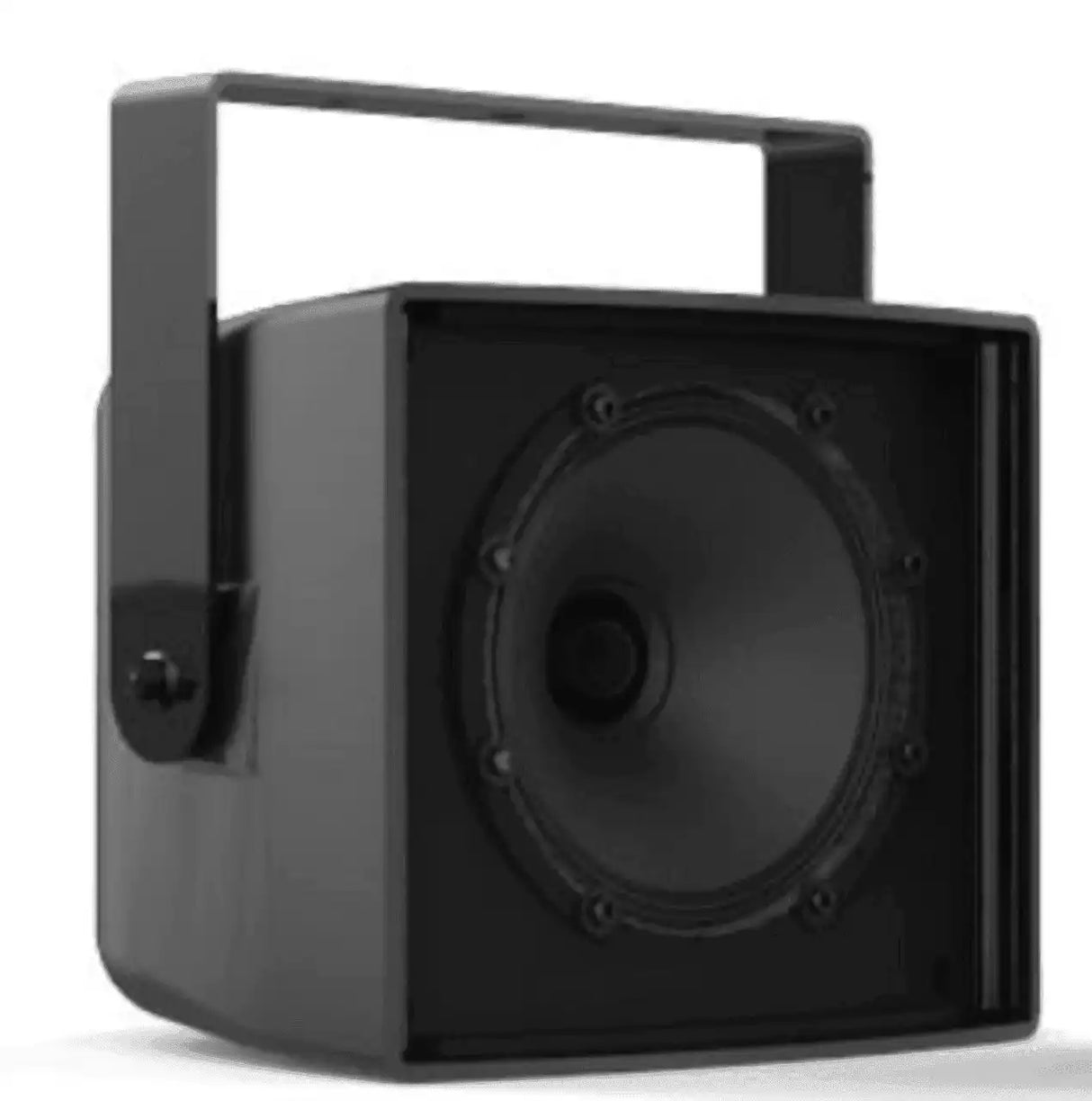

The Biamp Community R.15COAX is a two-way, full-range coaxial loudspeaker system in black, engineered for high-quality voice and music reproduction in applications demanding extreme weather resistance. It is built to withstand long-term exposure to tough environmental conditions while delivering performance normally associated only with indoor loudspeakers. It pairs a 1.25-inch exit HF compression driver coaxially with a 6.5-inch carbon ring cone LF driver for wide 100° coverage.
Product Description
The R.15COAX uses a coaxially mounted HF assembly for wide 100° x 100° coverage with low distortion, and its flange-less woofer basket design yields a cone area nearly equivalent to a typical 8-inch driver. A Music/Voice switch provides selectable out-of-the-box response for additional application flexibility, and Community’s proprietary Tru-Phase high-frequency phase plug delivers wide dispersion, low distortion and increased intelligibility. The sealed enclosure maximizes vocal clarity and provides weather protection for all interior components. A 120W autoformer enables selectable 8-ohm or 70V/100V operation. The matte-finish, paintable high-impact ABS enclosure uses a hydrophobically-treated grille and NeverWet-treated components for outdoor durability.
Key Features
- Weather-Resistant Construction — Sealed enclosure with hydrophobically-treated grille and components for tough outdoor exposure.
- Coaxial Driver Set — 1.25-inch HF compression driver coaxial with a 6.5-inch carbon ring cone LF driver.
- Wide Coverage — 100° x 100° conical coverage with low distortion.
- Music/Voice Switch — Selectable response tailors the loudspeaker for music or speech applications.
- Tru-Phase Phase Plug — Proprietary phase plug provides wide dispersion and increased intelligibility.
- 120W Autoformer — Selectable 8-ohm or 70V/100V operation.
Typical Applications
- Government space
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Configuration | Two-way, full-range weather-resistant coaxial loudspeaker |
| Transducers | LF 1 x 6.5" carbon ring cone; coaxial HF 1 x 1.25" exit compression driver |
| Operating Range | 90 Hz - 16 kHz |
| Sensitivity (1W/1m) | 94 dB |
| Power Handling | 150W continuous @ 8 ohms |
| Continuous Max Output | 117 dB (123 dB peak) |
| 70V/100V Autoformer | 120W, 60W, 30W, 15W (@ 70V only) |
| Nominal Beamwidth (H x V) | 100° x 100° conical |
| Finish | Light grey or black ABS matte plastic, paintable; NeverWet-treated grille |
| Dimensions (H x W x D) | 9.0" x 10.2" x 10.2" (229 x 258 x 259 mm) |
