Barco Event Master CXP I/O Card - R9004797

Product Overview

The Barco R9004797 Event Master CXP I/O card is a flexible input/output module for Barco E2 and S3 Event Master processors. The card can be used in either an input or output slot, adding flexibility for how video signals are distributed through a linked Event Master system. It carries signal over CXP cable and lets linked systems extend up to eight links of input or output to an EX chassis. The card is supplied as genuine Barco article number R9004797.

Product Description

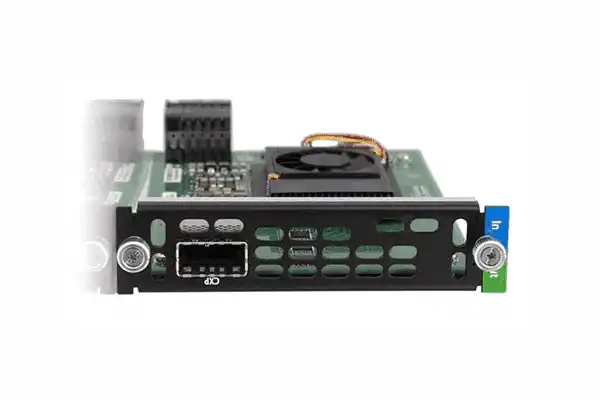

As shown in the product image, the R9004797 CXP I/O card is a board-level module that installs into an Event Master chassis slot and is configured as input or output depending on the slot it occupies. Its primary role is distribution: it adds the ability for linked Event Master systems to extend up to eight links of input or output to an EX chassis, expanding the reach of a multi-chassis deployment. Connection is made over CXP cable, and the link can be converted to MTP fiber optic cable for runs up to 300m, which suits venues where processors and displays are far apart. The card is broadly compatible across the Event Master line, including E2, E2 Gen 2, E2 Jr, E2 Tri-Combo, S3 Standalone, S3 Tri-Combo, and the S3-4K family. It works alongside VPU and other I/O cards in the same chassis, so integrators speccing a complete system can pair it with other Barco processing modules in our Barco collection. Contact Creation Networks for help confirming slot configuration on an existing Event Master rack.

Key Features

• Input or output use — The card functions in either an input or output slot for flexible signal distribution.
• Up to eight links — Lets linked Event Master systems extend up to eight links of input or output (slot dependent) to an EX chassis.
• CXP connectivity — Uses CXP cable for its connectors.
• Fiber extension — The link can be converted to MTP fiber optic cable for runs up to 300m.
• Wide compatibility — Supports E2, E2 Gen 2, E2 Jr, E2 Tri-Combo, S3 Standalone, S3 Tri-Combo, and S3-4K processors.
• Modular card design — Seats in an Event Master chassis slot for field installation and expansion.
• Genuine Barco part — Supplied as Barco article number R9004797 for verified compatibility.

Typical Applications

• Live events and concerts — Distributes and extends signals across linked processors driving large stage screens.
• Rental and staging — Links Event Master systems and EX chassis across a touring or show deployment.
• Broadcast and studios — Carries multiple input or output links between processors and display walls.
• Corporate and AV integration — Extends signal distribution over fiber for venues with long cable runs.

Technical Specifications

Frequently Asked Questions

Is the CXP card an input or output card? Either. The card works in an input or output slot depending on where it is installed in the chassis.

How many links does it support? It lets linked Event Master systems extend up to eight links of input or output (slot dependent) to an EX chassis.

What cable does it use? It uses CXP cable, which can be converted to MTP fiber optic cable for runs up to 300m.

Which processors are compatible? The E2, E2 Gen 2, E2 Jr, E2 Tri-Combo, S3 Standalone, S3 Tri-Combo, and S3-4K family of Event Master processors.

Is this a genuine Barco part? Yes. It is supplied as Barco article number R9004797.
