Avid NEXIS | F5 NL 1,280TB. 8x160TB Media Packs, includes two 16TB spare HDDs, ExpertPlus with Hardware Support
Avid NEXIS | F5 NL 1,280TB. 8x160TB Media Packs, includes two 16TB spare HDDs, ExpertPlus with Hardware Support is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Avid NEXIS | F5 NL 1,280TB. 8x160TB Media Packs, includes two 16TB ...
Product Overview

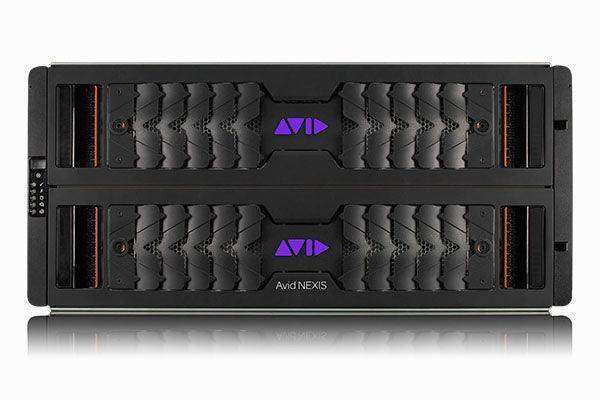

The Avid NEXIS | F5 NL 1,280TB shared storage system is a high-density near-line storage engine purpose-built for media organizations requiring maximum capacity for media archiving, deep library storage, and nearline collaborative workflows. Fully populated with eight 160TB Near Line (NL) Media Packs, this system delivers 1.28 petabytes of usable capacity per engine in a standard rack-mount chassis. This configuration includes Avid ExpertPlus with Hardware Support, providing hardware replacement coverage and expert technical access for production and archive deployments.
Product Description
The Avid NEXIS | F5 NL 1,280TB uses near-line high-capacity HDDs to maximize storage density per unit, making it the most cost-efficient capacity configuration within the NEXIS F5 family. NL Media Packs are optimized for sequential access workloads typical of media ingest, archiving, browsing proxy workflows, and nearline content libraries. Eight 160TB NL Media Packs provide 1.28PB of storage in a single chassis—the highest per-engine capacity available in the NEXIS F5 line.
The F5 NL integrates with the Avid NEXIS | FS file system and requires Avid NEXIS | SDA or SDA+ (sold separately) for all deployment configurations. The F5 Controller includes two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated) for connection to 25GbE or 50GbE production network infrastructure. Two 16TB spare HDDs are included for immediate hot-spare deployment in the event of a Media Pack drive failure.
This system is designed to complement standard F5 Media Pack engines in tiered storage environments—where online high-performance storage handles active editorial, and the F5 NL provides a high-capacity nearline tier for media requiring shared access but not peak bandwidth. ExpertPlus with Hardware Support provides hardware replacement logistics and expert technical support for facilities with capable in-house technical staff.
Key Features
- 1,280TB Near-Line Capacity — Eight 160TB NL Media Packs in a single rack-mount chassis deliver 1.28 petabytes of usable near-line storage—the highest per-engine capacity in the NEXIS F5 family.
- Near-Line HDD Media Packs — High-capacity near-line drives deliver maximum storage density at a lower cost per terabyte compared to standard enterprise Media Pack configurations.
- 25/50GbE QSFP28 Connectivity — F5 Controller includes two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated) for integration with 25GbE or 50GbE production switching.
- Avid NEXIS | FS Integration — Operates within the NEXIS FS file system for centralized workspace management and multi-client shared access.
- Two 16TB Spare Drives Included — NL spare HDDs ship with the system for immediate hot-spare use in the event of a Media Pack drive failure.
- Rack-Mount Form Factor — Ships with rack-mount kit for standard 19-inch equipment rack installation.
- ExpertPlus with Hardware Support — Hardware replacement coverage with access to Avid expert technical support for the contract period.
- Tiered Storage Architecture — Designed for use alongside NEXIS F5 standard and All-Mirror engines in multi-tier media production storage environments.
- E-Series Compatible — F5 NL engines can be integrated into existing NEXIS E-Series environments as a separate storage group.
Typical Applications
- Broadcast media archive and deep library nearline storage
- Post-production house proxy and nearline media repository
- Government and agency long-term media retention and archive
- Multi-purpose production environment nearline content tier
- Training and education media library storage
Technical Specifications
| Specification | Value |
|---|---|
| Model | Avid NEXIS | F5 NL |
| Total Usable Capacity | 1,280TB (1.28PB) |
| Media Pack Configuration | 8x 160TB Near Line (NL) Media Packs (fully populated) |
| Drive Type | Near Line HDD |
| Network Interfaces | Two 40/50Gbps Ethernet QSFP28 (unpopulated) |
| Spare Drives | Two 16TB HDDs |
| Form Factor | Rack-mount (kit included) |
| Software Included | Avid NEXIS | FS license |
| Required Accessory | Avid NEXIS | SDA or SDA+ (sold separately) |
| Support Level | ExpertPlus with Hardware Support |
Frequently Asked Questions
Q: What is the difference between F5 NL and standard F5 Media Packs?
A: F5 NL Media Packs use near-line high-capacity HDDs for maximum density and lower cost per TB, suited for nearline archive and media library workloads. Standard F5 packs deliver 480 MB/s per pack and are recommended for active high-resolution editorial workflows.
Q: Is Avid NEXIS | SDA or SDA+ required?
A: Yes. SDA/SDA+ is required for all F5 NL configurations and is sold separately. Contact Creation Networks for SDA/SDA+ guidance and sizing.
Q: Can the F5 NL be used alongside standard F5 or All-Mirror engines?
A: Yes. NEXIS supports tiered storage environments where F5 NL engines serve as a nearline capacity tier alongside higher-performance F5 standard or All-Mirror engines, all managed within the unified NEXIS FS file system.
Q: What is ExpertPlus with Hardware Support?
A: ExpertPlus with Hardware Support provides hardware replacement logistics and expert technical access for the contract period. For environments requiring 24/7 response, Elite Support is available as an alternative option.
Q: Where can I get a quote or configuration assistance?
A: Contact Creation Networks for configuration assistance, volume pricing, and support options for NEXIS F5 NL deployments.
