AVer Lenovo Zoom Large Room Ceiling Mic Complete Solution

Product Overview

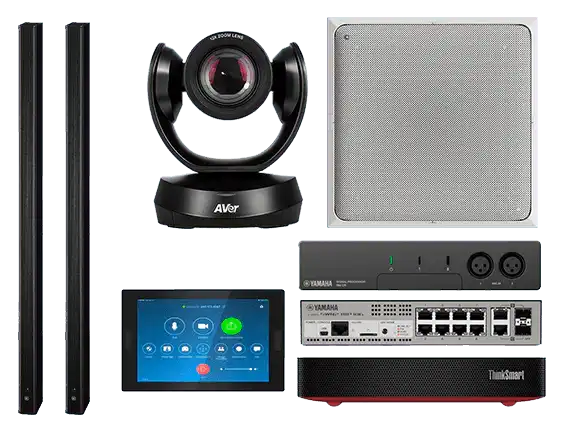

The AVer Lenovo Zoom Large Room Ceiling Mic Complete Solution is a pre-validated, room-ready bundle designed for IT managers, AV integrators, and facilities teams deploying Zoom Rooms in large conference rooms, boardrooms, and training spaces. The bundle combines the AVer CAM550 4K dual-lens AI conference camera, the Lenovo ThinkSmart IP Core with Zoom Rooms controller, the Yamaha RM-CG-W ceiling array microphone, the Yamaha RM-CR audio processor, a Yamaha 10-port PoE network switch, and two Yamaha VXL1B-16P PoE wall-mount speakers — all pre-tested for interoperability. This Zoom Rooms large room solution eliminates component selection risk, reduces integration time, and delivers a complete audio and video system from a single SKU.

Product Description

Deploying a large room video conferencing solution requires careful component matching across camera, audio, compute, and control layers. The AVer Lenovo Zoom Large Room Ceiling Mic Complete Solution removes that complexity by bundling six pre-validated components into a single, tested system. All hardware has been verified to work together by AVer, Lenovo, and Yamaha, reducing integration labor and compatibility risk during deployment.

At the camera layer, the AVer CAM550 provides a 4K dual-lens design: a primary PTZ camera with 12X optical zoom (24X total) for tracking and framing meeting participants, and a secondary AI lens with a 95° field of view for panoramic room capture. Smart Gallery mode uses AI to detect and crop individual participant faces for clear headshot or half-body framing, while dynamic auto-reframing adjusts the shot when new attendees enter. The camera supports simultaneous HDMI, USB, and IP streaming output and includes picture-in-picture display of the PTZ and wide-angle views.

Audio is handled by the Yamaha RM-CG-W ceiling array microphone paired with the RM-CR audio processor — a beamforming ceiling mic system designed for large rooms up to approximately 750 sq ft. The SWR-2311P-10G PoE network switch powers and connects the microphone array, speakers, and camera over the room's network infrastructure. Two Yamaha VXL1B-16P slim-profile PoE wall-mount speakers provide room-fill audio for remote participant audio output.

The Lenovo ThinkSmart IP Core serves as the Zoom Rooms compute engine, running Zoom Rooms software natively and connecting to the included touch controller for meeting start, participant management, and room scheduling directly from the conference table. The system is certified for Zoom Rooms and carries TAA and NDAA compliance for government and enterprise procurement.

Key Features

• Pre-Validated Complete Room System — All six components tested and validated together by AVer, Lenovo, and Yamaha; eliminates compatibility risk and reduces integration labor.
• AVer CAM550 4K Dual-Lens AI Camera — Primary 12X optical PTZ lens for speaker framing and a 95° FOV secondary AI lens for panoramic room view; simultaneous HDMI, USB, and IP output.
• Smart Gallery AI Framing — AI-driven face detection crops and frames individual participants in headshot or half-body mode for clear video conferencing presentation.
• Yamaha RM-CG-W Ceiling Array Microphone — Beamforming ceiling microphone array designed for large meeting rooms; mounts flush to the ceiling for clean room aesthetics.
• Yamaha RM-CR Audio Processor — Dedicated audio DSP processor for the ceiling mic array; handles echo cancellation, noise suppression, and beam steering.
• Yamaha VXL1B-16P PoE Wall-Mount Speakers (x2) — Slim-profile powered speakers, PoE-connected, for consistent room-fill audio coverage without additional amplification.
• Yamaha SWR-2311P-10G PoE Network Switch — 10-port managed PoE switch powers and connects the ceiling mic, speakers, and camera over standard Ethernet infrastructure.
• Lenovo ThinkSmart IP Core + Zoom Controller — Dedicated Zoom Rooms compute unit with native Zoom Rooms OS and integrated touch controller for one-touch meeting start and room management.
• Zoom Rooms Certified — The complete bundle is validated for Zoom Rooms deployment; no additional software licensing or driver configuration required for the hardware layer.
• TAA and NDAA Compliant Components — Meets Trade Agreements Act and NDAA Section 889 requirements for government and federally funded room deployments.
• Single-SKU Procurement — Order the complete large room AV system under one part number (YALLARGECEILINGZOOM), simplifying procurement for multi-room rollouts.

Typical Applications

• Large conference room and boardroom Zoom Rooms deployments
• Corporate training room and all-hands room video conferencing
• Higher education seminar room and collaborative learning space AV
• Government and public sector large meeting room installations (TAA/NDAA compliant)
• Multi-room enterprise standardization rollouts requiring consistent AV configurations
• Commercial meeting spaces requiring ceiling mic audio for open-plan or high-ceiling environments
