Overview

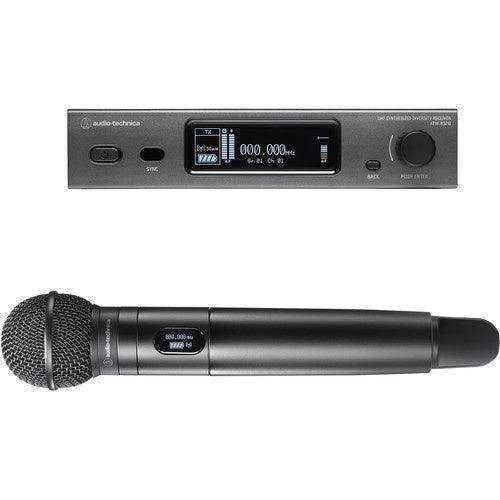

The Audio-Technica ATW-3212/C710 is a 3000 Series (4th generation) rackmount wireless handheld microphone system with professional-level features for enhanced reliability and control. It offers an intuitive interface with a dual-mode OLED screen for easy operation. With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, or on musical stages.
The ATW-3212N/C710 includes a half-rack receiver housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2400 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission. The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference.
This system includes a handheld transmitter equipped with an interchangeable ATW-C710 condenser cardioid microphone capsule optimized for speech and vocals. The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'. Up to 40 mic channels can operate simultaneously in each frequency band.
Features
Lightweight Handheld Transmitter with ATW-C710 Cardioid Capsule
- The ATW-C710 condenser mic capsule is tailored for exacting detail and high-fidelity vocal reproduction.
- The capsule features a cardioid pickup pattern for significant rejection of unwanted background sound and reduced feedback on stage.
- The handheld transmitter's interchangeable capsule design (with an industry-standard thread) allows you to replace the C710 capsule with an Audio-Technica capsule that’s ideal for your application and simply screw it onto the transmitter—including the ATW-C510, ATW-C4100, ATW-C6100, ATW-C3300, and ATW-C5400 capsules as well as capsules from other manufacturers.
- The transmitter's gain ranges from -10 to +20 dB and can be adjusted in 2 dB increments.
- The bright OLED screen presents comprehensive setup and operating information, including battery indicator, mute status, and operating frequency. Setup functions are menu driven via soft-touch controls, which are covered to prevent accidental changes.
- The multifunction button can be programmed to act as a mute switch or to switch to a clean backup frequency with minimal interruption in case of interference.
- The transmitter easily syncs to the receiver via infrared with a quick press on the Sync button.
- Two RF power output settings are available: the low-level setting extends battery life while the high level offers a stronger RF signal link.
- The transmitter operates for up to 9 hours on two AA alkaline batteries and up to 9.5 hours on two rechargeable AA NiMH batteries.
- Charging terminals on the base of the transmitter work with the optional ATW-CHG3 charging dock or ATW-CHG3N networked charging dock to recharge AA NiMH batteries.
- The durable metal chassis is equipped a secure, locking battery compartment door.
Reliable Receiver That's Easy to Use
- The wide 60 MHz UHF bandwidth gives you 2400 selectable frequencies to choose from for interference-free audio transmission in an increasingly congested RF environment.
- To prevent dropouts, the receiver's true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality.
- Auto-frequency scanning automatically selects the most appropriate frequency for the area in which the wireless is operating.
- Pre-coordinated frequency scan groups are available to simplify selection of usable frequencies in a multichannel wireless setup.
- The bright, dual-mode OLED display can be switched between two modes: the standard view provides continuous indication of RF signal strength, frequency, mute status, audio modulation level, and transmitter information, while the performance view highlights key metering.
- The display also shows the transmitter's battery life and mute status.
- Settings can be quickly adjusted using the control dial and BACK button located on the receiver's front panel. Settings can also be locked to prevent accidental changes.
- The BNC sockets for the two detachable antennas provide bias power to active remote antennas and other in-line RF devices.
- The ground-lift switch on the back panel helps eliminate audible hum caused by ground loops.
- One balanced XLR audio output lets you connect the receiver to a mixing board or PA system.
- The half-rack receiver chassis can be mounted alone in a standard 19" rack using the included mounting brackets and screws.
Specification
System
Receiver
Transmitter
Microphone
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 2395 |
| Included Transmitters | 1 x Handheld |
| Diversity | True Diversity |
| RF Frequency Band | DE2: 470 to 530 MHz |
| RF Bandwidth | 60 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 40 |
| Dynamic Range | 115 dB |
| Encryption | None |
| Deviation | ±36 kHz |
| Modulation | FM |
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x 1/4 Wave External, BNC (Rear-Mount) |
| Antenna Bias Voltage | 12 VDC, 160 mA (Combined) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" Female Unbalanced Output |
| Gain Range | -60 to 0 dB (2 dB Steps) |
| Audio Output Level | XLR Output: 14 dBV |
| Frequency Response | 25 Hz to 16.7 kHz (Dependent on Mic) |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 1 A, Center-Positive (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1 x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status) |
| Operating Temperature | 23 to 113°F / -5 to 45°C |
| Dimensions | 8.3 x 1.7 x 7.5" / 210 x 43.4 x 191 mm |
| Weight | 38.8 oz / 1100 g |
| Transmitter Type | Handheld |
| RF Output Power | 10 / 30 mW (Switchable, at 50 Ohms) |
| Audio I/O | None |
| Muting | Programmable Mute Switch |
| Gain Range | -10 to +20 dB (2 dB Steps) |
| Signal Processing | High-Pass Filter: 150 Hz, 6 dB/Octave Slope |
| Sync Method | IR |
| Antenna | 1 x Internal, Fixed (Handheld) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | Low: 9.5 Hours (NiMH) 9 Hours (Alkaline) High: 9 Hours (NiMH) 8 Hours (Alkaline) |
| Display & Indicators | 1 x OLED (Battery Status, Channel, High-Pass Filter, Mute, Power, RF Output Power, Sync) |
| Housing | Metal |
| Operating Temperature | 23 to 113°F / -5 to 45°C |
| Dimensions | 2.1 x 10.4" / 54 x 265 mm |
| Weight | 11.6 oz / 330 g (without Batteries) |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 40 Hz to 20 kHz |
| SNR | 73 dB |
| Maximum SPL | 148 dB SPL |
| Sensitivity | -40 dB |
| Dynamic Range | 127 dB |
