Atlona Etude Sync 4K HDR HDMI EDID Emulator - AT-ETU-SYNC
Product Overview
The Atlona AT-ETU-SYNC (Etude Sync) is an EDID emulator and HDMI signal management utility designed for professional AV integrators troubleshooting 4K HDR HDMI systems. It provides EDID emulation, Hot Plug Detect communication, and 5-volt signal restoration between HDMI source and sink devices, resolving the most common handshaking failures in commercial AV installations. Supporting HDCP 2.2, 4K/UHD video at 60 Hz with 4:4:4 chroma sampling, and 18 Gbps bandwidth, the AT-ETU-SYNC is a compact, field-portable diagnostic tool for HDMI EDID troubleshooting and legacy device integration in any AV system.
Product Description
The Atlona AT-ETU-SYNC Etude Sync is part of Atlona's 4K HDR integration product family, purpose-built to identify and resolve signal integrity issues that arise between HDMI sources and displays in commercial and residential AV systems. EDID mismatches and Hot Plug Detect failures are among the leading causes of unreliable HDMI performance, and the AT-ETU-SYNC addresses both by providing EDID to the source device from either the connected display or its own internal memory. The device can capture and store EDID from a downstream display, ensuring that the source always outputs the correct resolution and audio format regardless of what is connected downstream. The AT-ETU-SYNC also restores the +5V and HPD signals lost due to faulty, long, or incompatible cabling — enabling the handshaking sequence required for stable video delivery. It supports the full range of 4K/UHD resolutions up to 4096x2160 at 60 Hz, HDR10, and Dolby Vision at 60 Hz, as well as a comprehensive VESA resolution set for PC sources. Multi-channel audio pass-through includes PCM, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. A particular strength of the AT-ETU-SYNC is enabling legacy HDMI source devices — such as cable television set-top boxes — to function in systems that use HDBaseT extenders, which require HDMI clock stretching support that older sources often lack. Front panel LED indicators provide immediate status feedback for the +5V source supply, Hot Plug Detect, and HDCP compliance at both the source and destination, allowing AV technicians to diagnose connection problems rapidly without additional test equipment. The device is USB-powered and ships with a universal power supply, making it equally convenient for permanent rack installation and portable field troubleshooting. Firmware is field-updatable via the USB port.
Key Features
- EDID Emulation and Management — Provides EDID to the HDMI source from the display or internal memory; captures and stores display EDID to ensure correct resolution and audio output.
- 5V and Hot Plug Detect Restoration — Restores +5V and HPD signals lost due to cable or device issues, enabling the handshaking required for stable content delivery.
- 4K/UHD at 60 Hz with 4:4:4 Chroma Sampling — Supports 4096x2160 and 3840x2160 resolutions at up to 60 Hz with full chroma, HDR10, and Dolby Vision.
- 18 Gbps Bandwidth — Handles the full HDMI 2.0 data rate required for 4K HDR content.
- HDCP 2.2 Compliant — Passes protected content streams and reports HDCP compliance status at source and destination via front panel LEDs.
- Legacy HDMI Device Compatibility — Enables older HDMI sources lacking clock stretching support to operate correctly with HDBaseT extenders.
- Multi-Channel Audio Pass-Through — Supports PCM 2-channel through LPCM 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

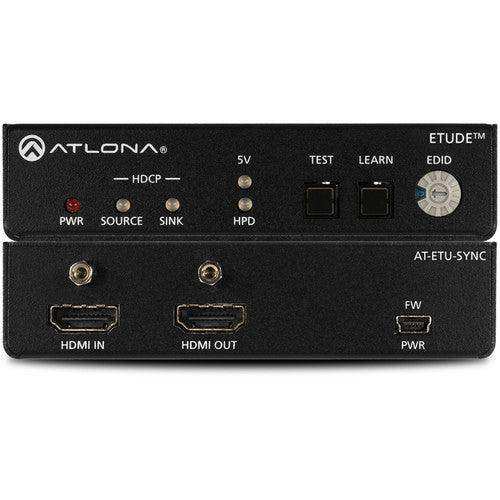

- Front Panel Status LEDs — Indicates +5V supply, Hot Plug Detect, and HDCP status for rapid field diagnosis.
- USB-Powered with Universal Supply — Can be powered by the included supply or any available USB port for maximum installation flexibility.
- Field-Updatable Firmware — Firmware updated via USB port; supports EDIDRead and EDIDWrite commands for custom EDID management.
- Low-Profile Enclosure — 1.5 x 5 x 4.02 inch form factor installs discreetly in racks, cabinets, and confined spaces.
Typical Applications
- AV system commissioning and troubleshooting in corporate conference rooms and boardrooms
- Resolving HDMI handshaking failures between sources and displays in commercial installations
- Integrating legacy HDMI sources into systems using HDBaseT extension
- Education and university classroom AV systems with mixed-generation source devices
- Hospitality AV installations requiring consistent EDID management across multiple rooms
- Residential and commercial 4K HDR home theater and screening room installations
- Field service and maintenance toolkits for AV integrators and technicians
Technical Specifications
| Specification | Value |
|---|---|
| Video Resolutions (HDTV) | 4096x2160 @ 24/25/30/50/60 Hz; 3840x2160 @ 24/25/30/50/60 Hz; 1080p @ 23.98–60 Hz; 1080i, 720p, 576p/i, 480p/i |
| Video Resolutions (VESA) | 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1152x768, 1024x768, 800x600, 640x480 |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR Support | HDR10 and Dolby Vision @ 60 Hz |
| Audio Formats | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X |
| Audio Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Audio Bit Depth | Up to 24-bit |
| Signal Bandwidth | 18 Gbps |
| HDCP | 2.2 Compliant |
| CEC | No |
| Max Cable Distance — UHD @ 60 Hz | Up to 2 m (6 ft) |
| Max Cable Distance — UHD @ 24 Hz | Up to 5 m (16 ft) |
| Max Cable Distance — 1080p @ 60 Hz | Up to 10 m (30 ft) |
| Max Cable Distance — 1080p @ 24 Hz | Up to 15 m (50 ft) |
| Power Consumption | 5.2 W |
| Dimensions — Unit (H x W x D) | 1.5 x 5 x 4.02 in (38 x 127 x 102 mm) |
| Dimensions — Power Supply (H x W x D) | 2.3 x 4.4 x 2.8 in (58.4 x 111.7 x 71.1 mm) |
| Weight | 0.27 kg (0.6 lbs) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20% to 90% non-condensing |
| Certifications | CE, FCC; Power Supply: CE, FCC, cULus, RoHS, CCC, RCM |
| Included Accessories | USB cable, universal power supply, user guide |
Frequently Asked Questions
- Q: What problems does the AT-ETU-SYNC solve?
- The AT-ETU-SYNC addresses EDID mismatches, Hot Plug Detect failures, missing +5V signals, and HDCP handshaking issues that prevent an HDMI source from outputting video to a display or extender. It is also used to ensure legacy sources produce the correct resolution and audio format.
- Q: Can the AT-ETU-SYNC store EDID from a display?
- Yes. The device can capture EDID from a connected downstream display and store it in internal memory. On subsequent connections, it can present that stored EDID to the source even if the display is not present or powered on.
- Q: Does the AT-ETU-SYNC support 4K HDR content?
- Yes. It supports 4K/UHD resolutions up to 4096x2160 at 60 Hz, HDR10, and Dolby Vision at 60 Hz, with an 18 Gbps bandwidth path consistent with HDMI 2.0.
- Q: How is the AT-ETU-SYNC powered?
- It is powered via USB using the included universal power supply. It can also be powered from any available USB port, such as a laptop, making it convenient for on-site troubleshooting without a dedicated power outlet.
- Q: Will the AT-ETU-SYNC help with legacy set-top boxes used in HDBaseT systems?
- Yes. Legacy HDMI sources that do not support the HDMI clock stretching protocol required by HDBaseT extenders can be made compatible by inserting the AT-ETU-SYNC between the source and the HDBaseT transmitter.
- Q: How do I update the firmware on the AT-ETU-SYNC?
- Firmware is updated in the field via the USB port using the firmware file and instructions available on the Atlona support page. The current firmware version for REV B and later hardware is 2.0.6.
- Q: What audio formats does the AT-ETU-SYNC pass through?
- The device passes all HDMI multi-channel audio formats including PCM 2-channel, LPCM 5.1 and 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, and DTS:X.
- Q: Where can I purchase the AT-ETU-SYNC?
- The AT-ETU-SYNC is available from Creation Networks at creationnetworks.net, an authorized Atlona reseller specializing in commercial AV solutions.
